25

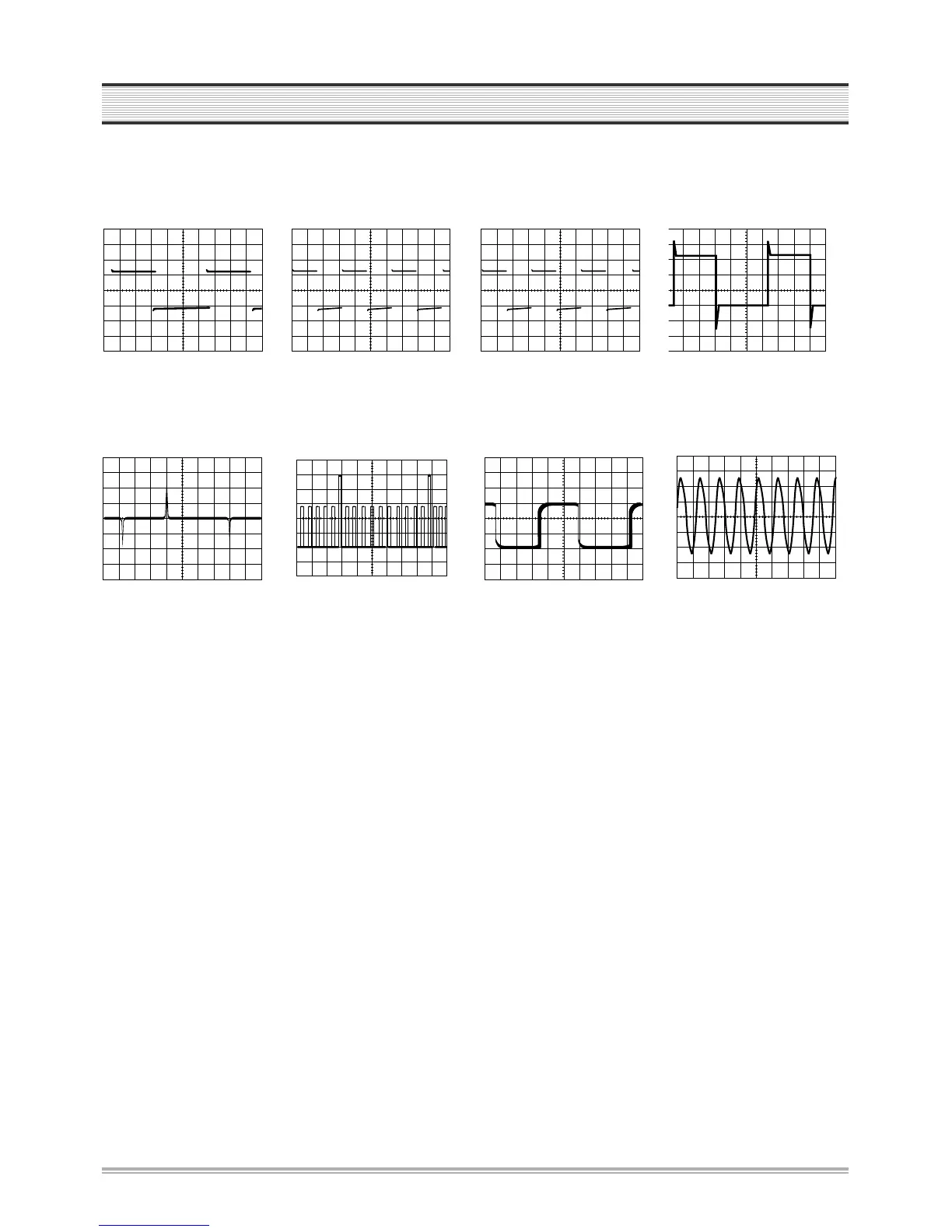

WAVEFORMS
3. SERVO/SYSCON
8
(IC501-18) 5Vp-p
2V/5msec/cm
REC/PLAY
9
(IC501-77) 5Vp-p
2V/5µsec/cm
REC/PLAY
0
(IC501-76) 5Vp-p
2V/5µsec/cm
REC/PLAY
“
(IC501-94) 3Vp-p
1V/5msec/cm
REC
‘
(IC501-97) 4.4Vp-p
1V/5msec/cm
PLAY
+
(IC501-90)25Vp-p&5Vp-p
1V/5msec/cm
REC/PLAY
=
(IC501-87) 2.5Vp-p
1V/0.2msec/cm
REC/PLAY
Q
(IC501-38) 2.6Vp-p
0.5V/0.1µsec/cm
REC/PLAY
