Unit Display and Operation Selector (continued)
REMOTE CONTROL
receiver
This section picks up infrared signals from the remote control unit
(transmitter).
Operation selector
ON position This position is for operating the air conditioner with the wireless
remote control unit.
The selector should normally be set in this position.
OFF position Switch the selector to the OFF position if you are not going to use
the air conditioner for a few days or longer.
The OFF position does not disconnect the power. Use the main
power switch to turn off power completely.
TEST position This position is used only when servicing the air conditioner.
CAUTION
Do not set at the TEST position for normal operation.
OPERATION lamp This lamp lights when the system is in the continuous AUTO,
HEAT, COOL or FAN mode.
STANDBY lamp This lamp lights when the system is warming up for heating and
when the system is defrosting. To keep a constant room
temperature, the air conditioner continues to supply a gentle
breeze when warming up or when the heating operation is
paused by the thermostat.
TIMER lamp This lamp lights when the system is being controlled by the timer.

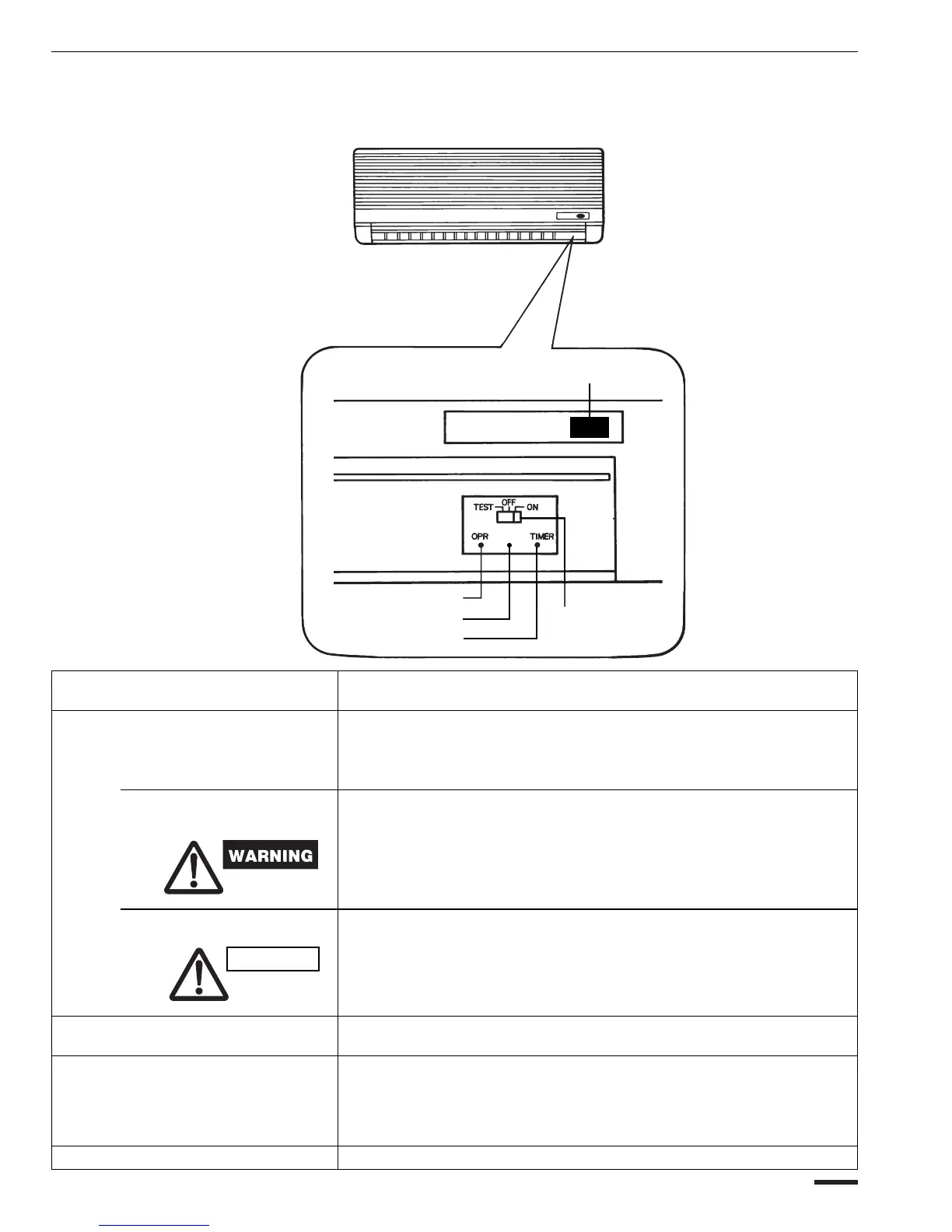

STANDBY
OPERATION lamp
TIMER lamp
Operation selector
REMOTE CONTROL receiver
INDOOR UNIT
STANDBY lamp
7OI-212-07EG
oi212001
