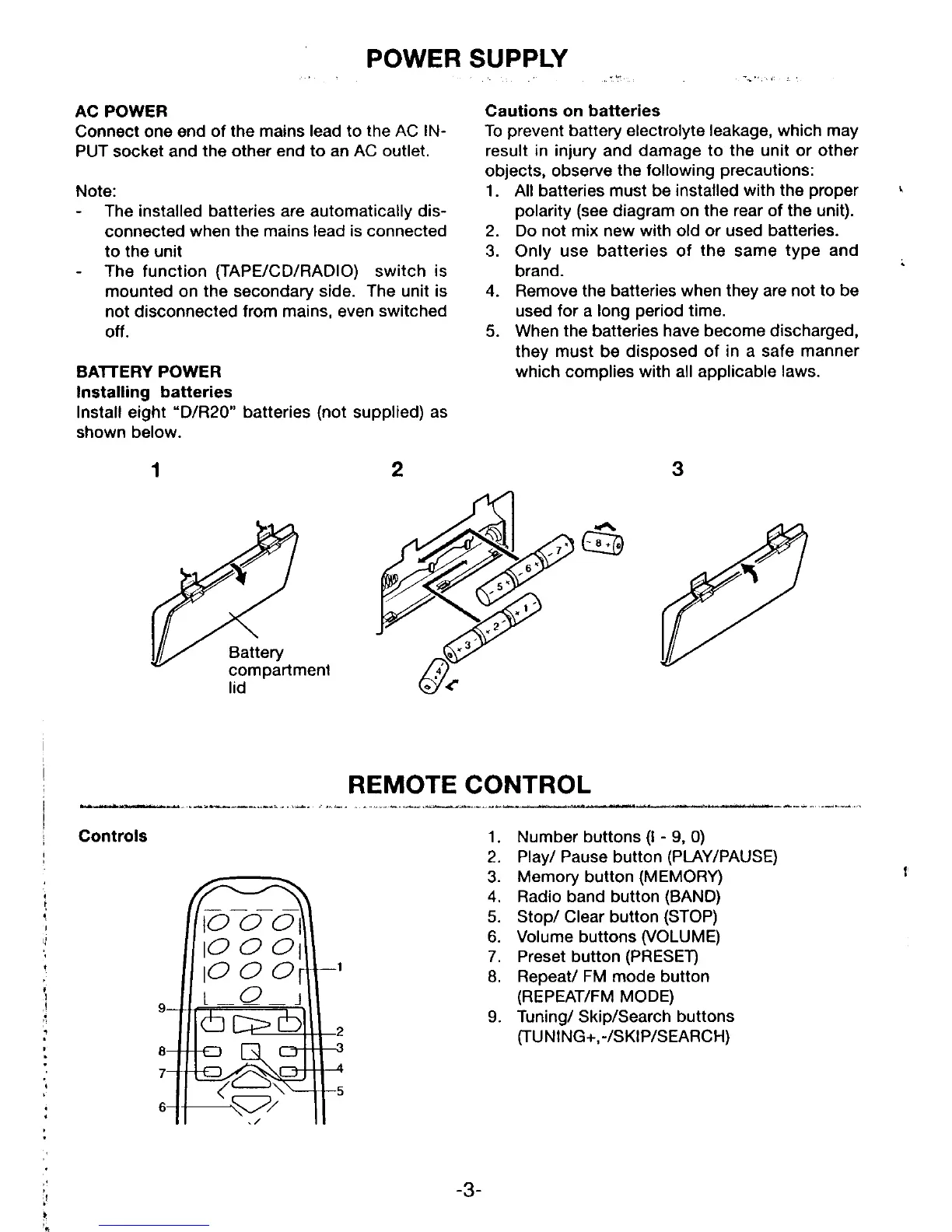

POWER SUPPLY
I
I
AC POWER
Connect one end of the mains lead to the AC lN-
PUT socket and the other end to an AC outlet.
Note:
- The installed batteries are automatically dis-
connected when the mains lead is connected
to the unit
- The function (lAPE/CD/RADIO) switch is
mounted on the secondary side. The unit is
not disconnected from mains, even switched
off.
BAITERY POWER
Installing batteries
Install eight “D/R20” batteries (not supplied) as
shown below.
1
2
&
>
Battery
compartment
lid
,.”
-.,
‘ :
Cautions on batteries
To
prevent battery electrolyte leakage, which may
result in injury and damage to the unit or other
objects, observe the following precautions:
1. All batteries must be installed with the proper $
polarity (see diagram on the rear of the unit).
2. Do not mix new with old or used batteries.
3. Only use batteries of the same type and
brand.
.
4. Remove the batteries when they are not to be
used for a long period time.
5. When the batteries have become discharged,
they must be disposed of in a safe manner
which complies with all applicable laws.
3
REMOTE CONTROL
——. .. ... ... ....... i.. .. . . .. .-.. ——.....——————— ----- ..-.
9
8
7
6
Controls
1.
2.
3.
4.
5.
6.
7.
8.
9.
Number buttons (1-9, O)
Play/ Pause button (PL4Y/PAUSE)
Memory button (MEMORY)
Radio band button (BAND)
Stop/ Clear button (STOP)
Volume buttons (VOLUME)
Preset button (PRESETI
Repeat/ FM mode button
(REPEAT/FM MODE)
Tuning/ Skip/Search buttons
(TUNING+, -/SKlP/SEARCH)
:{
$
