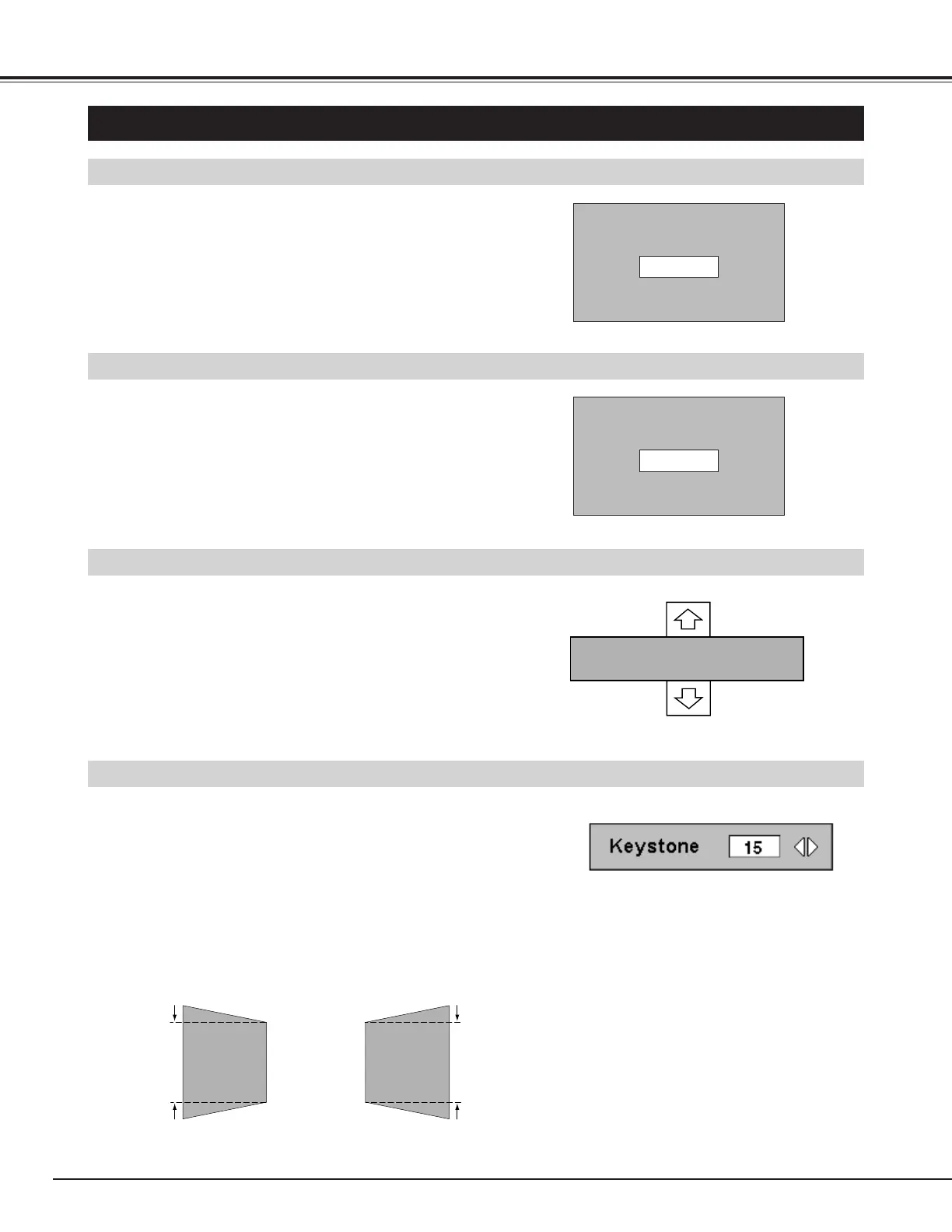

KEYSTONE ADJUSTMENT
1
Press KEYSTONE button on Remote Control Unit or select
Keystone on SETTING menu. (Refer to page 39.) Keystone
dialog box appears.
2
Correct keystone distortion by pressing POINT LEFT/RIGHT
button(s). Press POINT LEFT button to reduce left part of
image, and press POINT RIGHT button to reduce right part.
If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.
ADJUSTING SCREEN
Message disappears after 4 seconds.
Message disappears after 4 seconds.
Zoom
Focus
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
1
Press ZOOM ▲/▼ button on Top Control or on Remote Control
Unit. Message “Zoom” is displayed.
2
Press ZOOM ▲ button to make image larger, and press ZOOM
▼ button to make image smaller.
1
Press FOCUS ▲/▼ button on Top Control or on Remote Control
Unit. Message “Focus” is displayed.
2
Adjust focus of image by pressing FOCUS ▲/▼ button(s) .
BASIC OPERATION
Message disappears after 4 seconds.
LENS SHIFT ADJUSTMENT
1
Press LENS SHIFT button on Top Control or on Remote Control
Unit. Message “Lens shift” is displayed.
2
Press POINT UP button to move image up, press POINT DOWN
button to move image down.
• If you press the KEYSTONE button on Remote
Control Unit once more while the keystone dialog box
is being displayed, the keystone adjustment will be
canceled.
• Keystone function can not be operated when
"NATURAL WIDE" is selected on PICTURE SCREEN
ADJUSTMENT (P38).
• If you select "NATURAL WIDE" after adjusting the
keystone, the adjustment will be canceled.
Reduce the left part with
Point Left button.
Reduce the right part with
Point Right button.
