The air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air
filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in a buildup of internal
heat and adversely affect the life of the projector. Clean the air filters by following the steps below.
CAUTION
Do not operate the projector with the air filters removed. Dust
may accumulate on the LCD panel degrading the picture
quality of the projection mirror. Do not put anything into the air
intake vents. It may result in malfunction of the projector.
Cleaning the Air Filters
RECOMMENDATION
We recommend avoiding dusty/smoky environments when operating
the projector. Usage in these environment may cause a poor image
quality.
When using the projector under dusty or smoky conditions, dust
may accumulate on a lens, LCD panels, or optical elements inside the
projector degrading the quality of a projected image.
When the symptoms above are noticed, contact your authorized dealer
or service station for proper cleaning.

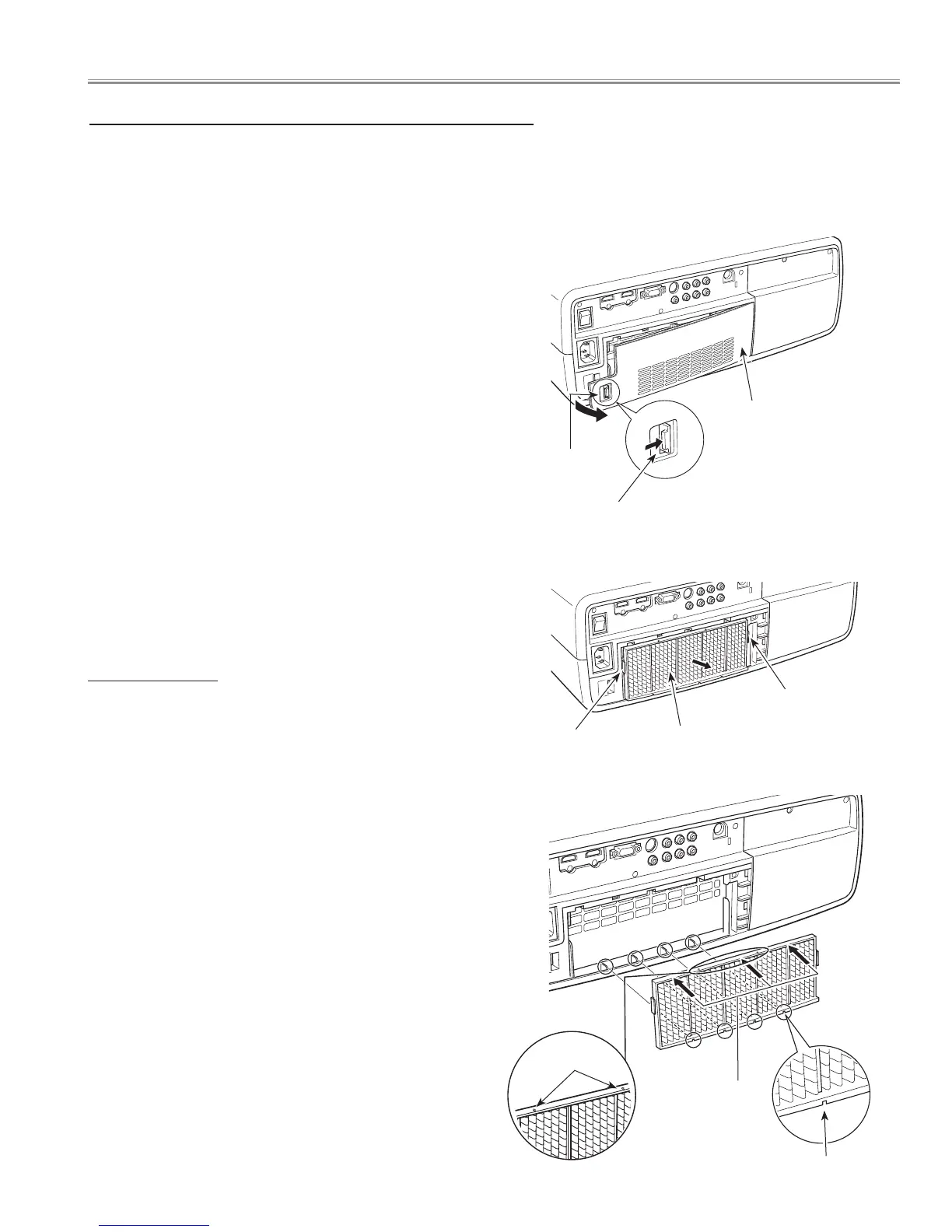

Press the latch and release it. Take off the filter cover.
1
Remove dust and dirt with a soft brush or a vacuum cleaner. Be
careful not to damage the air filter and do not clean it with water.
When the air filter gets dusty and dirty, replace it with a new one.
For ordering the replacement filter, contact your sales dealer.
3
Put the air filter back into the position. Do not push the delicate
filter part. Make sure that the air filter is properly and fully
inserted.
4
Pull out the air filter.
When taking out the air filter, put your fingers on the air filter’s
tabs and pull. Do not try to pull the delicate filter part.
2
Reset the filter counter .
5
Latch
Press the latch and take
off the filter covers.
Tab
Tab
Filter cover
Air filter
When putting back the air
filter, make sure that the
arrows on the filter are facing
towards the projector.
Close the filter cover.
6
Groove
Arrows
Push here when
you are putting
back the air filter.
Maintenance and Cleaning

Sanyo PLV-Z4000 Specifications

General

Projection distance	1.2 - 18.4 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focal length range	22.3 - 45.3 mm
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2
Dimensions (WxDxH)	400 x 346 x 146 mm
Power consumption (typical)	250 W
Noise level	19 dB

Weight and Dimensions

Weight	7500 g
