Sanyo PLV-Z4000 Service Manual

- 83 -

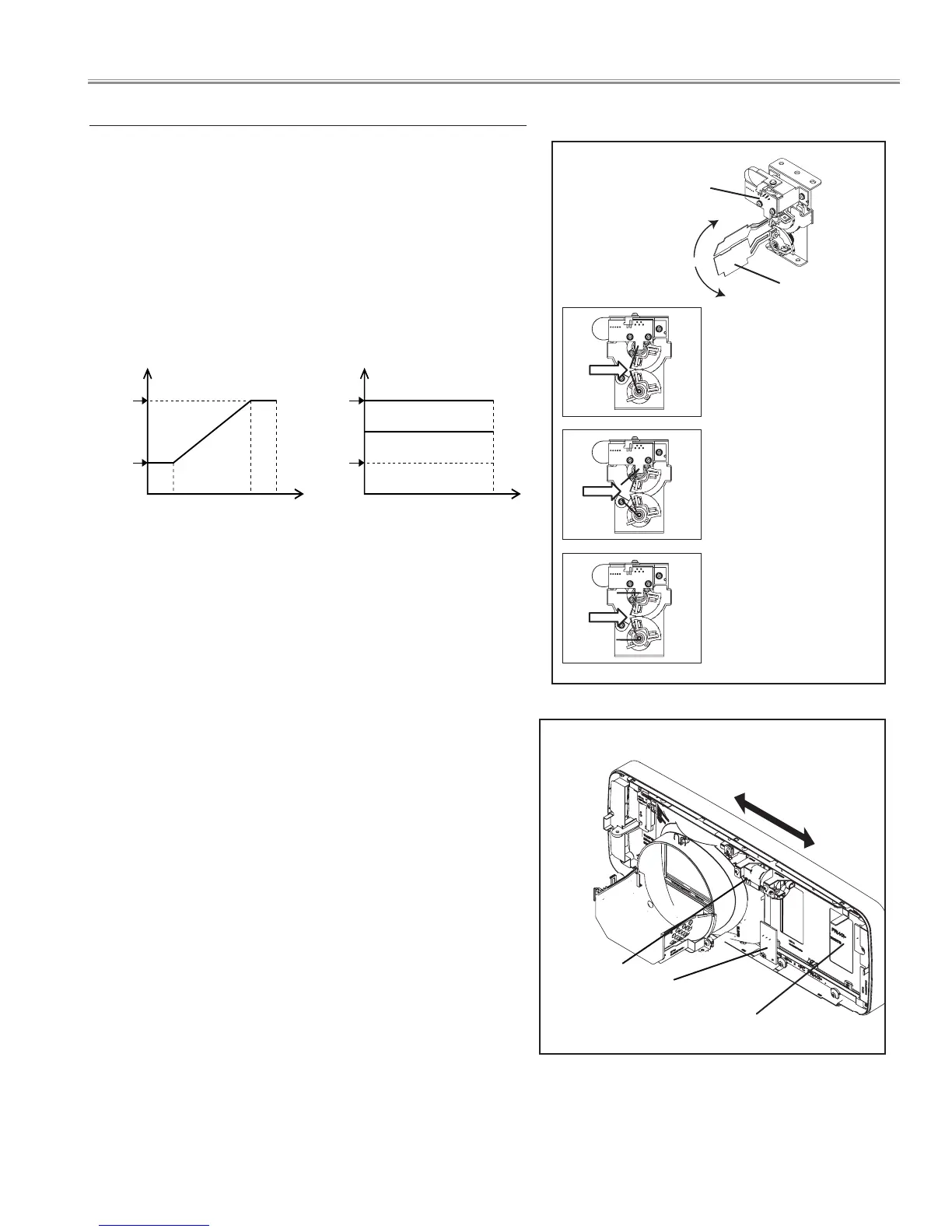

● Description of Motor driving circuit
Lamp Iris Motor
The lamp iris unit is located in the front of lamp. It is controlled by
the IRIS_PWR_ON signal, which is varied based upon the average
luminance level of the input image signal, from pin 143 of IC301.
When the image becomes darker, the lamp iris will be closed, and
when the image becomes brighter, it will be opened.
● Lamp iris unit
DOOR SW_2 BOARD
DOOR SW_1 BOARD
MOTOR
OPEN
CLOSE
● Door motor
CLOSE
(at dark image)
CENTER
OPEN
(at bright image)
WINDOW EXTENSION
Auto mode
APL of input signal
(OPEN)
(CLOSE)
WINDOW EXTENSION
Open mode
Close mode
APL of input signal
(OPEN)
(CLOSE)
Chassis Block Diagrams
IRIS FIN
(variable)
MOTOR
Door Motor
The projector provides 2 door switches. The door switch-1 (SW8801
on DOOR SW_1 board) turns ON, when the slide shutter is opened.
The door switch-2 (SW8811 on DOOR SW_2 board) turns ON, when
the slide shutter is closed.
If the slide shutter is half-open or close, the lamp does not light.
When turning the projector on, the lamp starts light after SW8801
turning on.
If the slide shutter error occurs during opertion, the POWER
indicator will blinks red and the projector will go to stand-by mode
after cooling.

Sanyo PLV-Z4000 Specifications

General

Projection distance	1.2 - 18.4 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focal length range	22.3 - 45.3 mm
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2
Dimensions (WxDxH)	400 x 346 x 146 mm
Power consumption (typical)	250 W
Noise level	19 dB

Weight and Dimensions

Weight	7500 g
