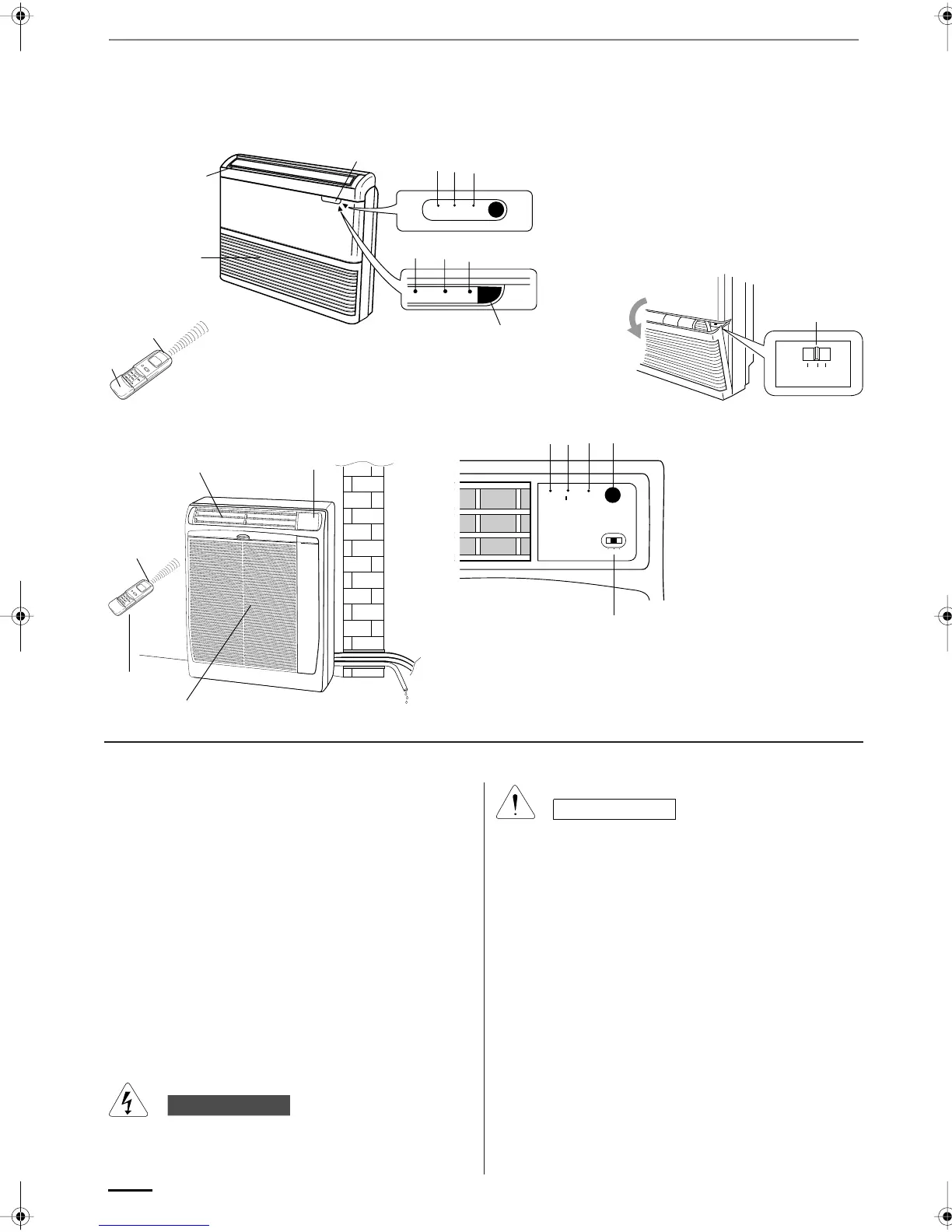

1. Remote control unit.
2. Sensor: Detects the room temperature around the remote
control unit, the air conditioner is controlled accordingly.
3. Air outlet: Conditioned air is blown out of the air conditioner
through the air outlet.
4.
Air intake: Air from the room is drawn into this section and passes
through air filter which removes dust.
5. Remote control receiver: This section picks up infrared
signals from the remote control unit (Transmitter).
6. Operation selector.
ON Position: In this position the air conditioner is operating
and controlled by the remote control unit.
Set the selector normally in this position.
OFF Position: Switch the selector to the off position if you
are not going to use the air conditioner for
a few days or longer.
TIMER
OPERATION
TIMER
OPERATION
9
8
7
5
5
3
4
2
1
TEST
OFF
ON
6
4
1
3
5
2
TEST
OFF
ON
TIMER
OPERATION
9
8
7
5
6
The OFF position does not disconnect the power. Use the
main power switch to turn off power completely.
WARNING
CAUTION
TEST Position: This position is used only for servicing the
air conditioner, so don’t leave the selector in
this position for normal operation.
7. Operation lamp (OPR): This lamp lights when the air
conditioner is running.
8. SERVICE lamp: When a fault occurs in the air conditioner, this
lamp turns on or flashes in combination with the other two
lamps to indicate the type of fault.
9. TIMER lamp: This lamp lights when the system is being
controlled by the timer.
