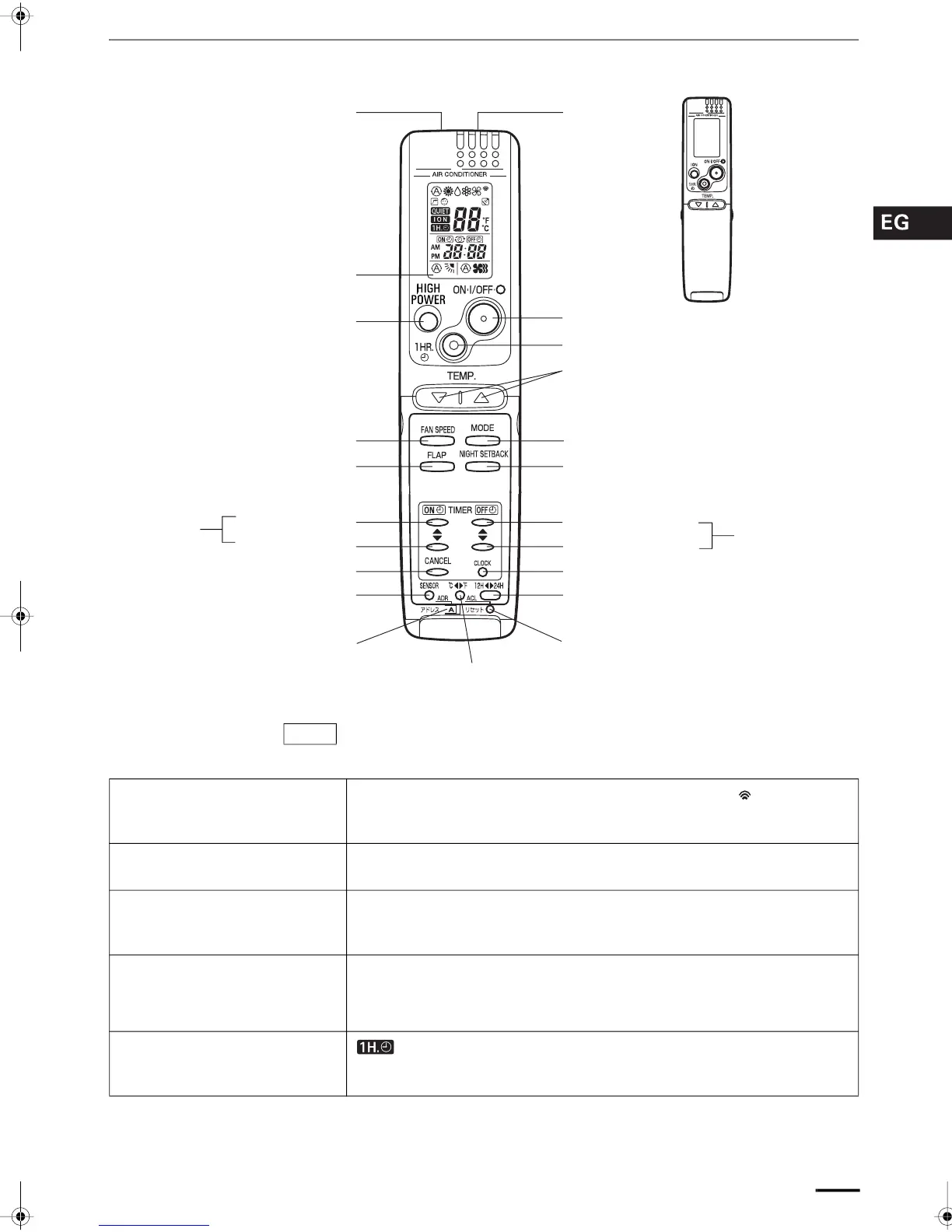

Remote Control Unit
Transmitter
Sensor
(Cover closed)
Display
FAN SPEED selector button
FLAP button
ON TIME
setting
buttons
Return button
Advance button
CANCEL button
SENSOR button
CLOCK button
ACL button
ON/OFF operation button
1 HR. TIMER button
Temperature setting buttons (TEMP.)
MODE selector button
Advance button
NIGHT SETBACK button
HIGH POWER button
OFF TIME
setting
buttons
Return button
ADDRESS switch
Temperature display
selector button
Time display selector button
The illustration above pictures the remote control unit after the cover has
been opened.
NOTE
Transmitter When you press the buttons on the remote control unit, the mark appears
in the display to transmit the setting changes to the receiver in the air
conditioner.
Sensor A temperature sensor inside the remote control unit senses the room
temperature.
Display Information on the operating conditions is displayed while the remote control
unit is switched on. If the unit is turned off, FLAP setting and FAN SPEED
setting are not displayed.
ON/OFF operation button This button is for turning the air conditioner on and off.
1 HR. TIMER button
(1-HOUR OFF TIMER)
: When you press this button, regardless of whether the unit is
operating or stopping, the unit operates for one hour and then shuts
down.
