USING THE AUDIO/VIDEO OUTPUT JACKS
The picture signal being displayed on the TV screen is output through the Monitor
Output Jacks. Use these terminals to record TV broadcasts and for video dubbing from
AV input terminals.

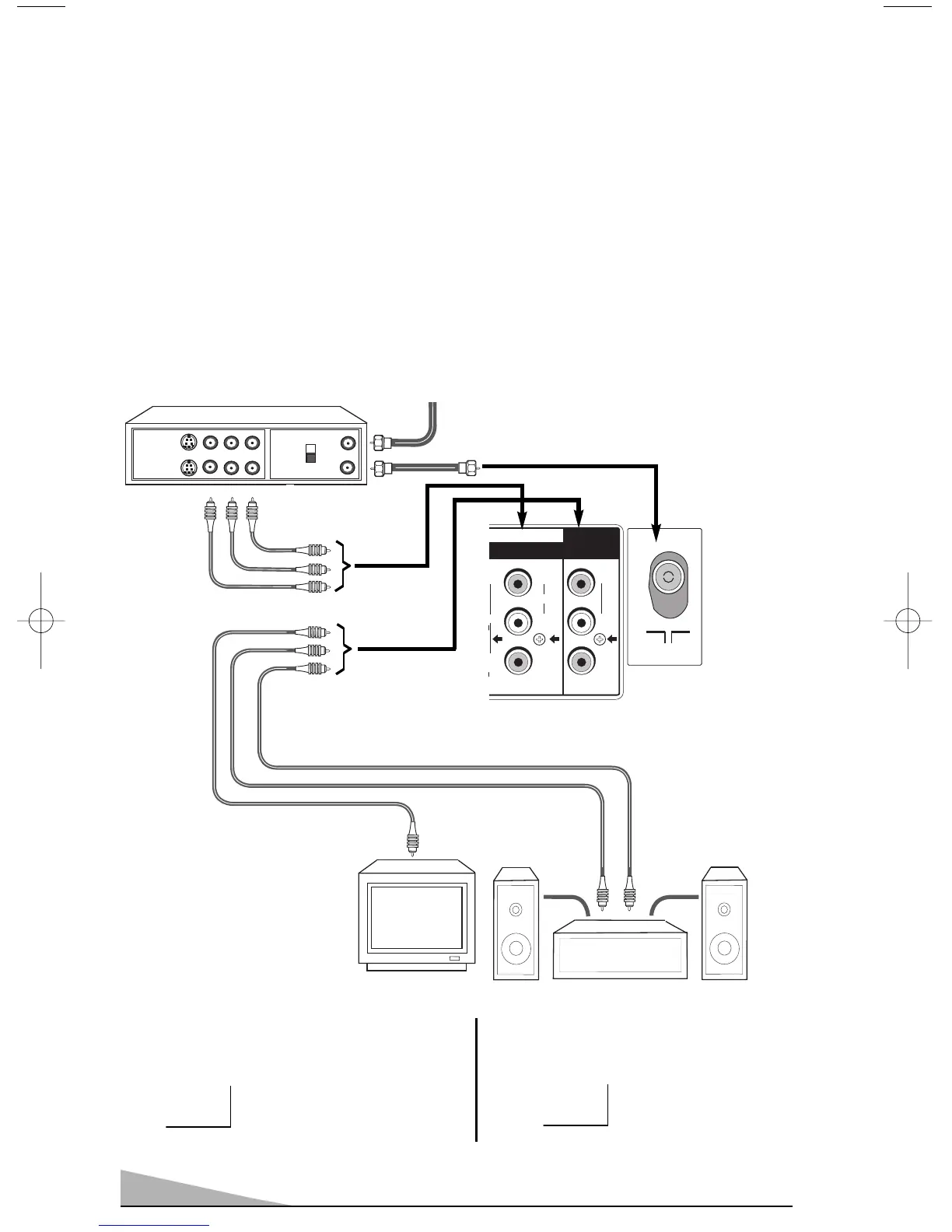

CONNECTING ANOTHER VCR
•
Connect the video output from TV to another VCR’s video input jack (refer to the
VCR owner’s manual).
•
Connect the audio output from TV to another VCR’s audio input jack.
Note: The audio left channel and right channel which were inputted from AV Input
Jacks are mixed, and are outputted from Monaural Audio Monitor Output
Jack.
ANTENNA
TERMINAL
BACK OF TV
BACK OF VCR
CABLE
A/V JACKS
IN
OUT
INPUT
OUTPUT
CH3
CH4
R–AUDIO–L VIDEO
S-VIDEO
STEREO AMPLIFIER
TV/MONITOR
L
R
AUDIO
AV1 INPUT
VIDEO
(MONO)
S-VIDEO
MONITOR
OUT
ANT. 75
■ To dub video from the AV1 Input terminal,
select AV mode by pressing the TV/AV key.
■ To record TV programme, select TV mode
by pressing the TV/AV key.
TV mode
AV1
15
ANTENNA
TERMINAL
A/V JACKS
ANT. 75Ω
Y
MONITOR OUT
AV1/DVD
C
R
C
B
R
L
(MONO)
VIDEO
R
L
INPUT
V
D
E
O
I
OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 26
