7

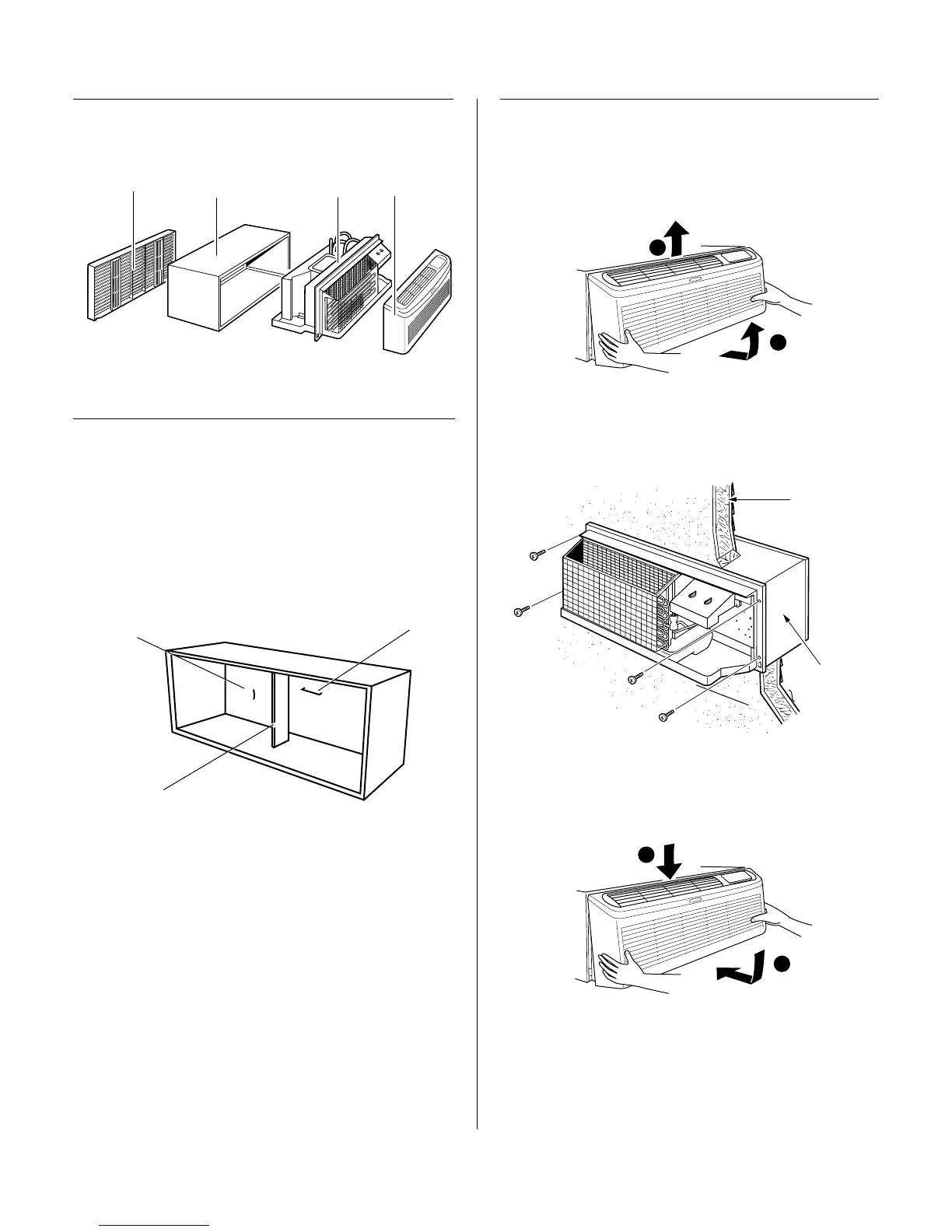

1. NAMES OF PARTS
Rear grille/louver**
Wall case**
Chassis
Front grille*
* Shipped with the chassis
** Check essential components list on chassis
2. WALL CASE AND REAR GRILLE
1) The STK01WC wall case must be properly
installed according to the instructions packed with
the case.
2) Remove the corrugated stiffener and the outdoor
protective panel. Use the slit in the outdoor panel
as a grip and push out.
3) Install the rear grille from the room side according
to the instructions packed with the grille.
Protective panel
Slit
Stiffener
3. INSTALLATION
1) Remove the front grille by pulling out at the bot-
tom to release it, then lift it up to clear the rail
along the chassis top.
2) Slide the chassis into the wall case and secure
with four screws through the chassis flange
holes.
3) Reinstall the front grille by hooking the top over
the rail along the chassis top, then pushing it in
at the bottom.
US STW PTAC 8/8/01 5:34 PM Page 7
