Schlage AL-SERIES - AL Series Specifications; AL Series Certifications; AL Series Door Preparation

Specifications
Handing:
Non-handed.
Door Thickness:
1³⁄₈ to 1⁷⁄₈ (35mm to 48mm) standard.
2 (51mm) optional.
Backset:
2³⁄₄ (70mm) standard. 2³⁄₈ (60mm), 3¾ (95mm) and
5 (127mm) optional.
Front:
Steel. 1⅛˝ x 2¼˝ square corner, beveled, for 2¾˝ backset
standard. Optional 1˝ square corner, 1˝ radius corner,
and non-UL drive-in / round face. For availability with
specific backsets, see page 6.
Lock Chassis:
Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt:
Brass, chrome plated, ½˝ throw, deadlocking on keyed
and exterior functions.
Exposed Trim:
Wrought brass and bronze. Levers are pressure cast zinc,
plated to match finish symbols.
Strike:
ANSI curved lip strike 1¼˝ x 4⅞˝ x 1³⁄₁₆˝ lip to center
standard. Optional strikes, lip lengths and ANSI
wrought strike box available. See page 7.
Cylinder & Keys:
6-pin patented Everest C123 keyway standard with
two nickel silver keys per lock.
Keying Options:
Interchangeable core and Primus
®
high security
cylinders. Master keying, grand master keying,
and construction keying.
Warranty:
Three-year limited.
1
SERIES
AL
Certifications
ANSI
Meets or exceeds A156.2 Series 4000, Grade 2
strength and operational requirements.
Meets A117.1 Accessibility Code.
Federal
Meets FF-H-106C.
California State Reference Code
(Formerly Title 19, California State Fire Marshal Standard)
All levers with returns comply; levers return to within
½˝ of door face.
UL / ULC:
All locks listed for A label single doors, 4´ x 8´.
Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify
Primus 20-500 Series cylinder.

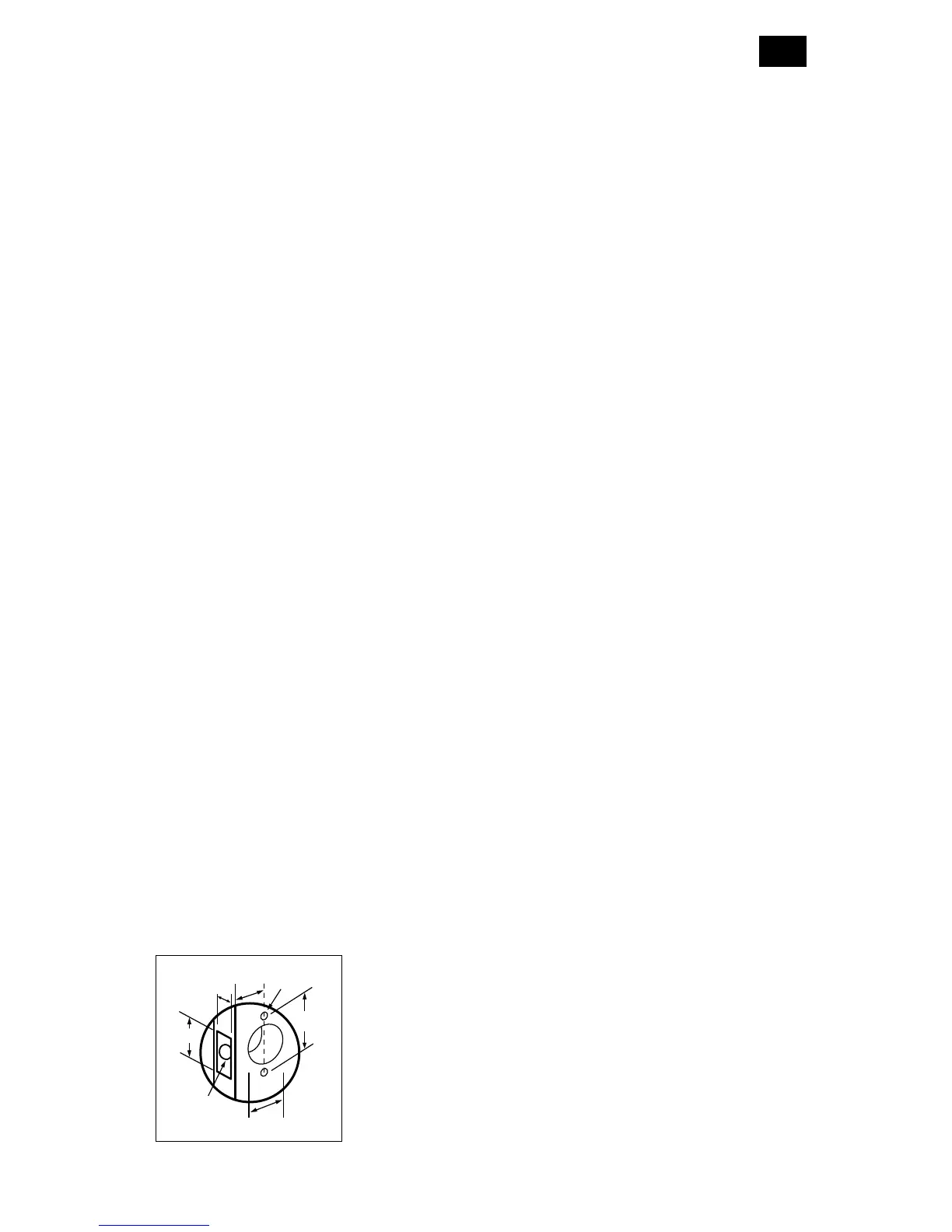

Door Preparation
2-1/4"
57 mm
2-3/4"
70 mm
1" dia.
25 mm
5/16" dia.
8 mm
2-1/8"
54 mm
1-1/8"
29 mm
2-3/4"
70 mm
