Schlage FE695 User Manual

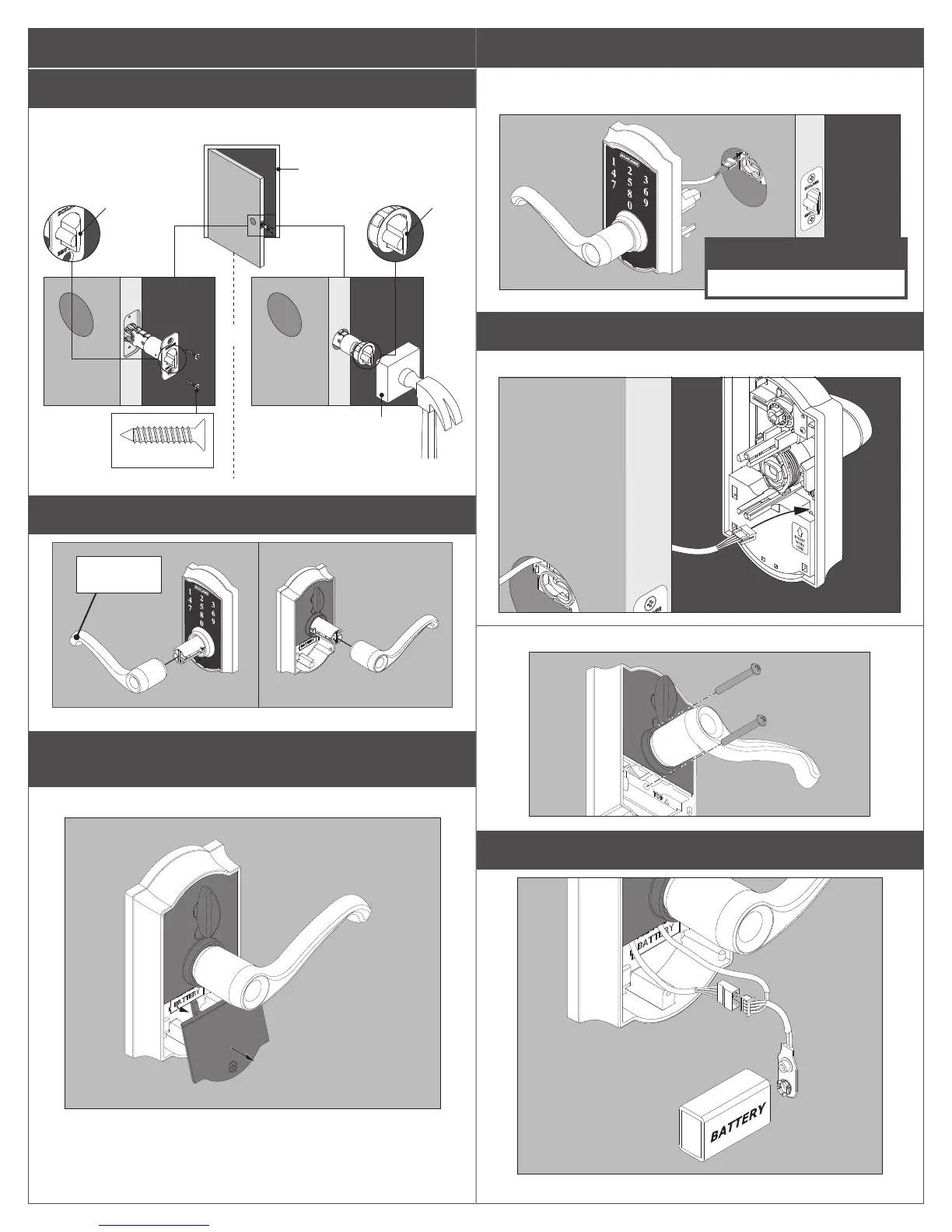

Install Lock
1 Install latch.
Make sure latch angle faces door jamb.
OR
Actual Size
Jamb
Angle
Wood Block
(Not Included)
Angle
2 Press levers onto lever posts.
Tip points
down
3 Remove battery cover from the interior thumbturn
assembly.
Unscrew the cover and li down and out to remove.
4 Install the touchscreen on the outside of door.
Bar should slide smoothly through hole in latch. If not, check door
dimensions.
5 Install the interior lever assembly.
5a Route wire through indicated hole below.
5b Secure interior assembly with screws.
6 Connect wire and battery.
IMPORTANT!
Route wire over the latch.

Schlage FE695 Specifications

General

Lock Type	Electronic
Keyless Entry	Yes
Number of User Codes	19
Material	Metal
Finish	Satin Nickel
Style	Modern
Power Source	Battery
Number of Batteries	4
Key Override	Yes
ANSI Grade	Grade 2
Door Thickness	1-3/8" to 1-3/4"
Keyway	Schlage C
Handing	Reversible
Programming	Keypad
Compatibility	Z-Wave
Backset	2-3/8" or 2-3/4"
Warranty	Limited Lifetime
Battery Type	AA (4)
