Schlage L9000 Series User Manual

9

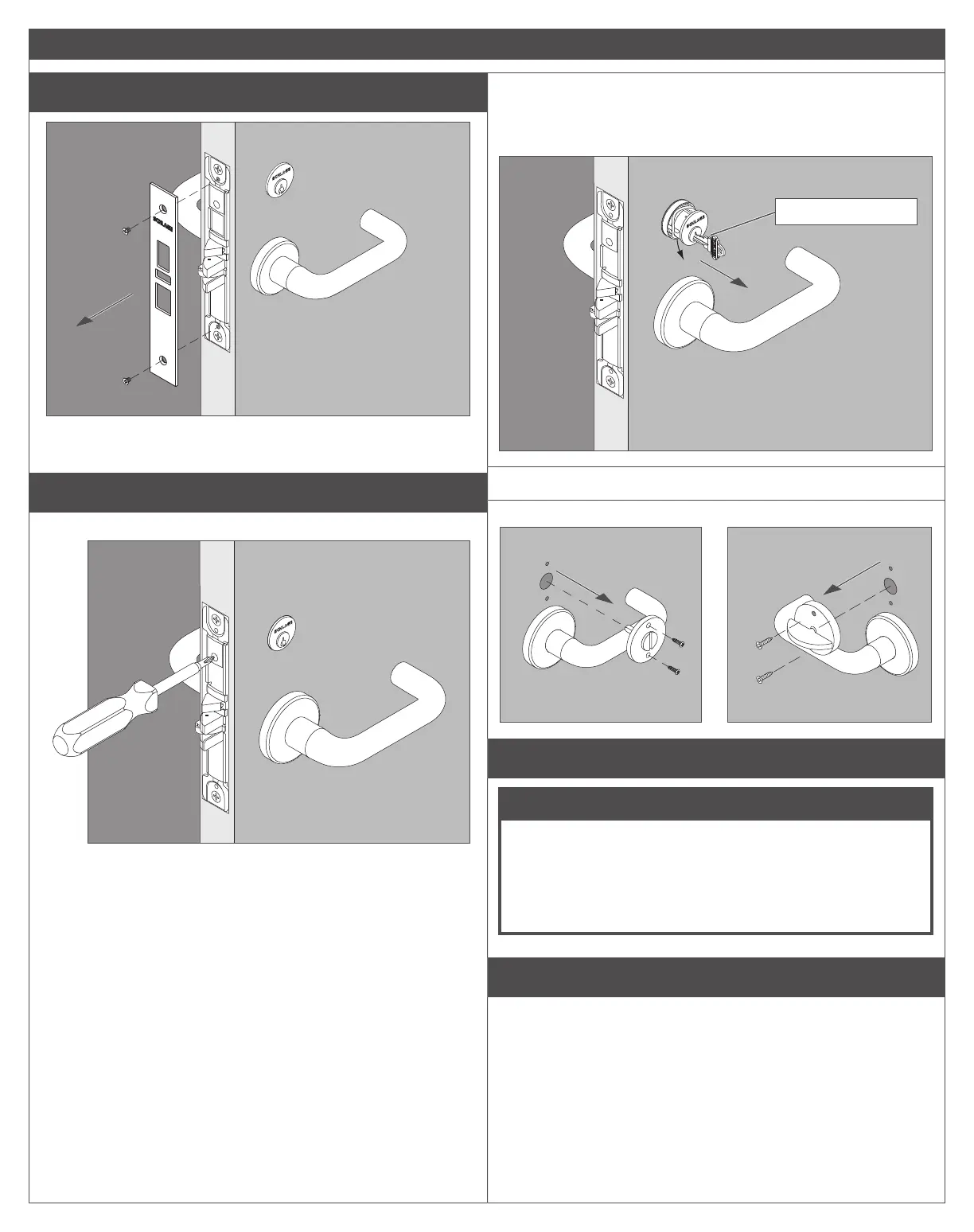

INDICATOR LOCK RETROFIT INSTRUCTIONS
1 Remove armor front.
2 Remove cylinder(s) or thumb turn if applicable.
2a Loosen the cylinder mounting screw.
2b Remove the outside cylinder, if applicable.
Insert the key halfway into the cylinder and rotate cylinder
counterclockwise to remove.
Key inserted halfway
2c Repeat for the inside cylinder, if applicable.
2d Remove inside or outside turns, if applicable.
3 Check door preparation.
IMPORTANT
• To install the indicator trim, additional door preparation may
be required.
• Please refer to the template included in this package.
• Make sure the door is prepared with any necessary holes for
the indicator trim.
4 Complete installation of indicator trim.
Go to page 2, step 9 and follow the instructions
to complete the installation of the indicator trim.

Schlage L9000 Series Specifications

General

Series	L9000
Grade	Grade 1
Backset	2-3/4"
Door Thickness	1-3/4" to 2-1/4"
Lockcase	Steel, zinc dichromated for corrosion resistance
Latchbolt	Stainless steel, 3/4" throw
Deadbolt	1" throw
Handing	Reversible
Finishes	Satin Chrome, Satin Brass
Keyway	Schlage C
Strike	ANSI strike standard. Other strike options available.
