Sebo Automatic X5 User Manual

14

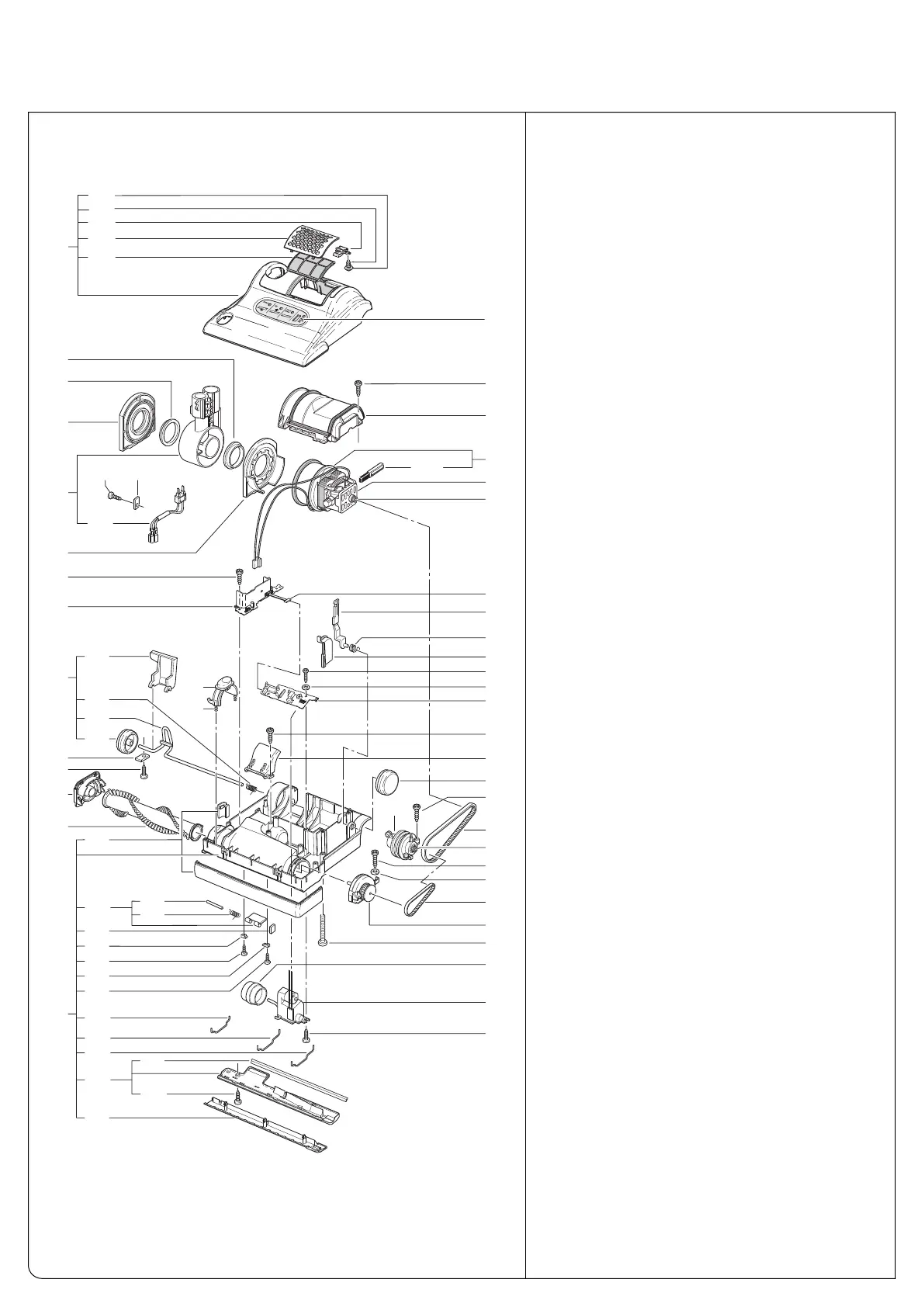

AUTOMATIC X4 SCHEMATIC AND PARTS LIST
#
9570AM X4 Arctic White/Dark Gray Machine
Pos. Part # Description
1
00 5781SE Power head cover, complete (incl. pos. 101-103,
160, 161, 164) - white/gray black
1
01 5712WE Exhaust filter catch - white
1
02 5143 Exhaust filter
103 5711WE Exhaust filter cover - white
1
04 5729UL Swivel neck assembly incl. 105-108, 111 &
5
328OR Slider
105 5176UL Male contact holder
1
06 0102 Screw F 3.9 x 13 DIN 7981
1
07 2494 Cable clamp
108 5101 Swivel neck bearing r. h.
1
09 5480 Swivel neck support r. h.
1
10 5479 Swivel neck support l. h.
111 5717 Swivel neck bearing l. h.
1
12 5848ER Power supply 100-120V
1
13 5205/1 Ribbon cable set
114 5713WE Brush roller release - arctic white
1
15 5103 Spring
116 5051GS Axle, assembly (117-120)
1
17 5059OR Foot pedal - orange
118 5053 Axle
119 5819GS Wheel
1
20 2010 Axle spring
121 2014 Axle clamp
122 5031WE Bearing block right hand- white/gray black
1
23 5010AM Brush roller
124 5005GS Bumper set
125 5155GS Rubbing plate
1
26 5172OR Access door (incl. pos. 127, 128)
1
27 5303 Access door axle
128 5304 Access door spring
129 5154GS Hinge
1
30 0100 Screw C 2.9 x 9.5 DIN 7981
131 0176TL Screw AM 4 x 30 DIN 7985 TL
132 5174GS Pile adjustment wheel
1
33 5060ER Servo motor with gear box
1
34 5411GS Front bottom plate, complete
135 5412GS Rear bottom plate, complete (incl. pos. 136, 139)
136 5400-1 Sealing strip
138 5402 Wire tie
139 0197 Screw M 4 x 12
140 5482GS Chassis cpl. (124-130, 134-139)
141 5468 Vacuum motor 1300 W 120 V (142, 143)
05117S Carbon brush set for vac motor
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5849ER Computer controller 100-240V
148 0107 Screw C 2.9 x 13 DIN 7981
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5464 Sensor w/screws and pulley
152 0104 Screw C 3.9 x 25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5766HG Bearing block l. h., complete
156 0103 Screw C 3.9 x 16 DIN 7981
157 0141 Locking washer
158 5018UL Motor cover
159 5117/1 Sensor pulley
160 0103 Screw C 3.9 x 16 DIN 7981
161 0141 Locking washer
164 5730GS Display - gray black
#9501AM X4 Onyx/Silver Machine Exceptions
100 50783SE Power head cover, complete (incl. pos. 101-103,
160, 161, 164) - onyx/silver
101 5712GS Exhaust filter catch - gray black
103 5711SW Exhaust filter cover - onyx
114 5713SW Brush roller release - onyx
122 5031SW2 Bearing block right hand
164 5730SB Display - silver
#9558AM X4 Red/Gray Machine Exceptions
100 50778SE Power head cover, complete (incl. pos. 101-103,
160, 161, 164) - red/gray black
101 5712GS Exhaust filter catch - gray black
103 5711DR Exhaust filter cover - red
114 5713GS Brush roller release
122 5031DR1 Bearing block right hand - red/gray black
#9577AM X4 Blue/Yellow Machine Exceptions
100 5786AM Power head cover, complete (incl. pos. 101-103,
160, 161, 164) - dark blue/yellow
101 5712DB Exhaust filter catch - dark blue
103 5711DB Exhaust filter cover - dark blue
114 5713DB Brush roller release - dark blue
122 5031DB1 Bearing block right hand - dark blue/gray black
164 5730SG Display - yellow
109
1
08
111
110
104
106
122
123
106
121
116
119
115
114
112
107
105
151
106
154
131
106
158
141
142
143
113
144
148
149
147
106
106
150
119
153
156
157
155
152
133
159
145
146
141a
132
117
140
134
124
127
126
125
129
130
129
130
128
118
120
136
135
139
138
138
138
164
100
161
101
103
102
160
Power Head
#9570AM X4 Arctic White/Dark Gray
#9501AM X4 Onyx/Silver
#9558AM X4 Red/Gray
#9577AM X4 Blue/Yellow

Sebo Automatic X5 Specifications

General

Power control	Electronic
Maximum input power	1300 W
Airflow	50 l/s
Proper use	Home
Vacuum air filtering	-
Type	Cylinder vacuum
Cleaning type	Dry
Dust capacity	3.5 L
Product color	Blue, Yellow
Tube material	The material the tube is made of.
Manual	Yes
Vacuum brushes included	Dusting brush

Weight and Dimensions

Width	370 mm
Weight	7500 g
