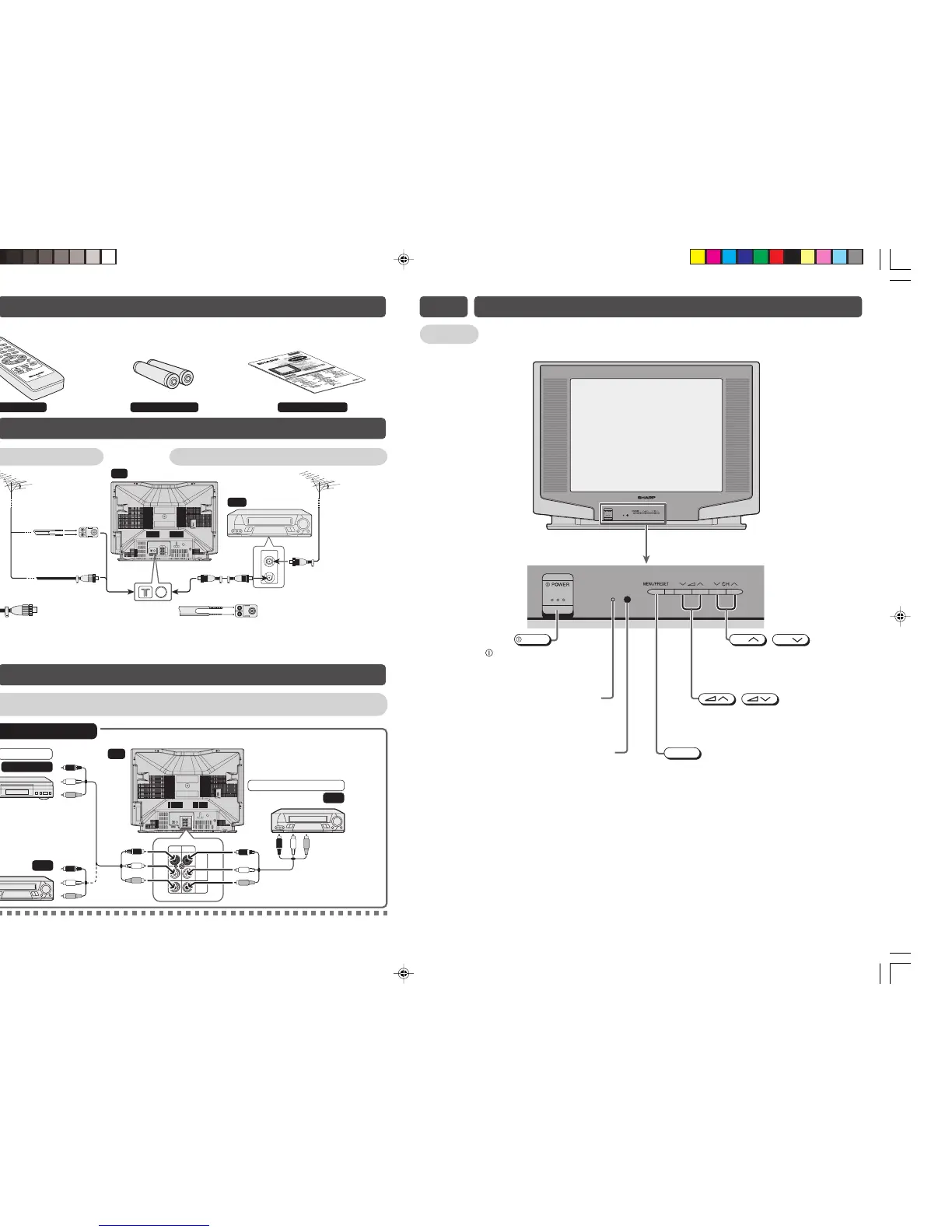

The following accessories are included with this television.
Remote Control Size-AA batteries
Operation manual
• When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.
E2 ACCESSORIES
E3 ANTENNA CONNECTION
If your outdoor antenna uses a 75-ohm coaxial
cable with a standard DIN45325 plug (IEC 169-2),
plug it into the antenna jack at the rear of the set.
Connecting to an antenna
Connecting to an antenna via a VCR
If your outdoor antenna uses a 300-ohm twin-lead
flat feeder, connect a 300-ohm to 75-ohm
impedance converter and plug it into the antenna
jack at the rear of the set.
TV
R
ı
AUDIO
ı
L
VIDEO
AV-1 IN OUT
(MONO)
Standard DIN45325
plug (IEC 169-2)
75-ohm
coaxial cable
(round cable)
(not supplied)
300-ohm
twin-lead
flat feeder
(not supplied)
75-ohm
impedance
converter
(not supplied)
Antenna in
VCR
To antenna
in terminal
To RF out
terminal
Enjoy playback from a video disc player, VCR or other video equipment by connecting them to
this TV set using the Audio/Video in terminals.
Example of rear terminals usage
TV
R
ı
AUDIO
ı
L
VIDEO
AV-1 IN OUT
(MONO)
R
ı
AUDIO
ı
L
VIDEO
AV-1 IN OUT
(MONO)
For Playback
DVD Player
VCR
For Recording and Editing
VCR
Yellow : To VIDEO
White : To AUDIO (L)
Red : To AUDIO (R)
To Audio/Video
out terminals
To Audio/Video
in terminals
To Audio/Video
out terminals
E4 CONNECTING TO OTHER EQUIPMENTS
TV set
Power indicator
Power can be turned on by the
remote control when the indicator
is dimly lit.
MENU/PRESET button
Tunes the channels.
Used for MENU setup.
MENU/PRESET
Channel up/down buttons
Selects the channels.
Tunes or sets the channels.
Infrared sensor window
Receives the infrared wave from
the remote control.
POWER
POWER switch
Turns on and off the
main power.
CH
CH
/
Volume up/down buttons
Adjusts the volume.
Makes adjustments in PRESET
.
/
E5 PART NAMES
21L-FG1RU[EN] 3/8/06, 2:03 PM2
