TV21V-R70MMService Manual21V-R70MMMarketE
CHAPTER 6. WAVEFORMS

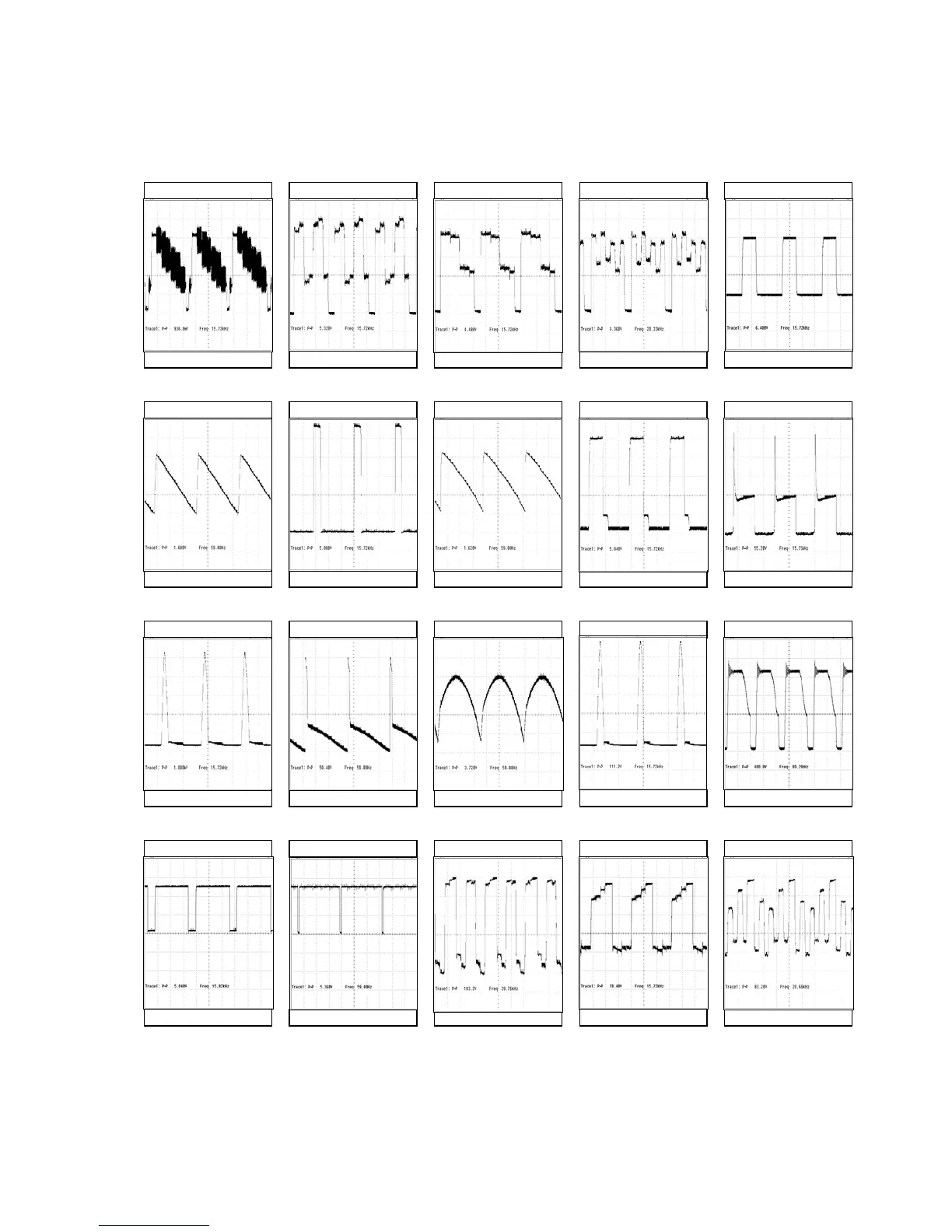

WAVEFORMS
(20) 104.2 Vp-p
Horiz. Rate
(15) 512 Vp-p
-
Horiz. Rate
(17) 5.28 Vp-p
Vert. Rate
(18) 110.0 Vp-p
Horiz. Rate
(19) 86.0 Vp-p
Horiz. Rate
(10) 32.4 Vp-p
Horiz. Rate
(11) 1152 Vp-p
Horiz. Rate
(12) 49.2 Vp-p
Vert. Rate
(13) 3.60 Vp-p
Vert. Rate
(14)
123
.2 Vp-p
Horiz. Rate
(8)1.72Vp-p
Vert. Rate
(9) 5.12 Vp-p
Horiz. Rate
(6) 1.84 Vp-p
Vert. Rate
(7) 5.88. Vp-p
Horiz. Rate
Horiz. Rate Horiz. Rate
(5) 6.4 Vp-p(4) 4.98 Vp-p(1) 0.984 Vp-p
Horiz. Rate
(2) 5.36 Vp-p
Horiz. Rate
(3)4.72Vp-p
Horiz. Rate
(16) 5.2 Vp-p
