Dimension: 140 X 215 mm
(Rear connection
terminals of TV)
DVD
CAMCORDER
TV GAME
VCR
(Front connection
terminals of TV)
Pull open the front door
Yellow : To video input terminal
White : To audio input (L) terminal
Red : To audio input (R) terminal
VIDEO
L-AUDIO-R
(
MONO
)
AV-2 IN
To VIDEO
OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
To VIDEO OUTPUT
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (L)
To VIDEO OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)

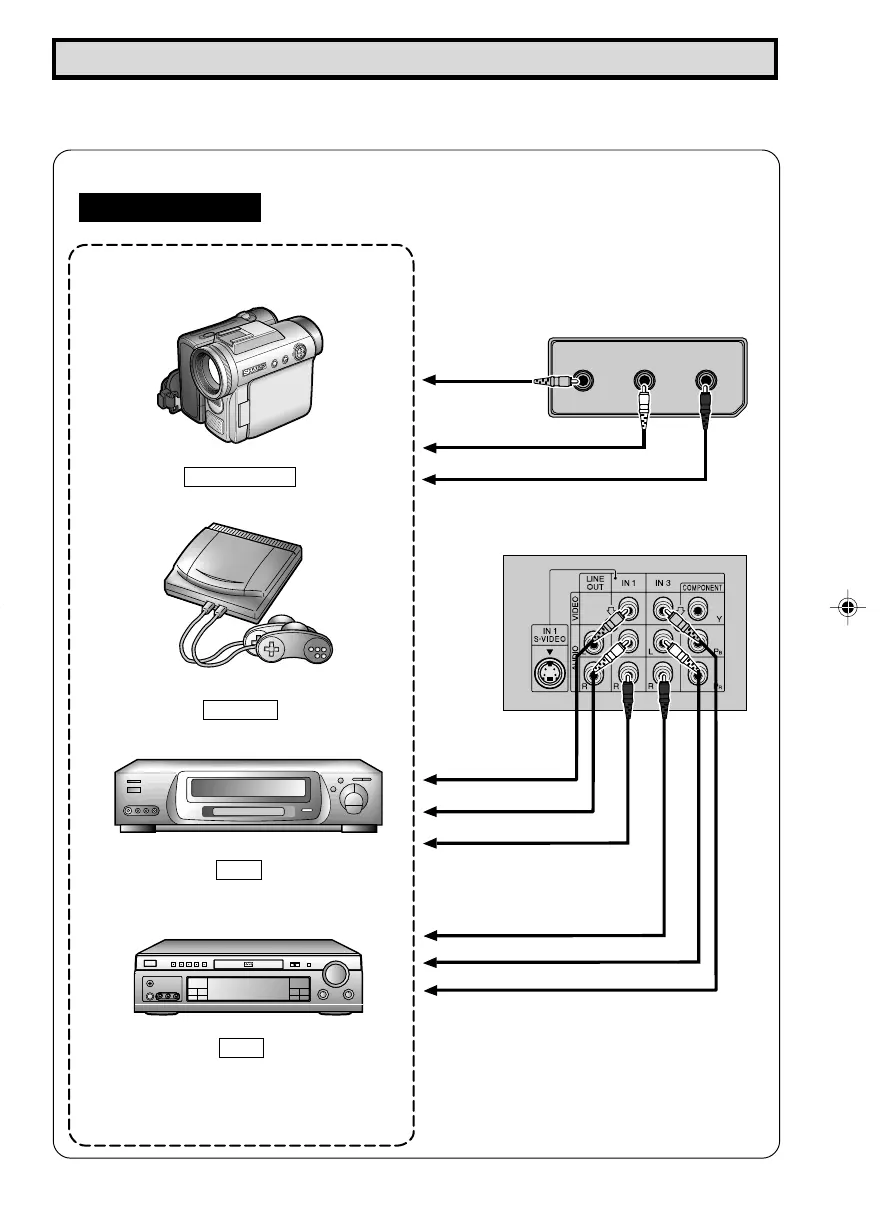

Using the Video and Audio Input Terminals
VIDEO EQUIPMENT
•
Connecting video equipment for playback of video material.
• To view video material from external video equipment, make sure to connect the equipment properly
to the input terminals on the TV set.
Connecting video device equipped with video output terminals
CONNECTIONS
27F543 38
38
To Next Page
