39
Dimension: 140 X 215 mm
(Rear connection
terminals of TV)
DVD
CAMCORDER
TV GAME
VCR
(Front connection
terminals of TV)
Inside the front door
To VIDEO
OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
To VIDEO OUTPUT
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (L)
To VIDEO OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
Yellow : To video input terminal
White : To audio input (L) terminal
Red : To audio input (R) terminal

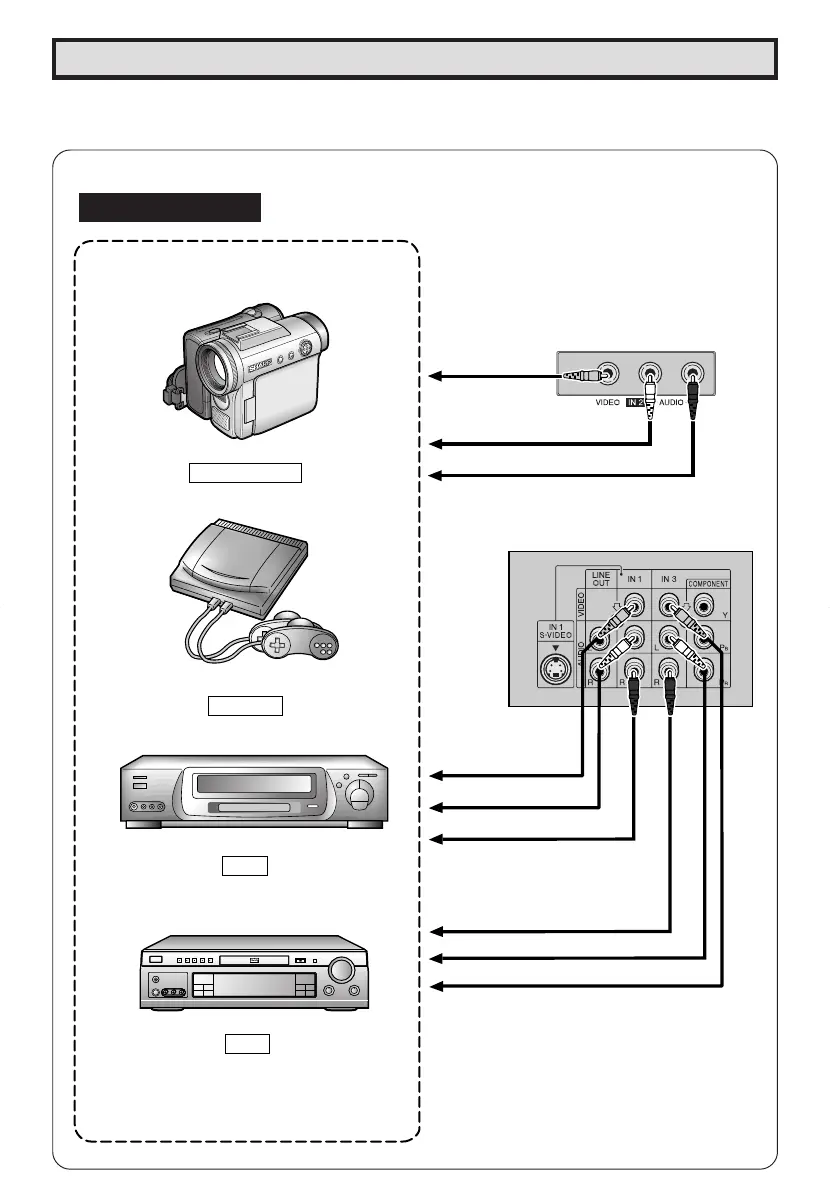

Using the Video and Audio Input Terminals
VIDEO EQUIPMENT
•
Connecting video equipment for playback of video material.
• To view video material from external video equipment, make sure to connect the equipment properly
to the input terminals on the TV set.
Connecting video device equipped with video output terminals
CONNECTIONS
27F541 39
To Next Page
