Sharp 27J-S100 User Manual

- 15 -
27J-S100/180/260
CJ27S10/26
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
ç MARK = X-RAY RELATED PARTS.
This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.

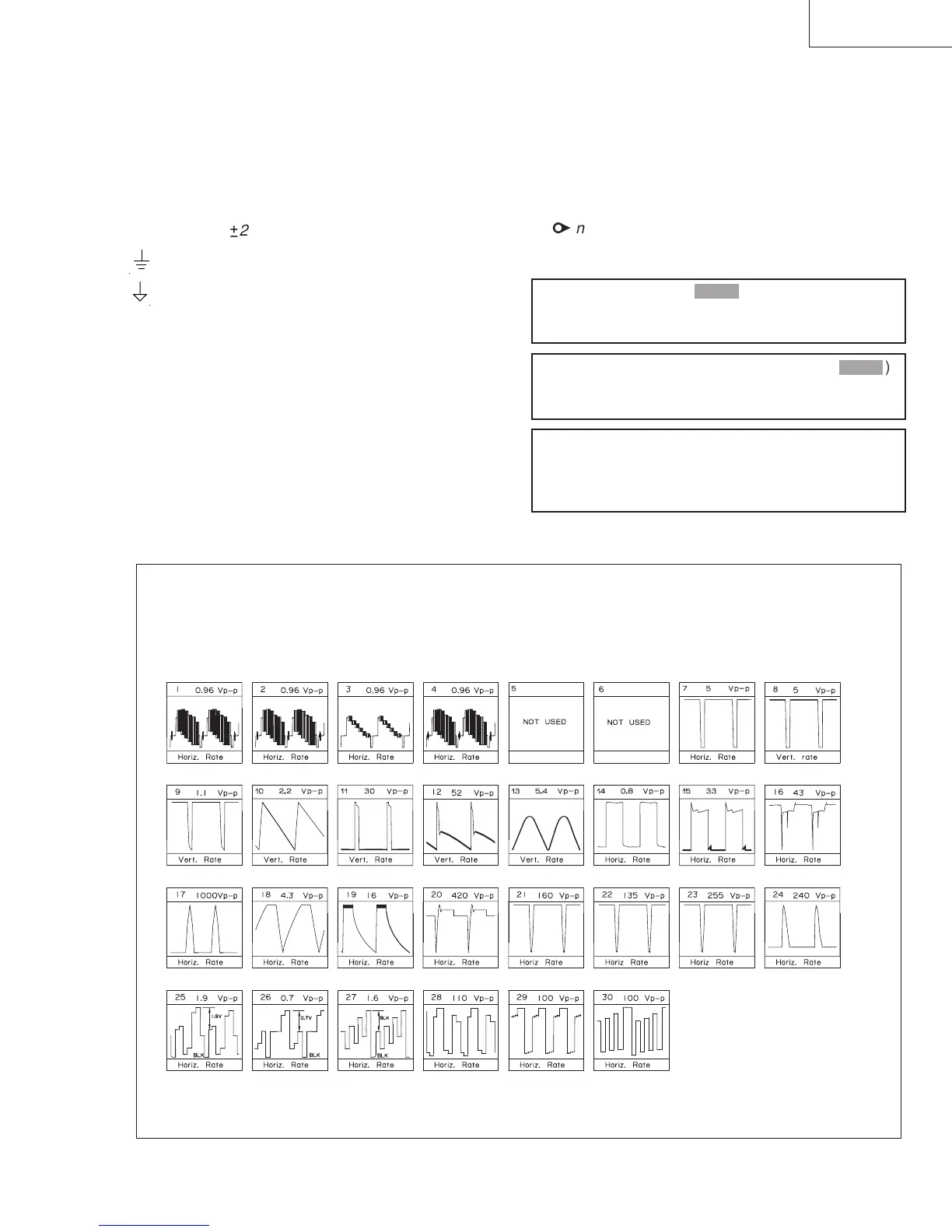

WAVEFORMS
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTE:
1. The unit of resistance "ohm" is omitted (K:1000
ohms, M:1 Meg ohm).
2. All resistors are 1/8 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted P:
µµ F.
4. (G) indicates ; 2% tolerance may be used.
5. Indecates line isolated ground.
6. Indecates hot ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for normal
picture unless otherwise indicated.
2. All voltages measured with 1000 µ V B & W or Color
signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color
bar signal, the tint setting adjusted for proper
color. The wave shapes at the red, green and
blue cathodes of the picture tube depend on
the tint, color level and picture control.
2. : indicates waveform check points (See chart,
waveforms are measured from point
indicated to chassis ground.)
DRGANNES MARQUES-ET HACHRES ( )
: PIECES RELATIVES A LA SECURITE .
MARQUE ç :PIECS RELATIVE AUX RAYONS X.
WAVE FORMS
