A
Y
AP7FHR
6 – 5

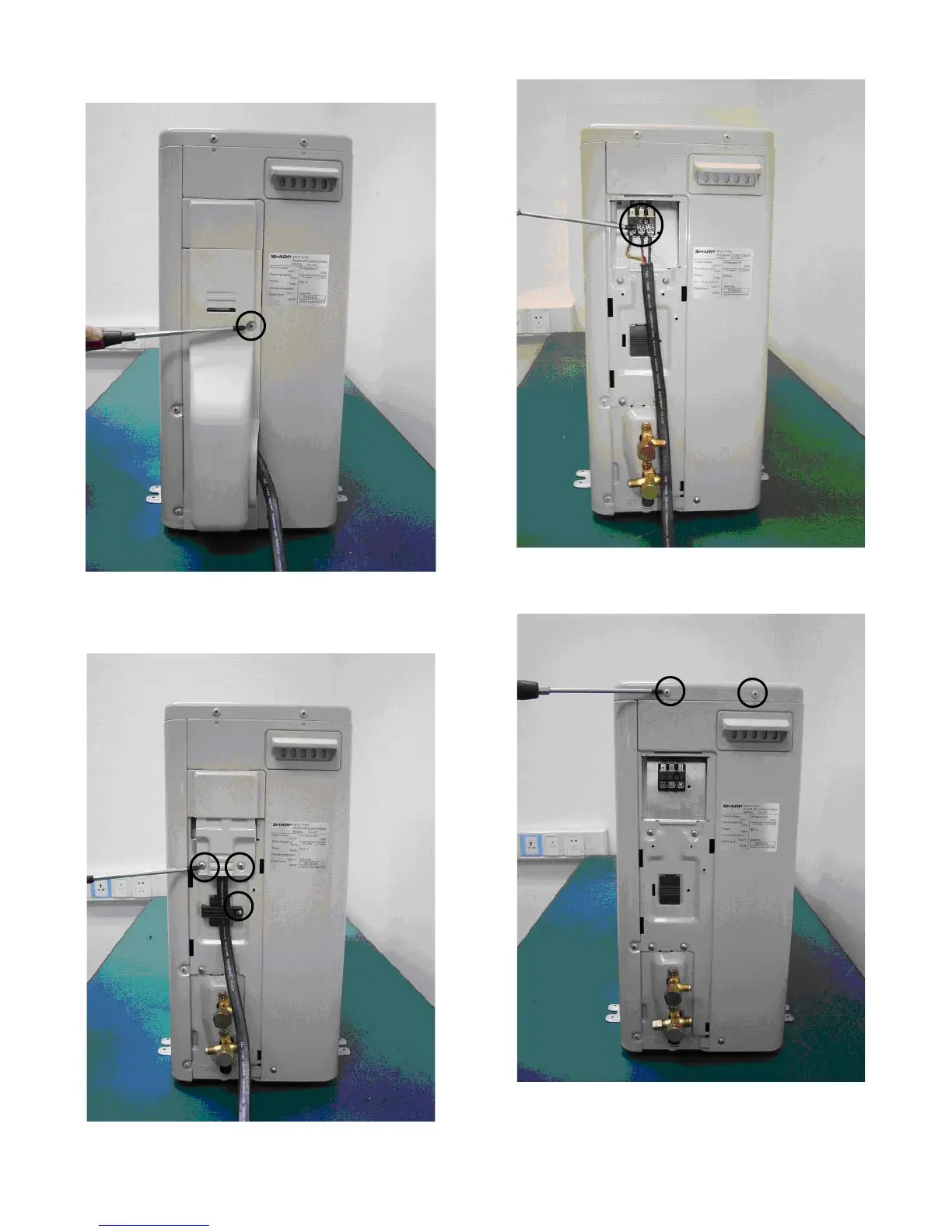

[2] OUTDOOR UNIT
1)
Loose a screw fixing the side cover
.
2)
Loose 2 screws fixing the termi
nal cover and 1 screw fixing the
cord clamp.
Remove terminal cover and co
rd clamp.
3)
Loose the unit-to-unit cord.
4)
Loose 6 screws fixing the top panel.
•
Right side view
22
24
