AEX2M14LR
5 – 1
AEX2M14LR
Service Manual
CHAPTER 5. DISASSEMBLING PROCEDURE
If, in carrying out repairs and modifications, the work requires the use of arc- and flame-producing apparatus, such as welding, brazing and soldering
equipment, this work shall only be started after the rooms have been thoroughly ventilated. While the work is being carried out, the mechanical venti-
lation, if any, shall be kept in constant operation and all windows and doors kept open. In the case of repairs to parts of the refrigerant circuit, it may
be necessary that not only the workman but also a second person shall be present for observation and assistance.
Necessary protective equipment shall be available and, in the case of open flames or arcs, fire extinguishing apparatus shall be ready to hand.
Welding and brazing shall be carried out by qualified workmen.
[1] OUTDOOR UNIT
CAUTION: DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY SERVICING.

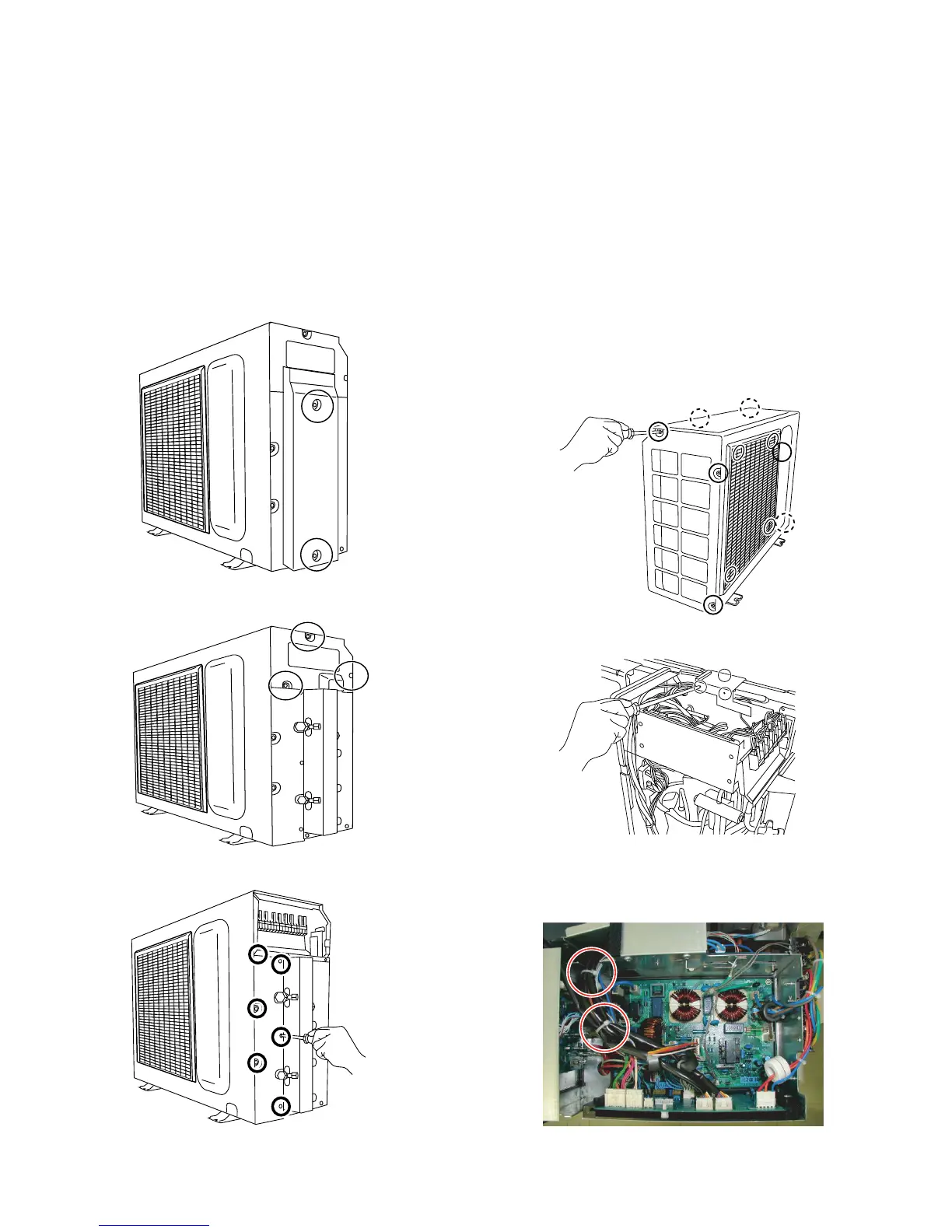

1. PROCEDURE
1. Remove the 2 screws fixing the pipe cover then remove it.
2. Remove the 3 screws fixing the control box cover then remove it.
3. Remove the 6 screws fixing the side cover R then remove it.
4. Remove the 4 screws fixing the fan guard then remove it and
remove the 7 screws fixing the cabinet then remove it.
3 screws are at the left.
2 screws are at the right.
1 screw is at the front.
1 screw is at the rear.
5. Remove the 3 screws fixing the control box angle then remove it.
CAUTION: DISCHARGE ELECTROLYTIC CAPACITOR BEFORE
TOUCHING THIS CAPACITOR OR OTHER COMPO-
NENTS OR WIRINGS.
6. Cut the 2 wire fixing bands.
To Next Page
