Sharp LC-40CFE6241K Service Manual

86
B Upgrade Prompt

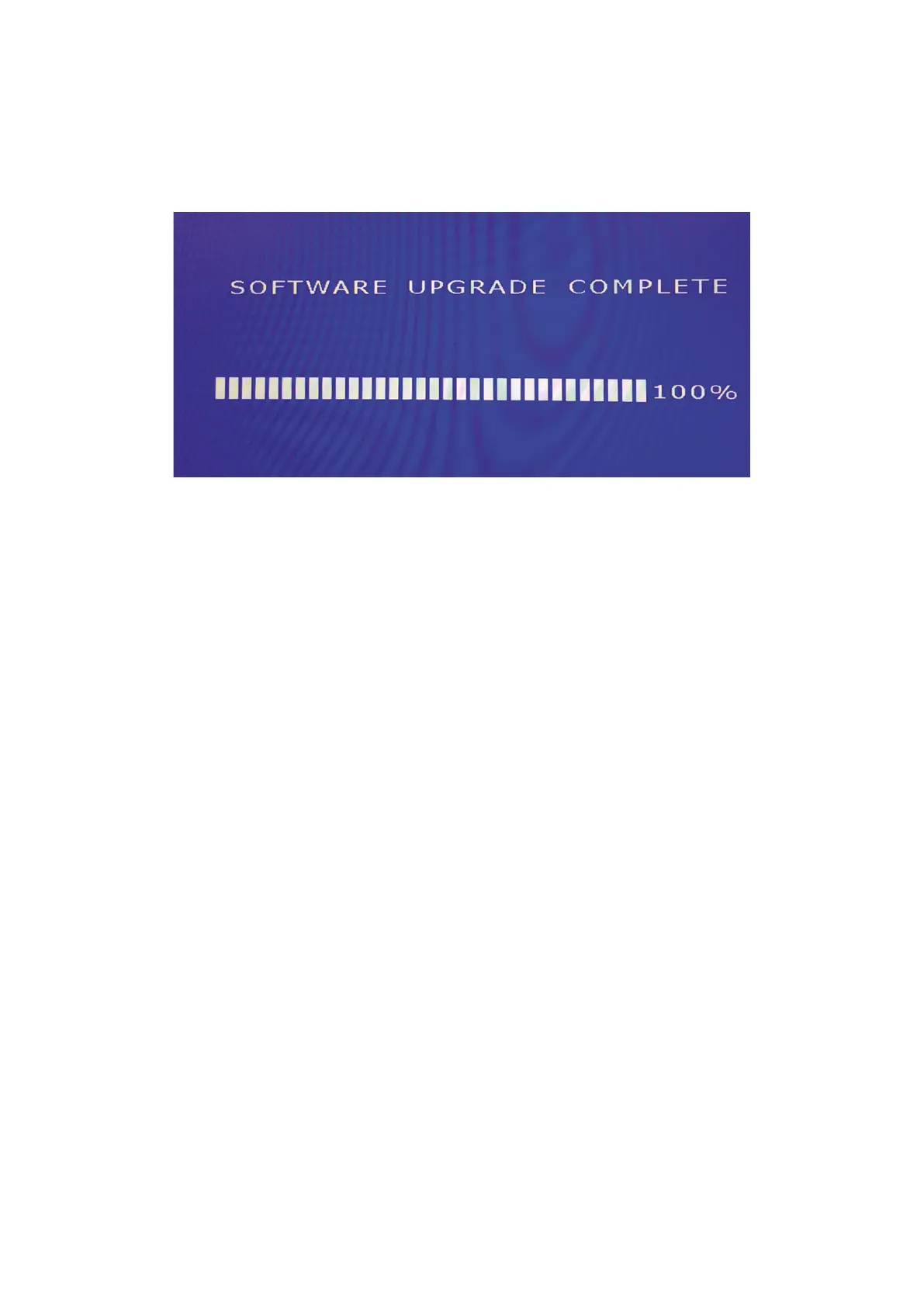

When upgrading, the TV set will light panel according to the panel parameter, and display the
progress bar. If the panel parameter of board matches the panel, you will see the following
image:
C Upgrade Flashing Status
You can judge the upgrade progress by ashing of the remote control LED light.
Upgrading
Red 1000ms Green1000ms alternates, the TV set will turn to Upgrade succeed or Upgrade Failed
status after the upgrading process.
Main program upgrade succeed
Red 250ms Green 250ms alternates, ashing before power o.
Main program upgrade Failed
Red 1750ms Green 250ms alternates, ashing before power o.
• Notes:
• In the upgrade process, as timer software is used to control ashing, situations such as LED
light stuck when creating partition of ash, is normal phenomenon.
6.3 Power On Upgrade
A Operation Procedure
• Power O the TV set
• Copy AllUpgrade_6308XXX.bin to the root directory of your USB memory stick
• Plug the USB device to the USB port
• Power on the TV, if the upgrade le name matches the main chipset, the LED light will
ashing and the upgrade process starting. The TV set won’t auto reboot after nishing the
upgrade process, customer should pull the USB out and power o the TV set manually.
100% indicates the upgrade nished.
TV will auto reboot after user menu upgrading nished.

Sharp LC-40CFE6241K Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	40 \
Display brightness	280 cd/m²
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Supported video modes	1080p
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	100 cm
Motion interpolation technology	Active Motion 400
3D	No
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	66 kWh
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-T, DVB-T2
Video apps	YouTube
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS, Dolby Digital, DTS TruSurround
RMS rated power	8 W
Number of speakers	2
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	Aquos Net+
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Teletext function	-
Audio formats supported	AAC, AC3, EAC3, M4A, MP3, WMA
Image formats supported	BMP, JPEG XR, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	80 W
Power consumption (standby)	0.5 W
Power consumption (typical)	65 W

Weight and Dimensions

Depth (with stand)	202 mm
Width (with stand)	961.8 mm
Height (with stand)	569.1 mm
Weight (with stand)	7600 g
Depth (without stand)	67.1 mm
Width (without stand)	916.8 mm
Height (without stand)	532.9 mm
Weight (without stand)	7300 g
