5.4.3 W/B ADJUST

This page only for current source White Balance Adjustment. Dif-

ferent source may have dierent values. There are Warm, Cool,Nor-

mal modes and save every seperate source. We can change the

R-GAIN, G-GAIN, B-GAIN, R-OFFSET, G-OFFSET, B-OFFSET.

Source: Change input source

WB Mode: Select White Balance mode

[WB]R-Gain, [WB]G-Gain, [WB]B-Gain:

Set the R, G, B White Balance Gain

[WB]R-Oset, [WB]G-Oset, [WB]B-Oset:

Set the R, G, B White Balance Oset

Reset WB Data: Reset the white balance data to default

Copy to all soure: Apply white balance setting to all soure

5.4.4 OVERSCAN

It’s for adjusting the over scan of picture.

5.4.5 PQ ADVANCED

Change these setting will change register for PQ. Suggest do not

change these setting.

5.5 SOUND SETTING

5.5.1 SOURCE

Change input source.

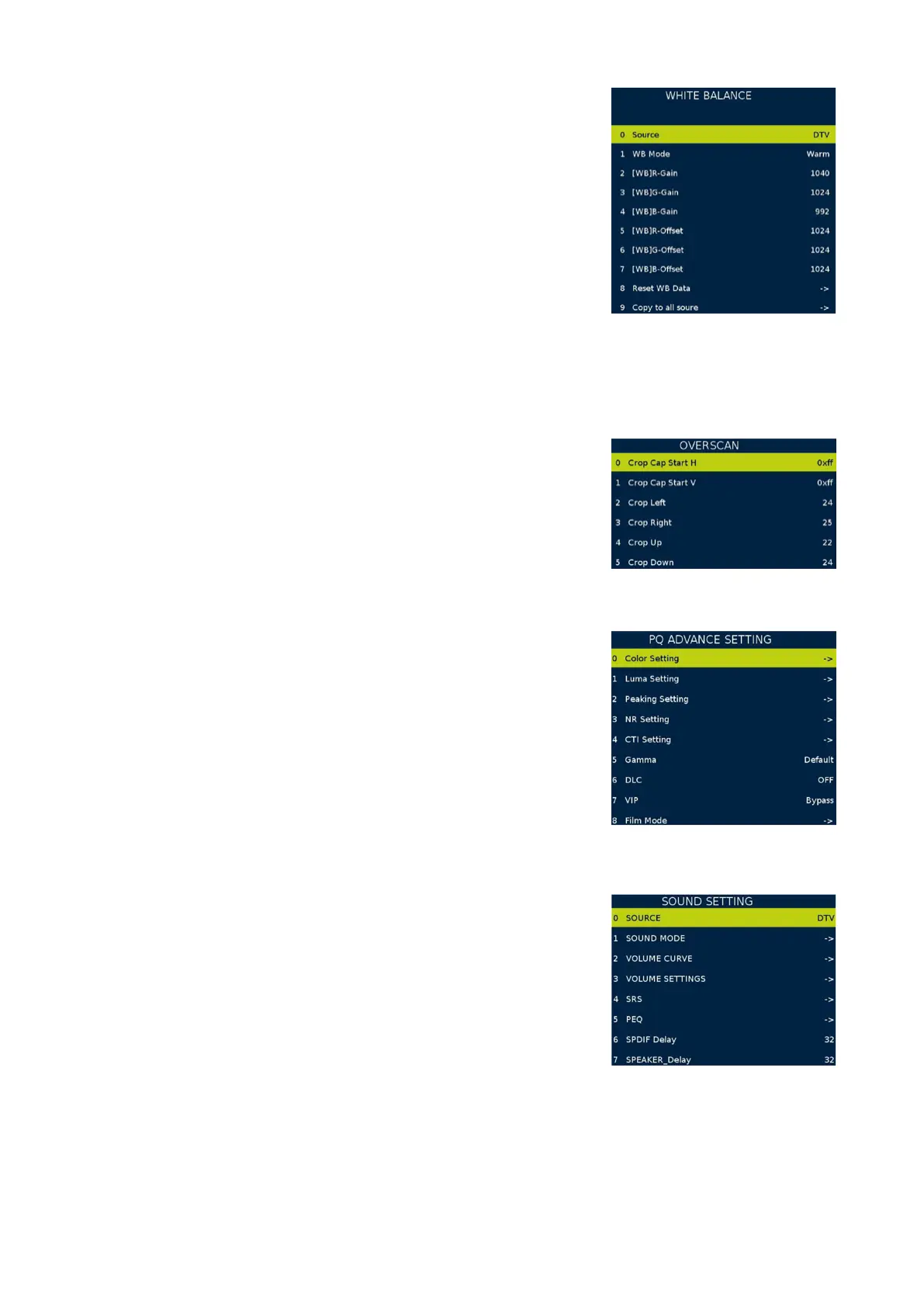

Picture 6 White Ballance

Picture 7 Overscan

Picture 8 PQ Advanced

Picture 9 Sound Setting
