8

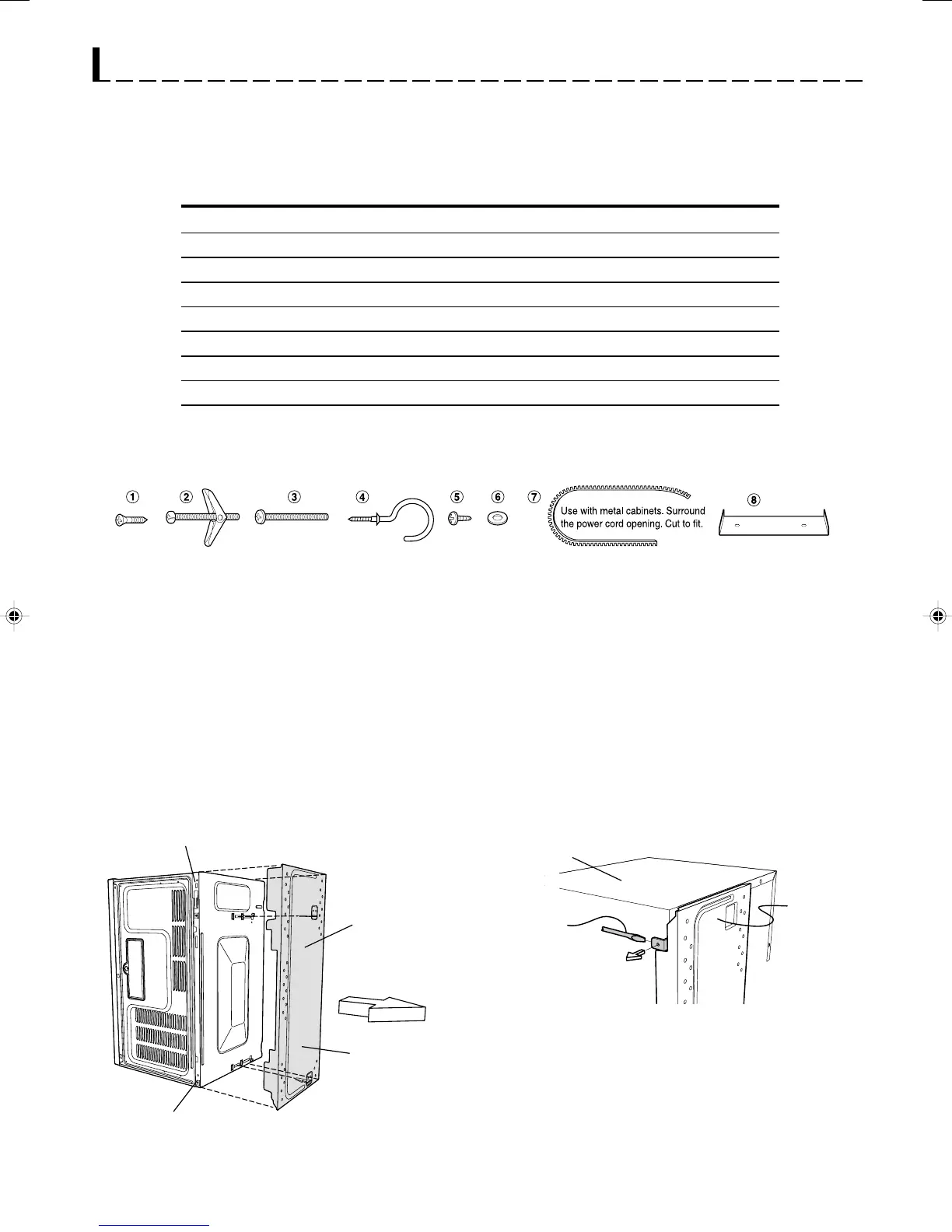

UNPACKING AND INSTALLATION INSTRUCTIONS
1. Turn oven on the side. See Figure 4.
2. Follow steps (A)-(D) to remove mounting plate from the back of the oven as shown in Figure 4.
(A) Release mounting plate by pulling out the lever that is on the bottom of the oven. See Figure 5.
(B) When lever is out, pull that side of the mounting plate away from the oven. See Figure 4.
(C) Repeat step (A) on other side.
(D) Repeat step (B) on other side.
6 PREPARATION OF THE OVEN
Figure 4
Figure 3
Parts shown not to common scale.
ITEM NAME QUANTITY PART CODE
1 Wood Screw 5 X 30 mm 6 XTSSD50P35000
2 Toggle Bolt with nuts #10 - 24 X 50 mm 4 LX-BZ0195WRE0
3 Top Cabinet Screw 5 X 60 mm 2 XBRSD50P60000
4 Power Cord Hanger 1 LX-MZB001MRE0
5 Tapping Screw 4 x 12 mm 3 XOTSD40P12000
6 Flat Washer 30 mm diameter 2 XWHSD50-16300
7 Grommet 1 LBSHC0040MRE0
8 Scale Plate 2 LANG-B003MRP0
The INSTALLATION HARDWARE items 1 - 7 are in a small bag. Item 8 is packed separately. All items are in a
small carton packed below the oven.
5 INSTALLATION HARDWARE
(C)
(D)
(B)
(A)
Figure 5
Use screwdriver to
assist in releasing
mounting plate.
Mounting Plate
Bottom of
Microwave
(A)
OTC/1200,1201#B298 11/6 11/7/01, 10:32 AM8
