36
R-1850
R-1851
around door with an approved microwave survey meter.
(Refer to Microwave Measurement Procedure.)
Note: The door on a microwave oven is designed to
act as an electronic seal preventing the leakage
of microwave energy from oven cavity during
cook cycle. This function does not require that
door be air-tight, moisture (condensation)-tight
or light-tight. Therefore, occasional appearance
of moisture, light or sensing of gentle warm air
movement around oven door is not abnormal
and do not of themselves, indicate a leakage of
microwave energy from oven cavity.
Remove door assembly, refer to "Door Replacement".
Replacement of door components are as follows:
1. Place door assembly on a soft cloth with latches facing
up.
Note: As the engaging part of choke cover and door panel
are provided at 17 places, do not force any particular
part.
CHOKE COVER
2. Insert an putty knife (thickness of about 0.5mm) into the
gap between the choke cover and door panel and
between the choke cover and the door frame as shown
Figure C-3 to free engaging parts.
3. Try the principles of the lever and lift up the choke cover
by inserting a putty knife in order shown in Figure C-3.
4. Now choke cover is free from door panel and door frame.
DOOR FRAME
5. Remove six (6) screws holding the door panel to the door
frame assembly.
6. Release the door frame assembly from the door panel.
7. Now, door frame assembly is free.
LATCH SPRING, LATCH HEAD AND DOOR PANEL
8. Lease the latch spring from the tab of the latch head and
tab of the door panel.
9. Release the latch head from the door panel.
10.Now, the latch spring, latch head and door panel are free.
DOOR DISASSEMBLY

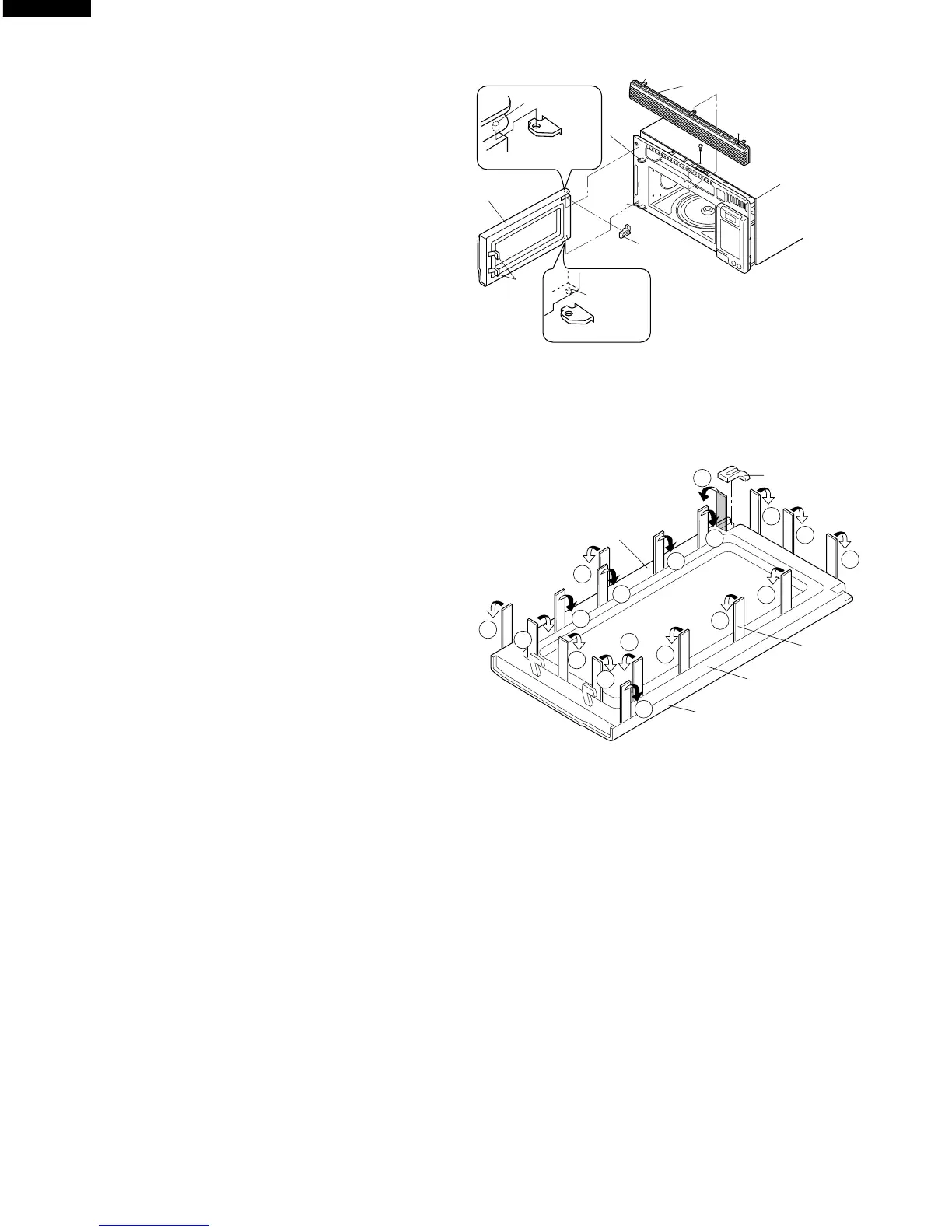

Figure C-2. Door Replacement and adjustment
RE-INSTALL
RE-INSTALL
Lower Door
Hinge Pin
Upper Door
Hinge Pin
Upper
Oven
Hinge
Lower
Oven
Hinge
Door
Assembly
Door
Stopper
Latch
Heads
Tab
Hood Exhaust Louver
Tab
17
16
15
14
1
2
3
5
6
7
8
9
10
11
12
13
A
4
Choke Cover
Door stopper
Choke Cover
Door Frame
Putty Knife
Bent
Figure C-3. Door Disassembly
DOOR GLASS FRONT
11.Remove the glass stopper from the door frame.
12.Release the door glass front from the long tab of the door
frame.
13.Now, the door glass front is free.
