E – 3
1. Remove all packing materials from the oven cavity. Check the unit for any damage, such as a
misaligned door, damaged gaskets around the door or dents inside the oven cavity or on the
door. If there is any damage, please do not operate the oven until it has been checked by a
SERVICE CENTRE APPROVED BY SHARP and repaired, if necessary.
2. Accessories provided
1) Turntable tray
2) Roller stay
3) Cook book (2)
4) Operation manual
3. Locate the roller stay in the centre of the
oven, then fit the turntable on the roller
stay.
Make sure the turntable and roller stay are
centrally located and locked together.
NEVER OPERATE THE OVEN WITHOUT
THE ROLLER STAY AND TURNTABLE.
4. The oven should not be installed in any
area where excessive heat and steam are
generated, for example, next to a conven-
tional oven unit.
The oven should be installed so as not to block ventillation openings.
Allow at least 15 cm on the top of the oven for free air space.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine
or personal injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage must be single phase 220V, 50Hz.
INSTALLATION INSTRUCTIONS
Turntable
Roller Stay

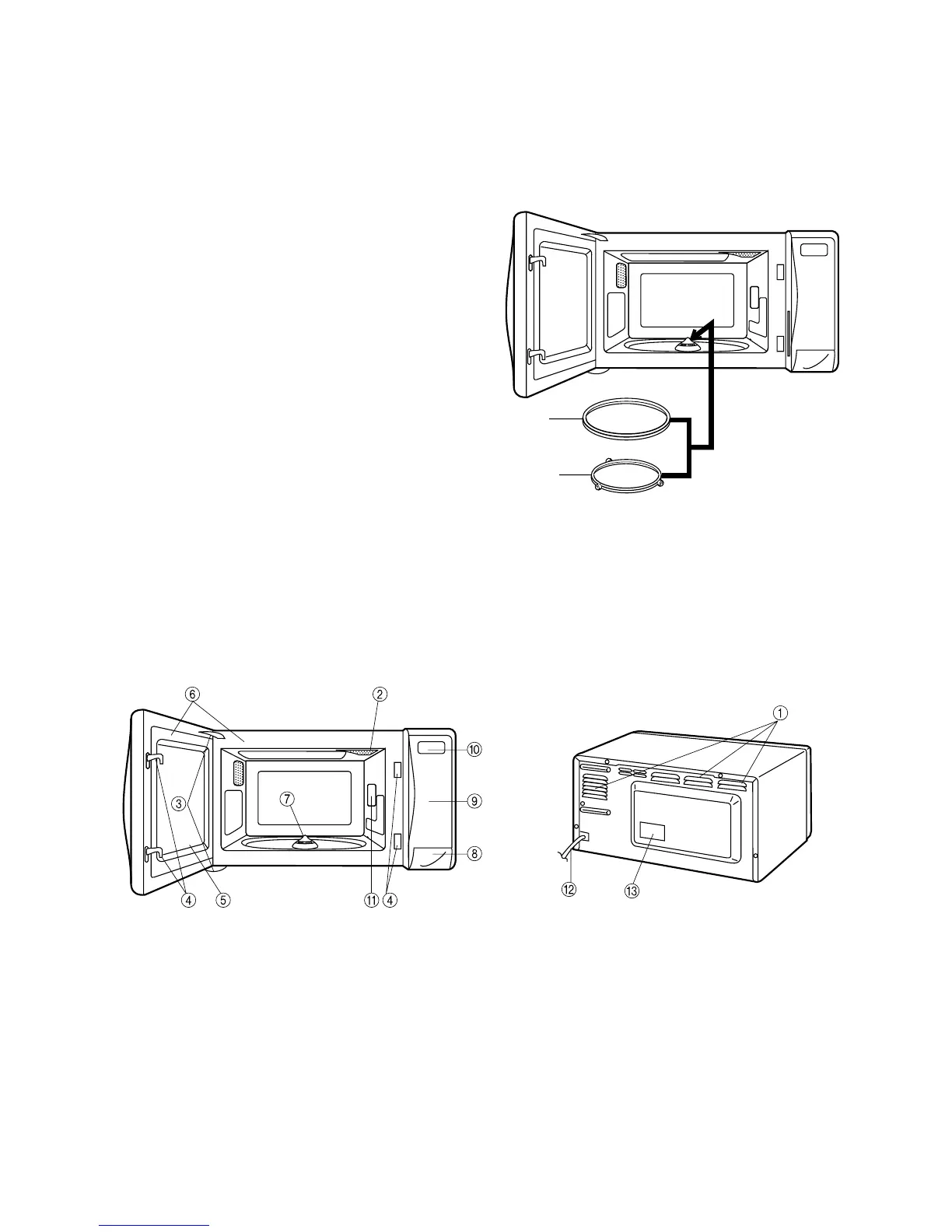

OVEN DIAGRAM
1. Ventilation openings
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing surfaces
7. Coupling
8.Door open button
9.Touch control panel
10.Digital readout
11.Waveguide cover
12.Power supply cord
13.Rating label
