Sharp R-820BW User Manual

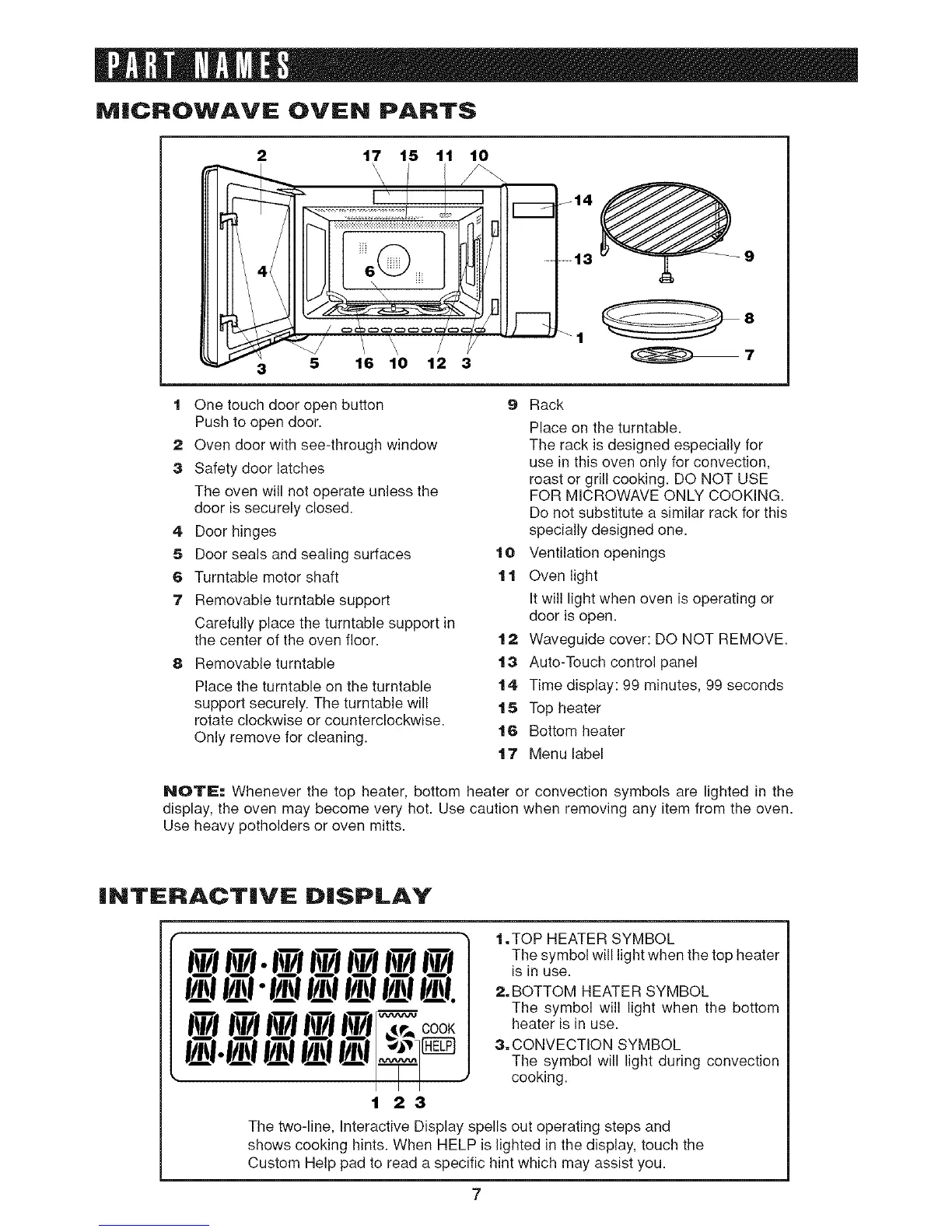

MICROWAVE OVEN PARTS
2 17 15 11 10
_ !l _131
3 5 16 10 12 3
I One touch door open button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the
door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
8 Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
9 Rack
Place on the turntable.
The rack is designed especially for
use in this oven only for convection,
roast or grill cooking. DO NOT USE
FOR MICROWAVE ONLY COOKING.
Do not substitute a similar rack for this
specially designed one.
10 Ventilation openings
11 Oven light
It will light when oven is operating or
door is open.
1 2 Waveguide cover: DO NOT REMOVE.
13 Auto-Touch control panel
14, Time display: 99 minutes, 99 seconds
15 Top heater
16 Bottom heater
17 Menu label
NOTE: Whenever the top heater, bottom heater or convection symbols are lighted in the
display, the oven may become very hot. Use caution when removing any item from the oven.
Use heavy potholders or oven mitts.
INTERACTIVE DISPLAY
123
1.TOP HEATER SYMBOL
The symbol will light when the top heater
is in use.
_'.BOTTOM HEATER SYMBOL
The symbol will light when the bottom
heater is in use.
3.CONVECTION SYMBOL
The symbol will light during convection
cooking.
The two-line, Interactive Display spells out operating steps and
shows cooking hints. When HELP is lighted in the display, touch the
Custom Help pad to read a specific hint which may assist you.

Sharp R-820BW Specifications

General

Type	Microwave Oven
Power Output	800 Watts
Turntable	Yes
Color	White
Frequency	50 Hz
Voltage	230 V
