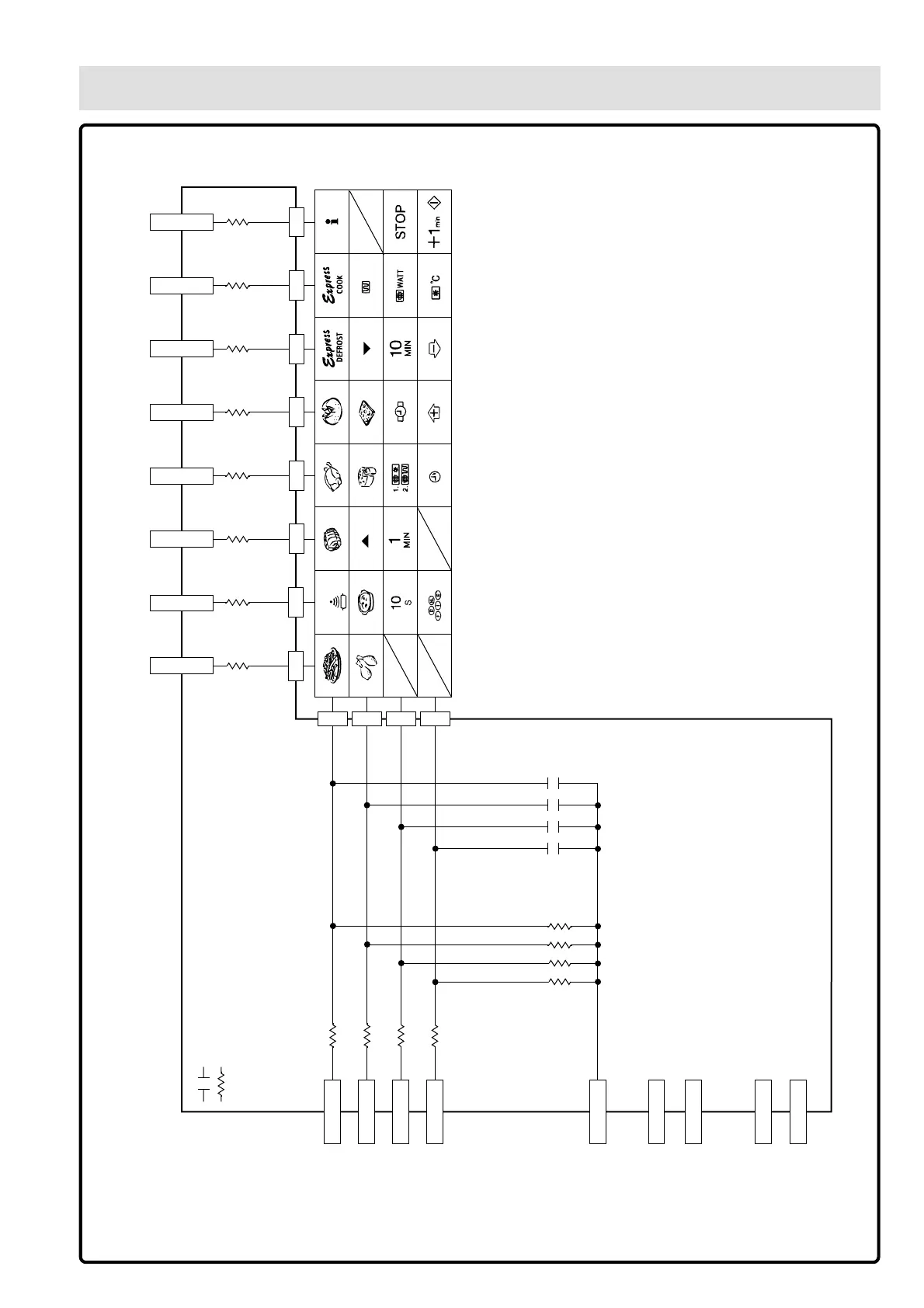

Figure S-5. Key Unit Circuit
IC1-6(P73) IC1-7(P72) IC1-8(P71) IC1-9(P70)
VC
GND
IC1-77(AN4)
IC1-39(P17)
R67 15k
R66 15k
R75 100k
R68 15k
: IF NOT SPECIFIED 0.01µF/25V : IF NOT SPECIFIED 1/10W ± 5%
R69 15k R70 15k R71 15k
R74 100k
R73 100k
R72 100k
C63 330pF/50v
C62 330pF/50v
C61 330pF/50v
C60 330pF/50v
R65 15k
R64 15k
R63 15k
R62 15k
R61 15k
R60 15k
IC1-40(P16)
IC1-41(P15)
IC1-42(P14)
IC1-43(P13)
IC1-44(P12)
IC1-45(P11)
IC1-46(P10)
IC1-22(INT1)
IC1-18(P47)
G12 G11 G10 G 9
G 8 G 7
SENSOR COOK
G 6 G 5 G 4 G 3 G 2 G 1
KEY UNIT CIRCUIT
