1 Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2 Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3 Oven cavity
4 Oven lamp - Automatically turns on during
oven operating.
5 Safety interlock system
6 Control panel
7 Door open button - To open the door push
the door open button.
8 Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
9 Roller guide - This must always be used for
cooking together with the glass tray.
0 Coupler - This fits over the shaft in the
center of the oven cavity floor.
This is to remain in the oven for all cooking.
q Glass tray - Made of special heat resistant
glass. The tray must always be in proper
position before operating. Do not cook food
directly on the tray.
w Viewing screen - Allows viewing of food.
The screen is designed so that light can
pass through, but not the microwave.
345
6
780
q
9
w
2
1

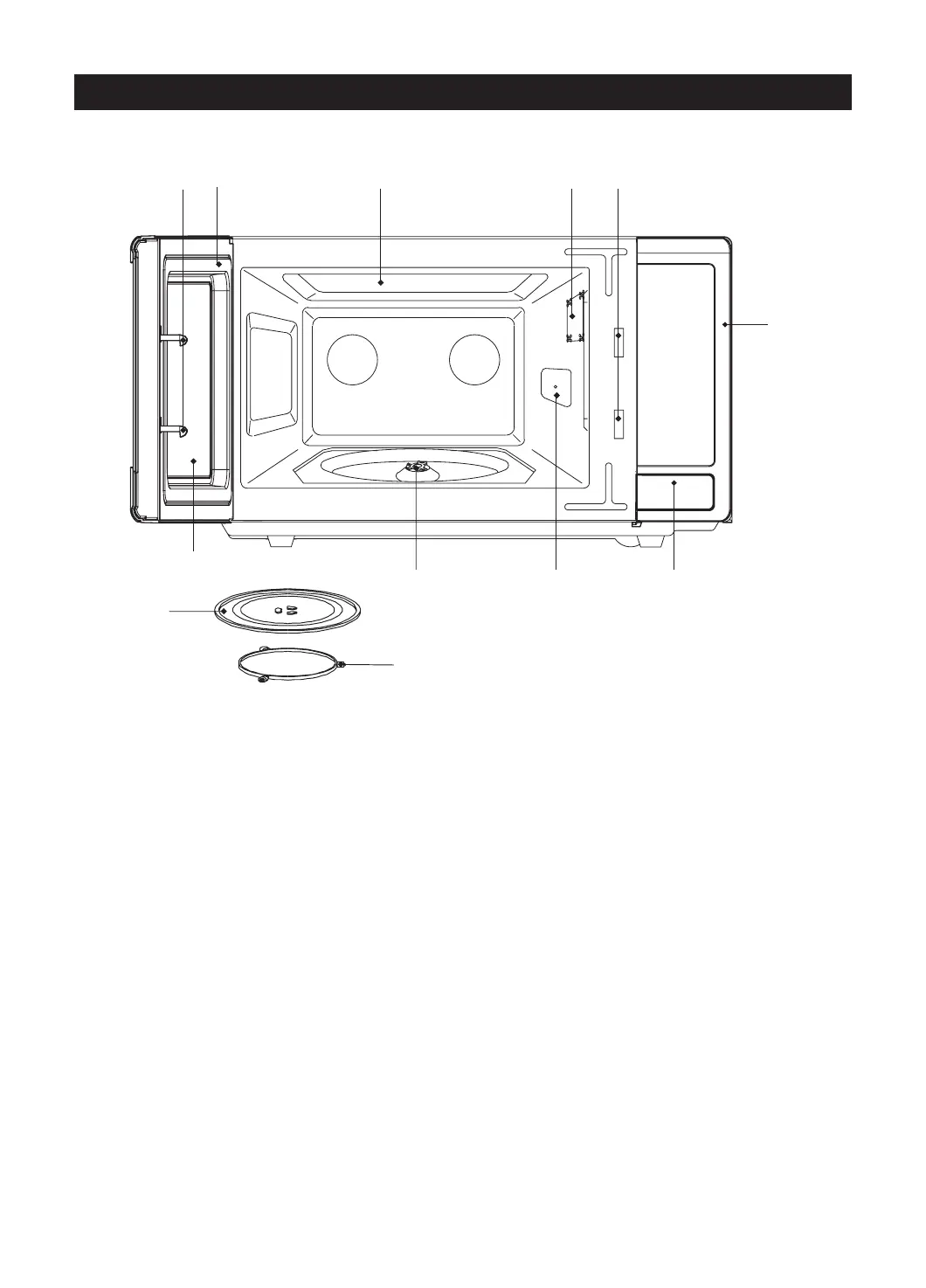

FEATURES DIAGRAM
