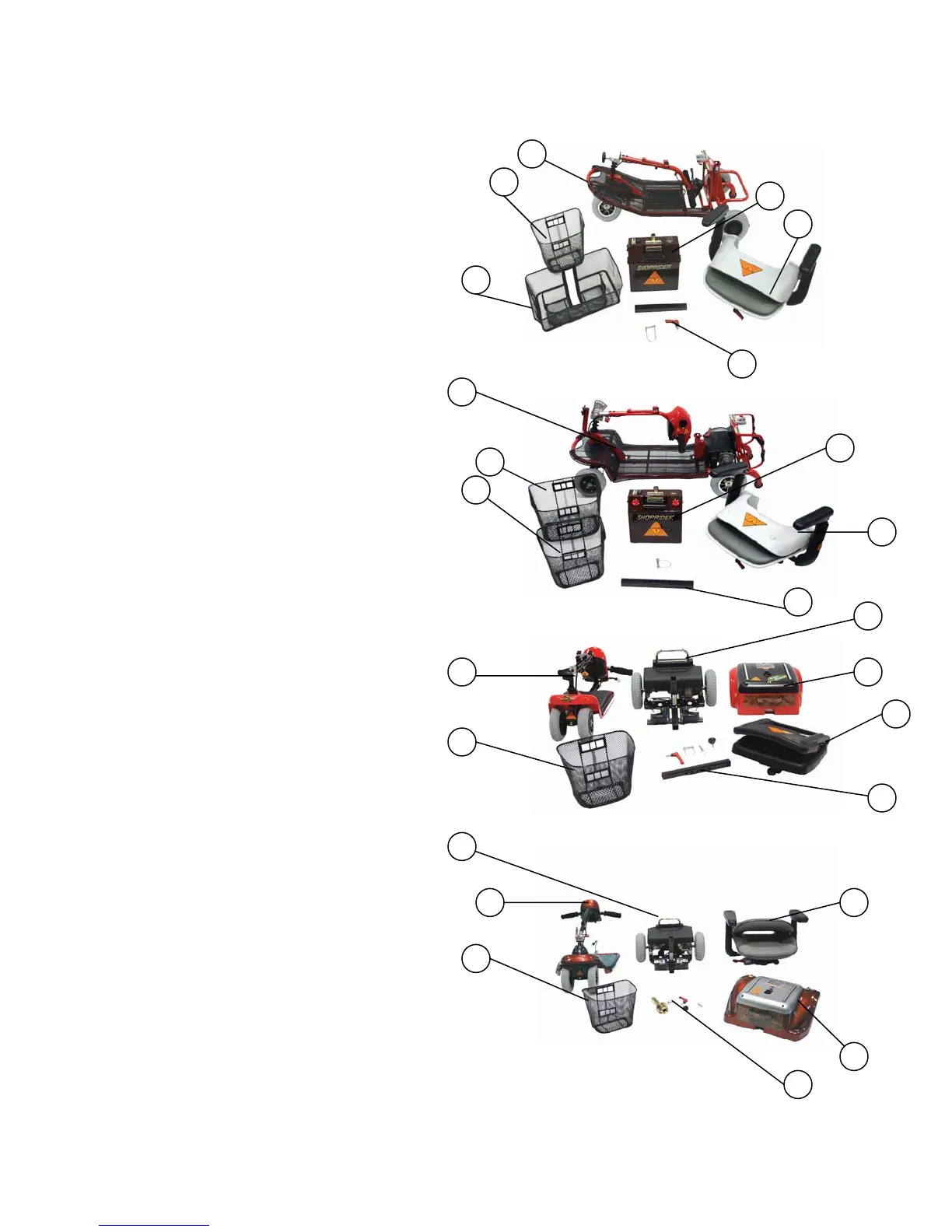

TRANSPORT / STORAGE
The scooters are designed to be dismantled into separate sections for transportation and storage.
Your scooter can be dismantled into the following sections:
XtraLite 3 (Fig. 15)
1) Small Front Basket
2) Large Rear Basket
3) Seat
4) Seat Post & Fasteners
5) Battery Pack
6) Fold Down Frame
XtraLite 4 (Fig. 16)
1) Small Front Basket
2) Large Front Basket
3) Seat
4) Seat Post & Fasteners
5) Battery Pack
6) Fold Down Frame
Scootie (Fig. 17)
1) Basket
2) Seat
3) Seat Post & Fasteners
4) Rear Chassis
5) Front Chassis
6) Rear Shroud
Sunrunner S (Fig. 18)
1) Basket
2) Seat
3) Seat Post & Fasteners
4) Rear Chassis
5) Front Chassis
6) Rear Shroud
Figure 15
Figure 16
Figure 18
1
2
6
5
3
4
1
6
5
3
6
2
Figure 17
4
2
4
5
2
1
3
4
1
3
5
6
