SICK PowerProx WTT12L-A Series User Manual

c) SOPAS から設定、SICK のメモリスティックにより設定を転送別の方法として、
SICK 独自のソフトウェア SOPAS からセンサを設定することができます。アクセ
サリの SICK メモリスティック (IOLP2ZZ-M3201、製品番号 1064290) を使用し
て、センサの設定を他のセンサに転送することもできます。本製品に関してご不明
な点は、営業担当者までお問い合わせください。

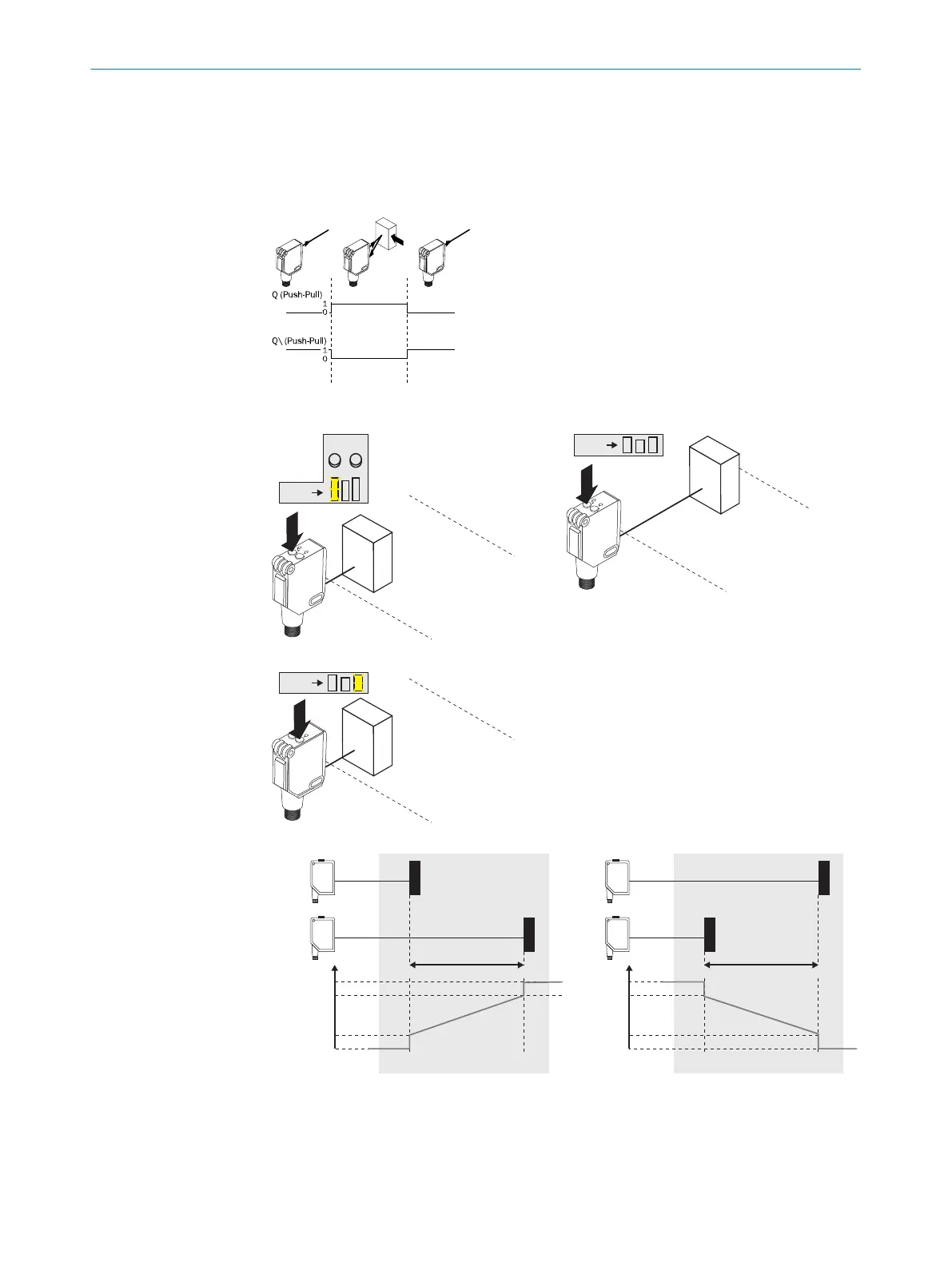

図: C
>1s
Q
A
Q
Teach 1 = 0.05V / 4m A
図: E
>1s
Teach 2 = 10V / 20m A
Teach
>1s
図 38: F
Teach 1
20.5mA / 11V
20mA / 10V
4mA / 0.05V
3.5mA / 0.03V
Teach 2
Teach 1
Teach 2
min. 50 mm
図 39: G
Teach 2
20.5mA / 11V
20mA / 10V
4mA / 0.05V
3.5mA / 0.03V
Teach 1
Teach 1
Teach 2
min. 50 mm
68 設定
92
8020879.ZM26 | SICK
Subject to change without notice
