Dimension drawings
10.1 3RM1 dimension drawings
SIRIUS 3RM1 motor starter
130 Manual, 11/2013, A5E0345285095020A/RS-AB/002

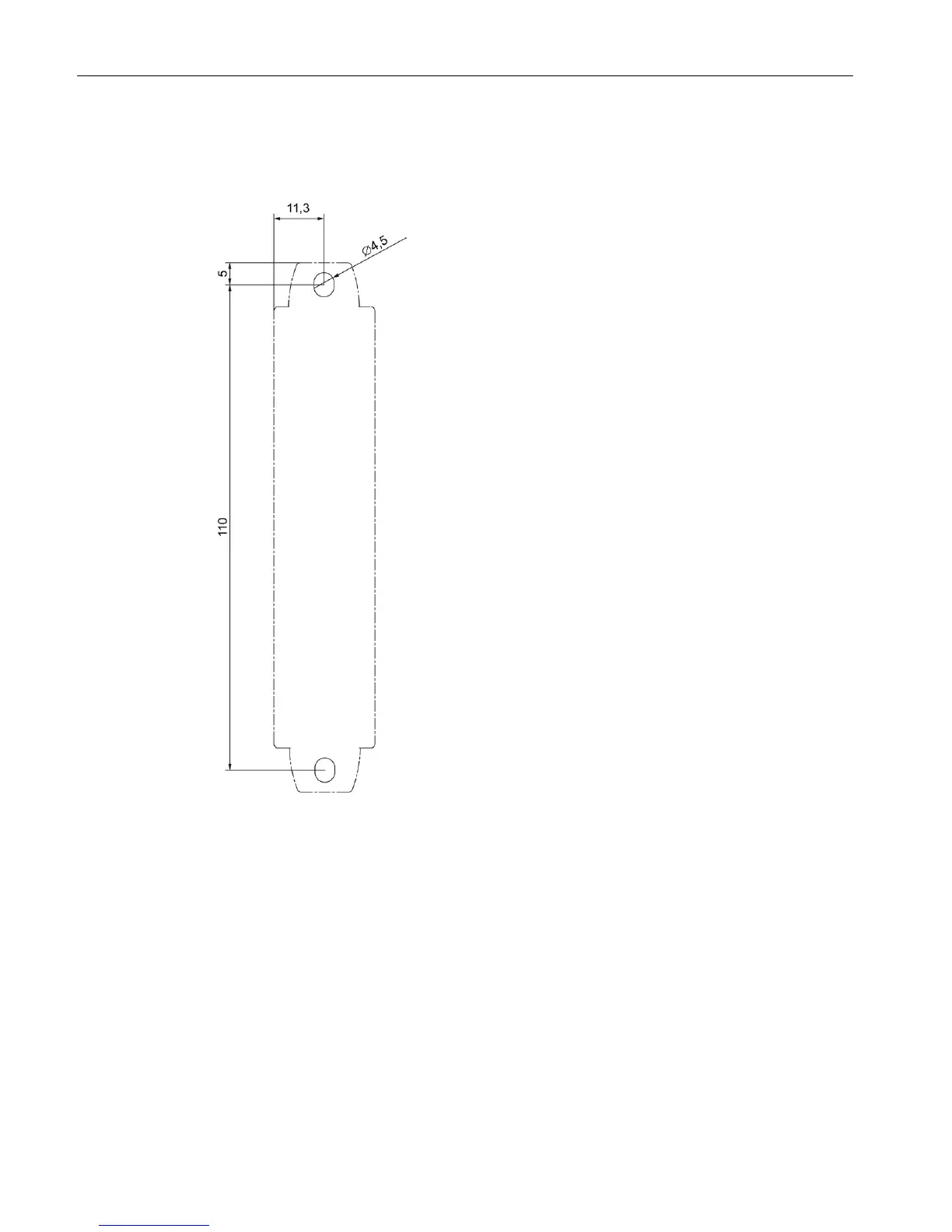

Drilling diagram for push-in lugs for wall mounting
