Typical circuits
A.2 Typical circuits for 3RM1 Failsafe
SIRIUS 3RM1 motor starter
154 Manual, 11/2013, A5E0345285095020A/RS-AB/002
*
)
If there is a common reference potential for the two inputs, it suffices to establish a ground
connection.
If there are separate potentials or controls, both connections must be assigned.

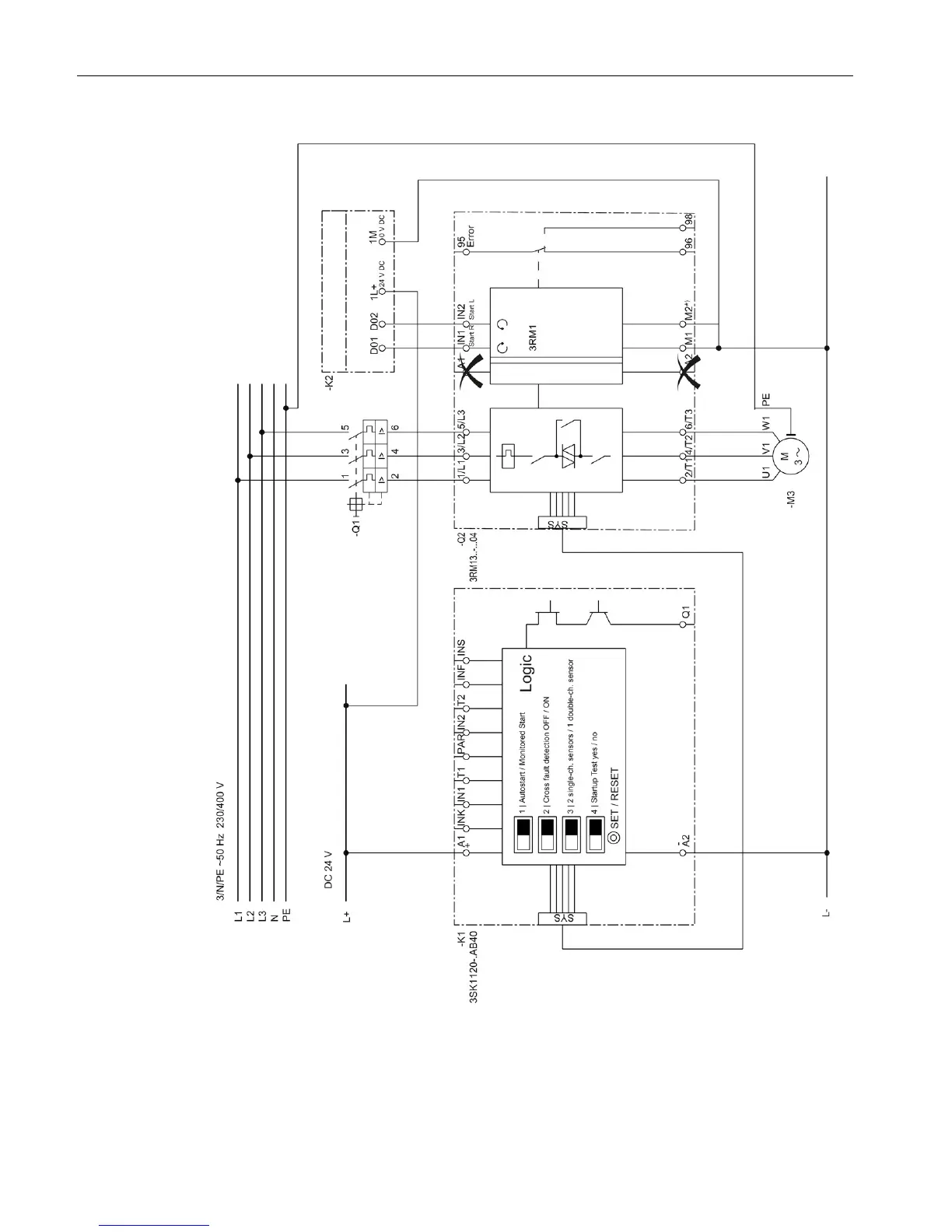

Figure A-7 3SK1 safety relay with 3RM13 reversing starter via device connector
