Typical circuits
A.2 Typical circuits for 3RM1 Failsafe
SIRIUS 3RM1 motor starter
156 Manual, 11/2013, A5E0345285095020A/RS-AB/002

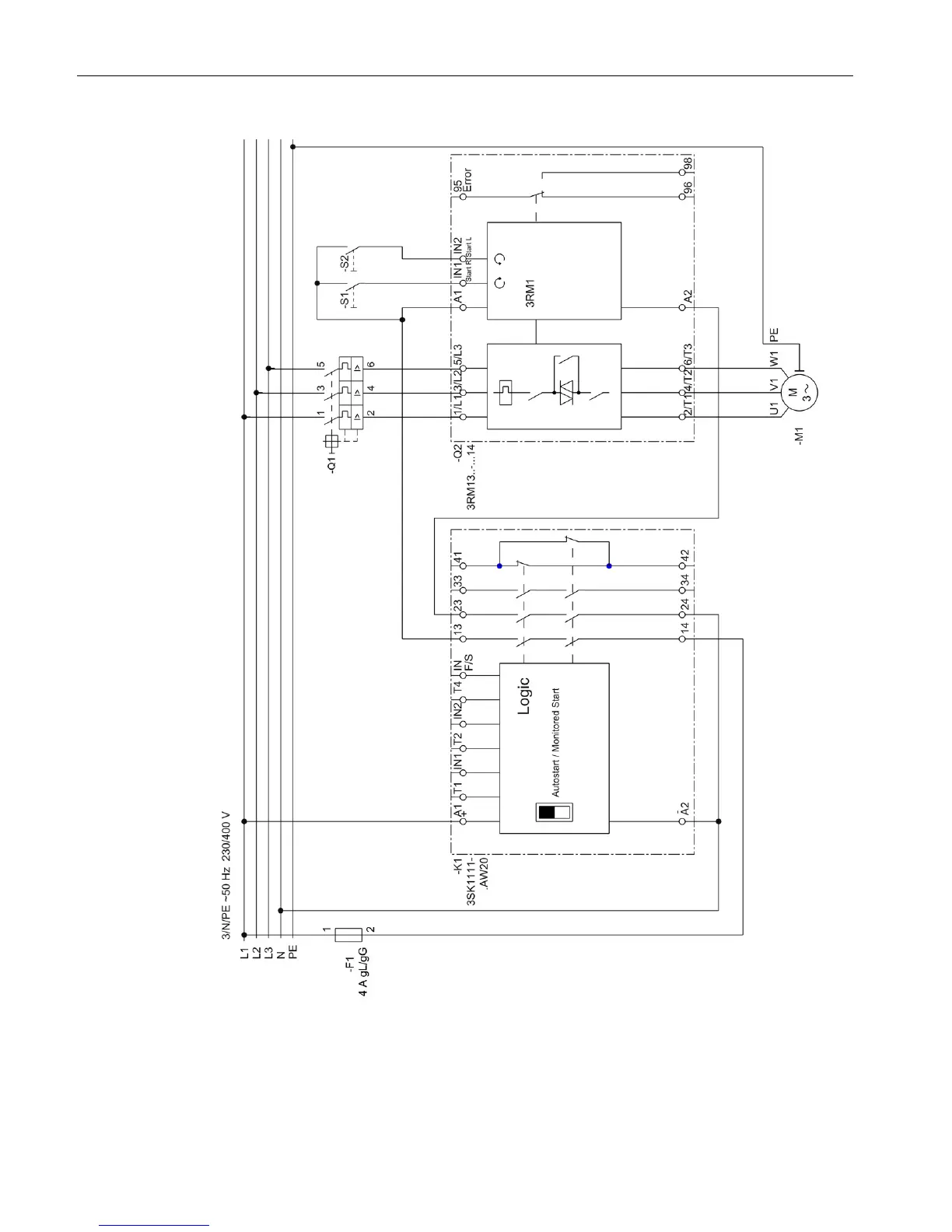

Figure A-8 3SK1 safety relay with 3RM13 reversing starter
