Siemens CERBERUS PYROTRONICS PXL User Manual

InstallationPXL Conventional Fire Alarm Control Panel
15
Mounting the PNC-2Z:
1. Slide the PNC-2Z module board through the slot in the PMK-1
mounting bracket next to the PRM-4 with the terminal blocks
facing out and the locating tab protruding through the slot of the
bracket, as shown in Figure 10. If the PRM-4 is not used, place
the PNC-2Z next to the PPS-10M.
2. Fasten the board to the mounting bracket with the screw
provided (See Figure 10).

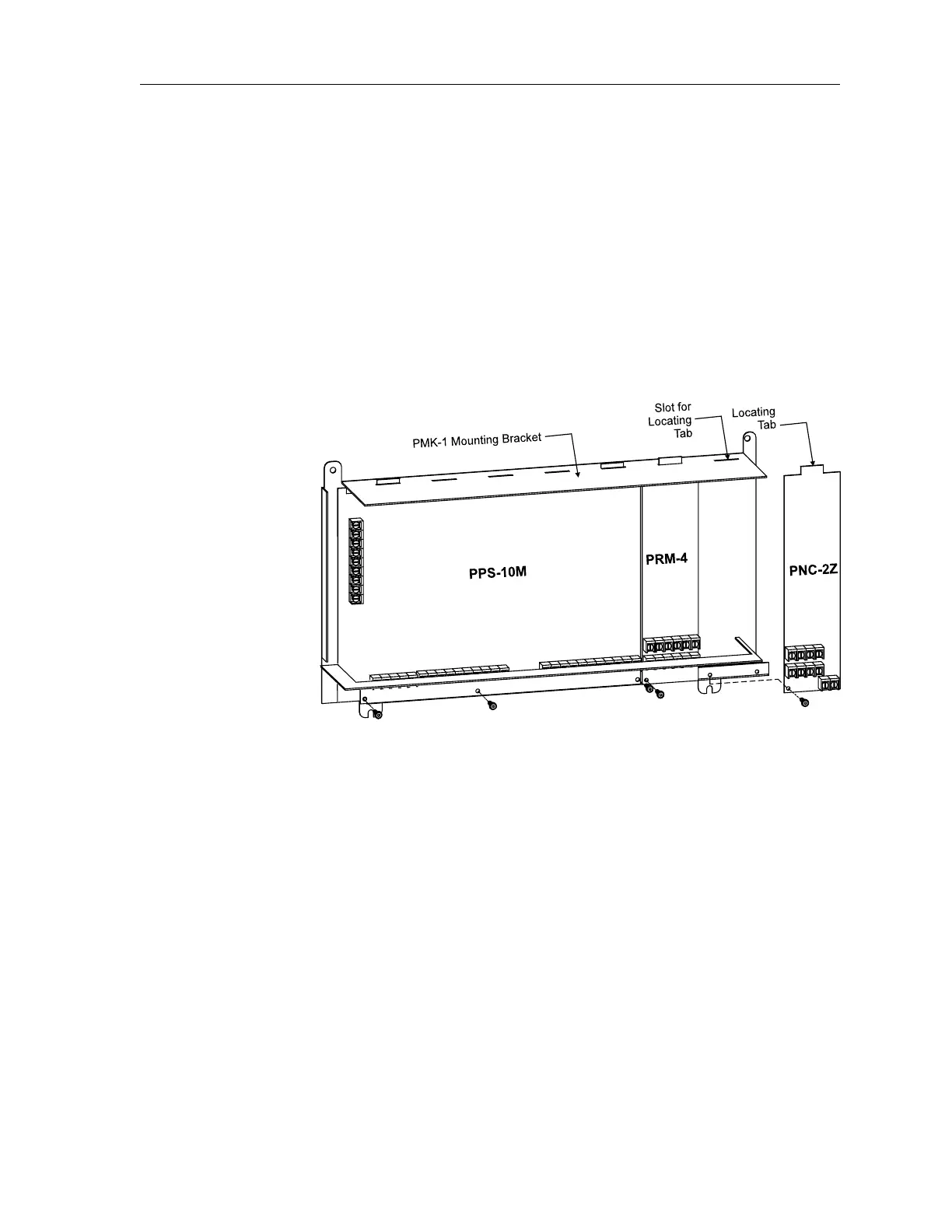

Figure 10
Mounting the PNC-2Z on the PMK-1 Bracket
