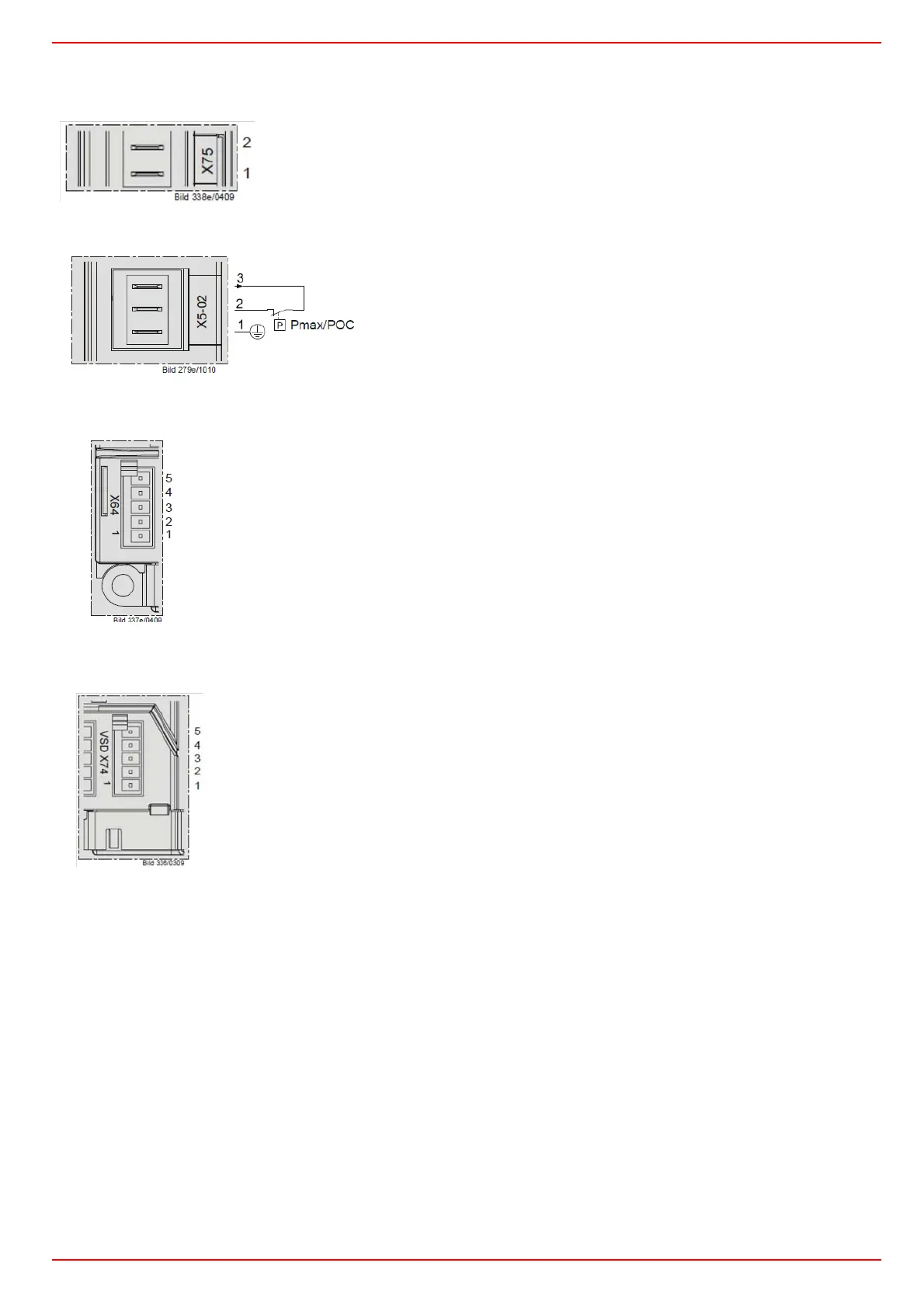

Wiring variants for LMV37
5 -Power supply speed sensor
4 -Speed sensor input
3 - PWM (Pulse Width Modulation) speed output
2 - GND (signal reference)
1 -Controller input (4÷20mA)
5 -Supply
ConnectorX75
ConnectorX64
ConnectorX74
2 - Fuel meter input
1 - Supply fuel meter
ConnectorX5-02
Connections Pmax
4 -Feedback signal
3 - PWM (Pulse Width Modulation) speed output
2 - GND (signal reference)
1 -External supply 24V DC
