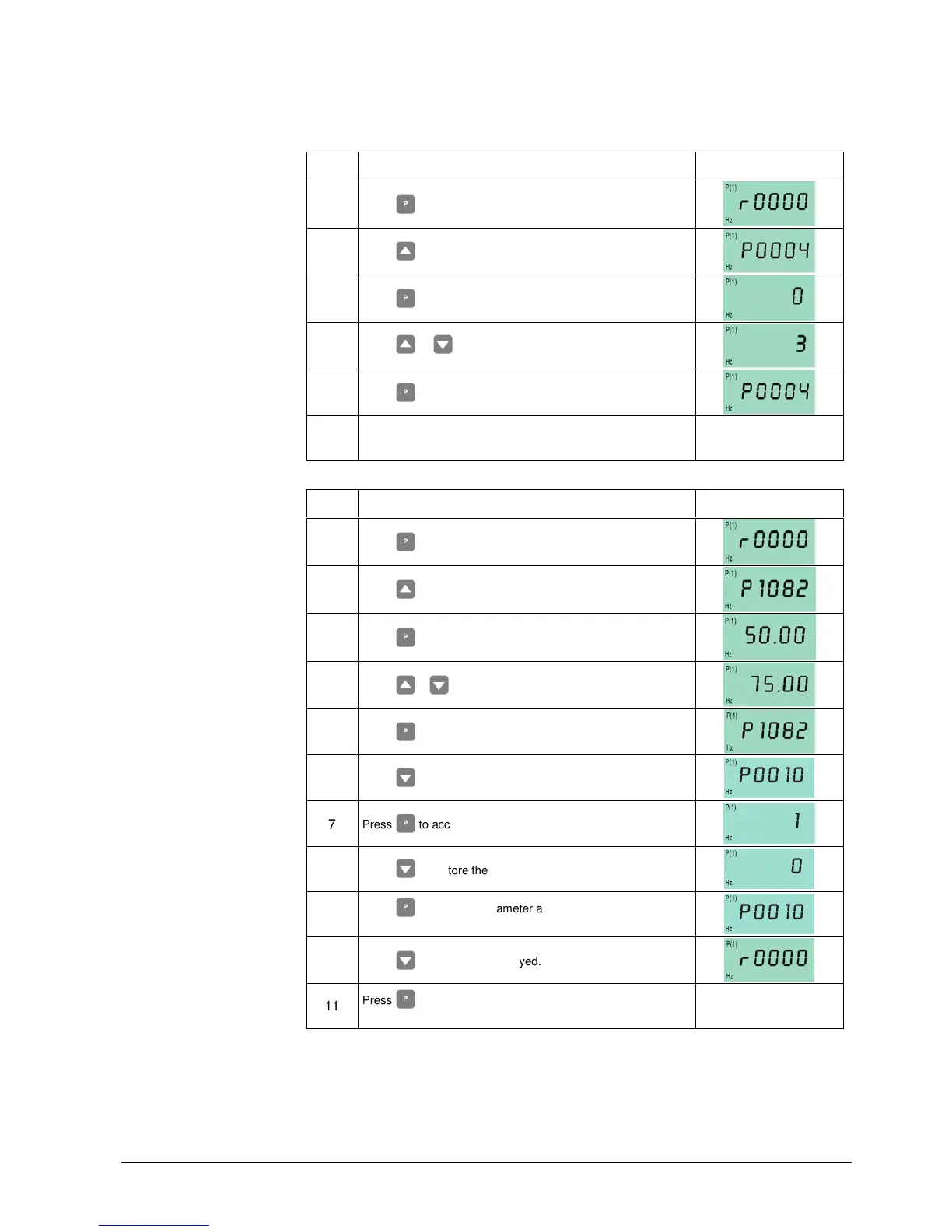

5.4.4.2 Setting parameters with the BOP or AOP
The following describes how to change parameter P1082. Use this description as a
guide to setting all other parameters with the BOP.
Step
Action
Resulting display
1
Press to access the parameters.
2
Press until P0004 is displayed.
3
Press to access the parameter value level.
4
Press or to display the required value.
5
Press to confirm and save the value.
6
Only the motor parameters are now visible for the user.
Step
Action
Resulting display
1
Press to access the parameters.
2
Press until P1082 is displayed.
3
Press to access the parameter value level.
4
Press or to display the required value.
5
Press to confirm and save the value.
6
Press to return to P0010.
Hz
P(1)
P0010
7
Press to access the parameter value level P0010.
Hz
P(1)
1
8
Press to restore the value to P0010 = 0.
Hz
P(1)
0
9
Press to save the parameter and exit the parameter value
level.
Hz
P(1)
P0010
10
Press until r0000 is displayed.
11
Press to revert to the standard motor display (as defined
by the customer).
Changing P0004 –
parameter filter function
Changing an indexed
value under P1082 –
setting the maximum
motor frequency
