Configuring the HMI device
5.1 Configuring devices with graphical Control Panel
Basic Panels
76 Operating Instructions, 04/2012, A5E02421799-03
5.1.10 Enabling a data channel
You must enable at least one data channel to transfer a project to the HMI device.
Note
After having completed the project transfer, you can protect the HMI device against
unintentional overwriting of project data and of the HMI device image by locking all data
channels.

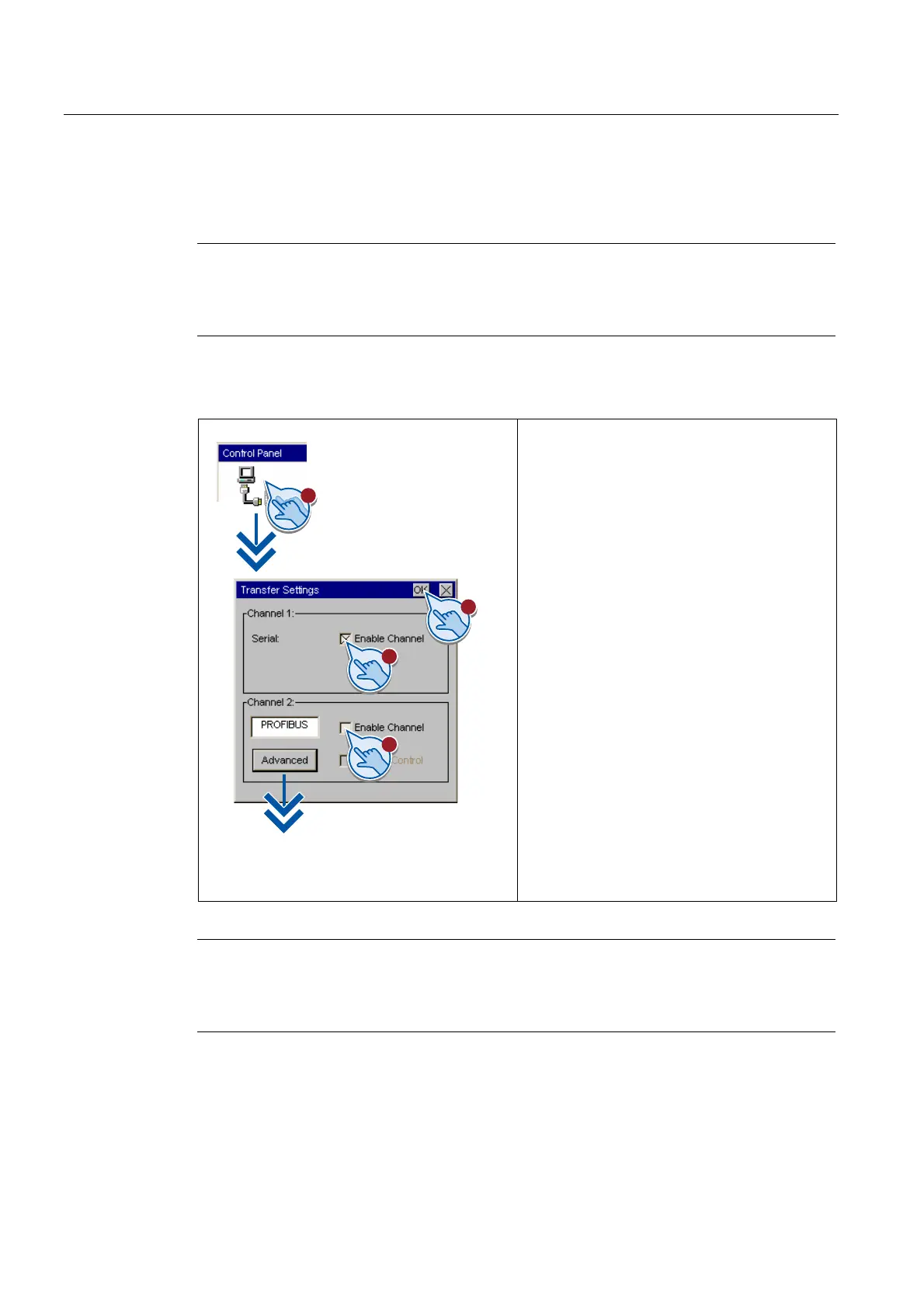

Enabling a data channel - Basic Panels DP
1. Press "Transfer" to open the "Transfer
Settings" dialog.
2. If the HMI device is interconnected with the
configuring PC via PC-PPI cable, activate the
"Enable Channel" check box in the "Channel
1" field.
If the HMI device is interconnected with a
programming device via PROFIBUS, activate
the "Enable Channel" check box in the
"Channel 2" field.
Press the "Advanced" button to open the
"MPI / Profibus Settings" dialog. Verify the
PROFIBUS parameters in this dialog. A
description of the "MPI / Profibus Settings"
dialog is provided in chapter 5.1.3, Changing
MPI/DP settings (Page 69).
3. Close th
e dialog and save your entries with
"OK".
Note
Automatic transfer is activated be setting the "Remote Control" check box. If automatic
transfer is activated, the HMI device can be set remotely to transfer mode by a configuring
PC or programming device.
