Configuring the Mobile Panel
6.3 Configuring plant areas in WinCC
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
181
Configuring zones and start screens
If you have divided your plant into plant areas, you can add a start screen for each
configured connection point. In the TIA Portal, plant areas are created in the project tree
under "Zone".
● Connection point recognition is configured.
● The corresponding project has been opened in the TIA Portal.
1. Select "Project tree > Devices > KTPxxx > Zones".
2. Add one or more zones in the editor. Box ID, Name and Display name can be edited.
Note
There must be a connection box for each box ID in the list on
which the same box ID is
set via the rotary coding switches.

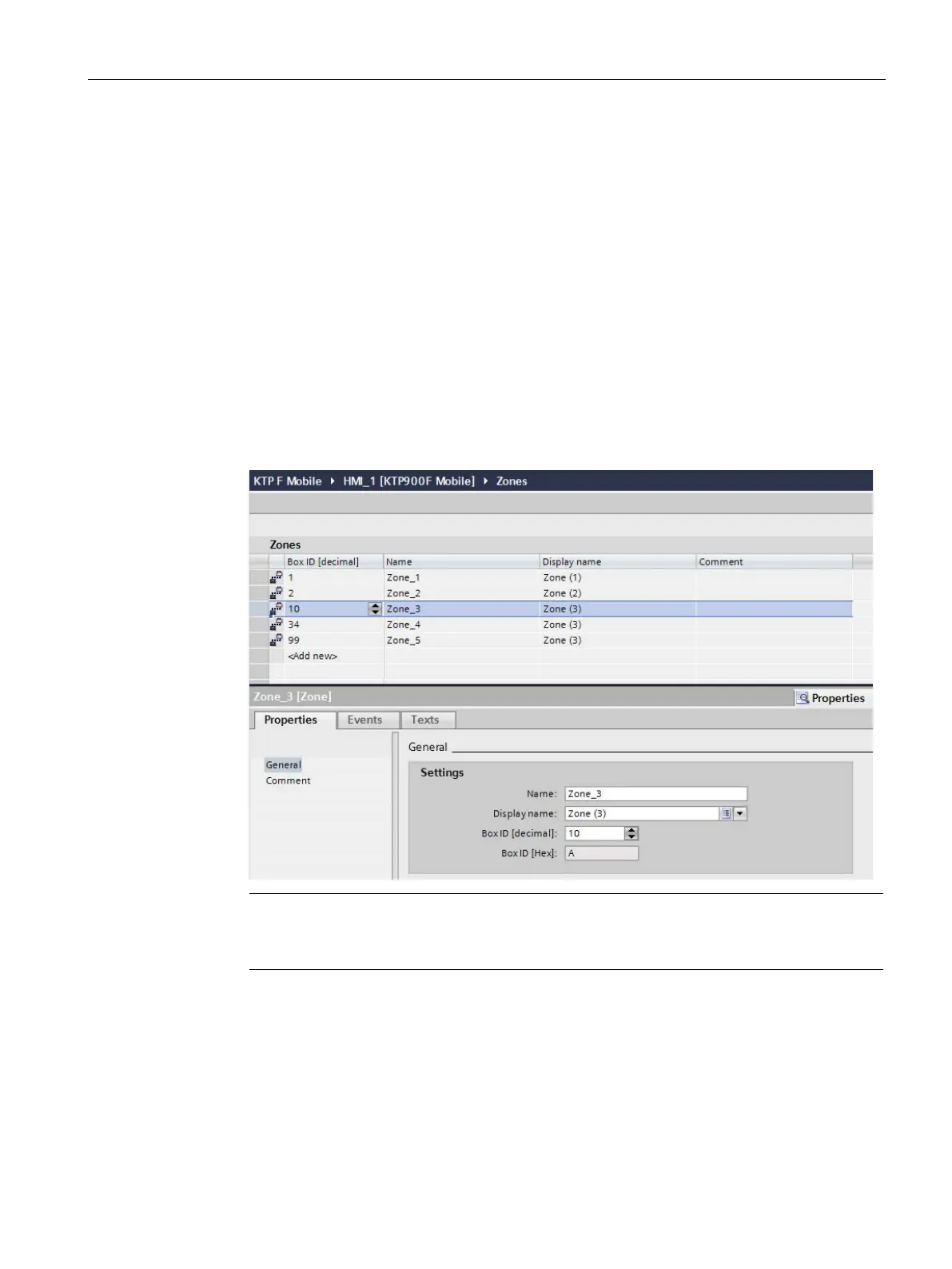

When you select a zone, the box ID is displayed in addition to the name and display
name in decimal form and in hexadecimal form in the Inspector window under "Properties
> General".
3. In the Inspector window, select "Properties > Events" > Connect > Add function".
