Description of the device
4.2 Device view
SCALANCE W788-x / W748-1
Operating Instructions, 03/2022, A5E03678333-17
21

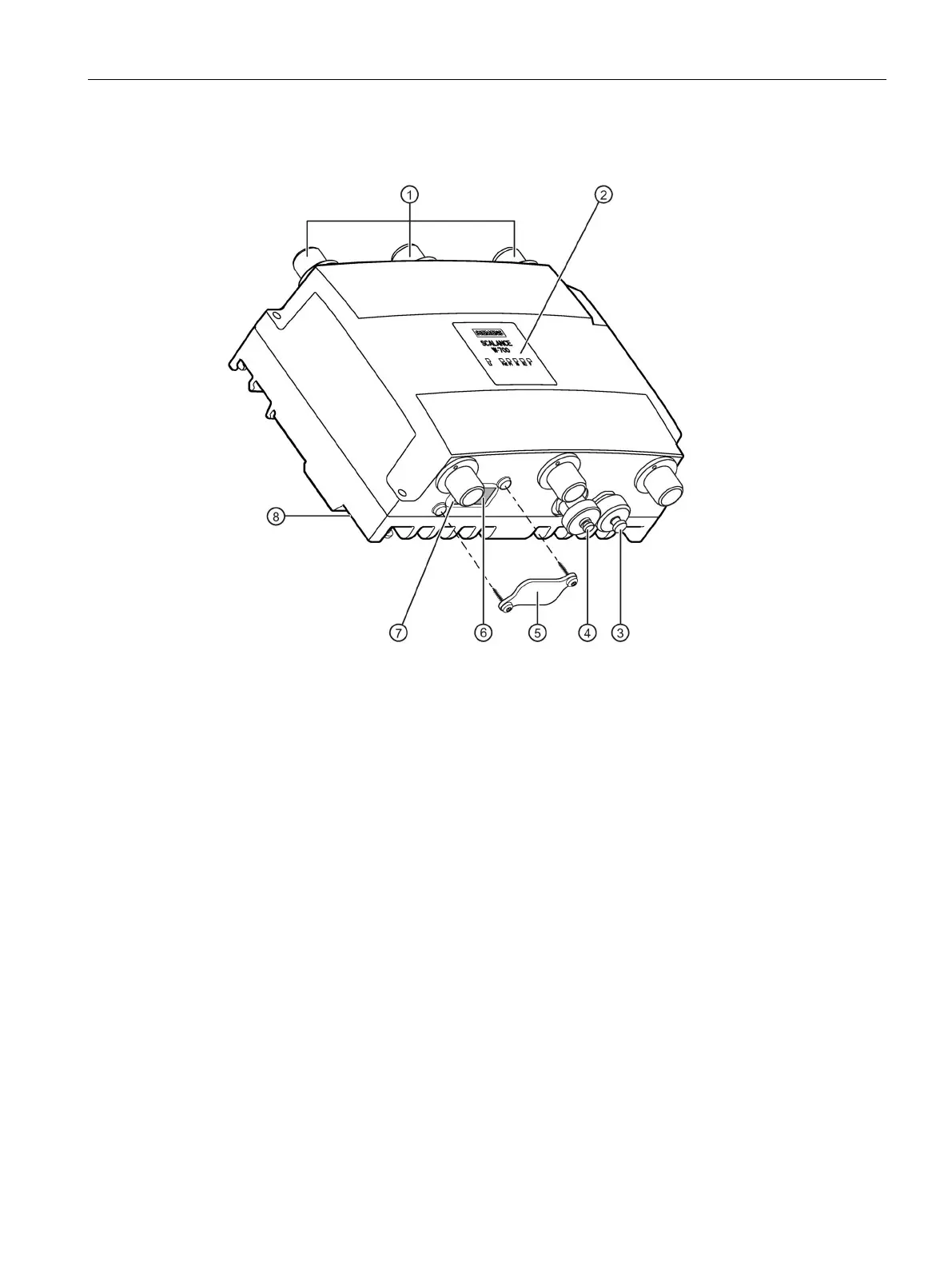

4.2.2 SCALANCE W7x8-x M12
①
Antenna connectors, type R-SMA female
• Devices with one IWLAN interface:
– Three connectors on the top
• Devices with two IWLAN interfaces:
– Three connectors on the top
– Three connectors on the bottom
②
LED display
③
Connector for power supply (with cover)
④
Ethernet connector (with cover)
⑤
Screw-down cover:
- for the Reset button and
- for the PLUG slot
⑥
PLUG slot
⑦
Reset button
⑧
Grounding connector (thread M4) on the back of the device (covered)
