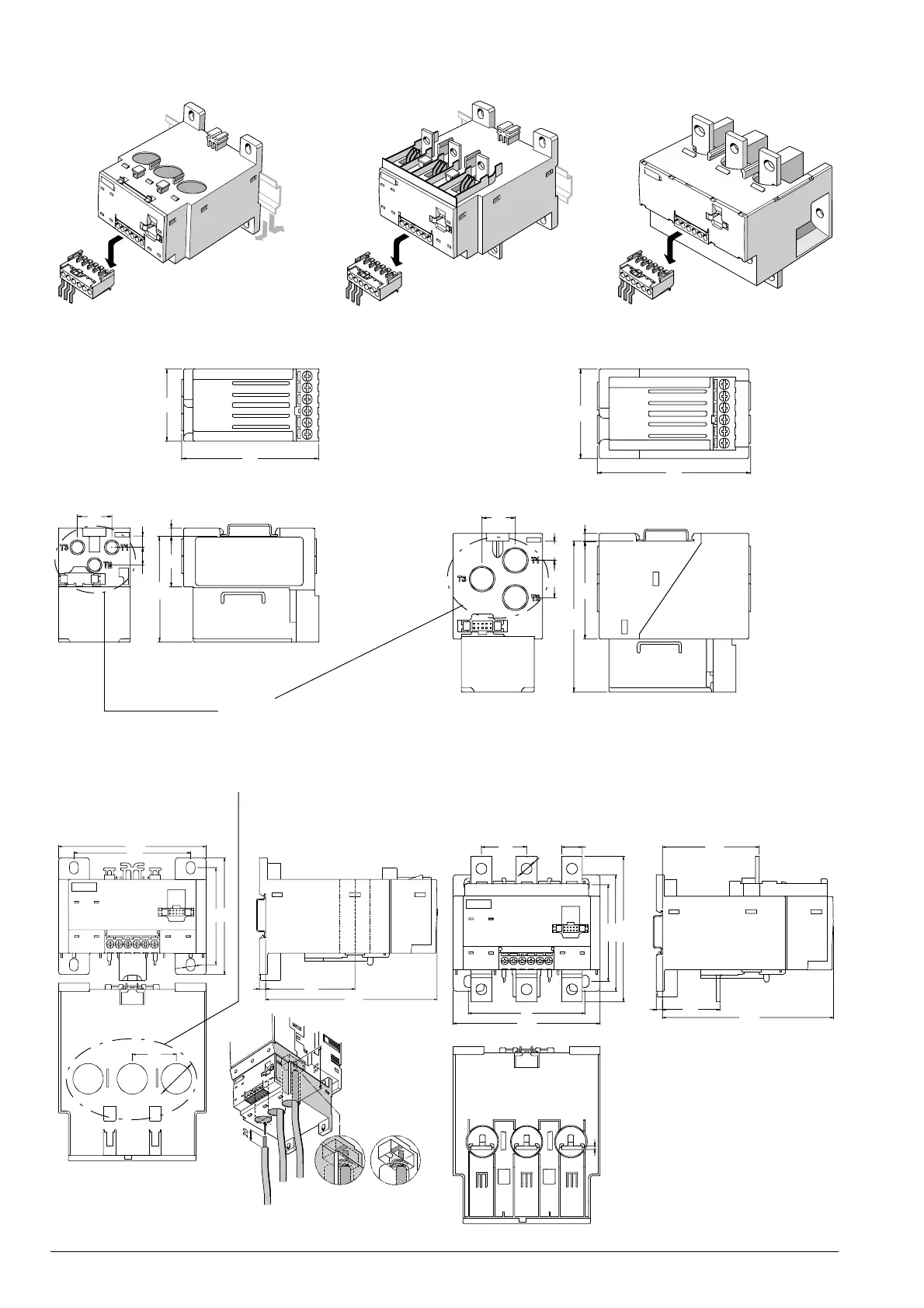

Siemens SIMOCODE pro Operating Instructions

2 3ZX1012-0UF77-1BA1
3UF7113-1BA00-0
3UF7114-1BA00-0
3UF7113-1AA00-0
7
11
21
45
85
5 31
66
3
79
140
47
5
120
95
119
95 79
9
17
37
Ø
36
2
5
7
95
79
120
95
140
73
5
Ø
Ø
3UF7110-1AA00-0
3UF7111-1AA00-0
3UF7112-1AA00-0
Durchstecköffnungen für Motorzuleitungen
Let-through openings for motor lines
Traversées pour entrées de moteur
Abertura para cables de motor
Aperture a foro passante per alimentazione del motore
Aberturas de passagem para condutores de alimentação de motores
3UF7113-1AA00-0 3UF7113-1BA00-0
20
2312
94
55
92
60
5

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
