Siemens SINUMERIK 808D Operating Guide

808D Page 31 Operating and Programming — Milling
Create Part
Program
Part 1
s
Basic Theory
Edit
program

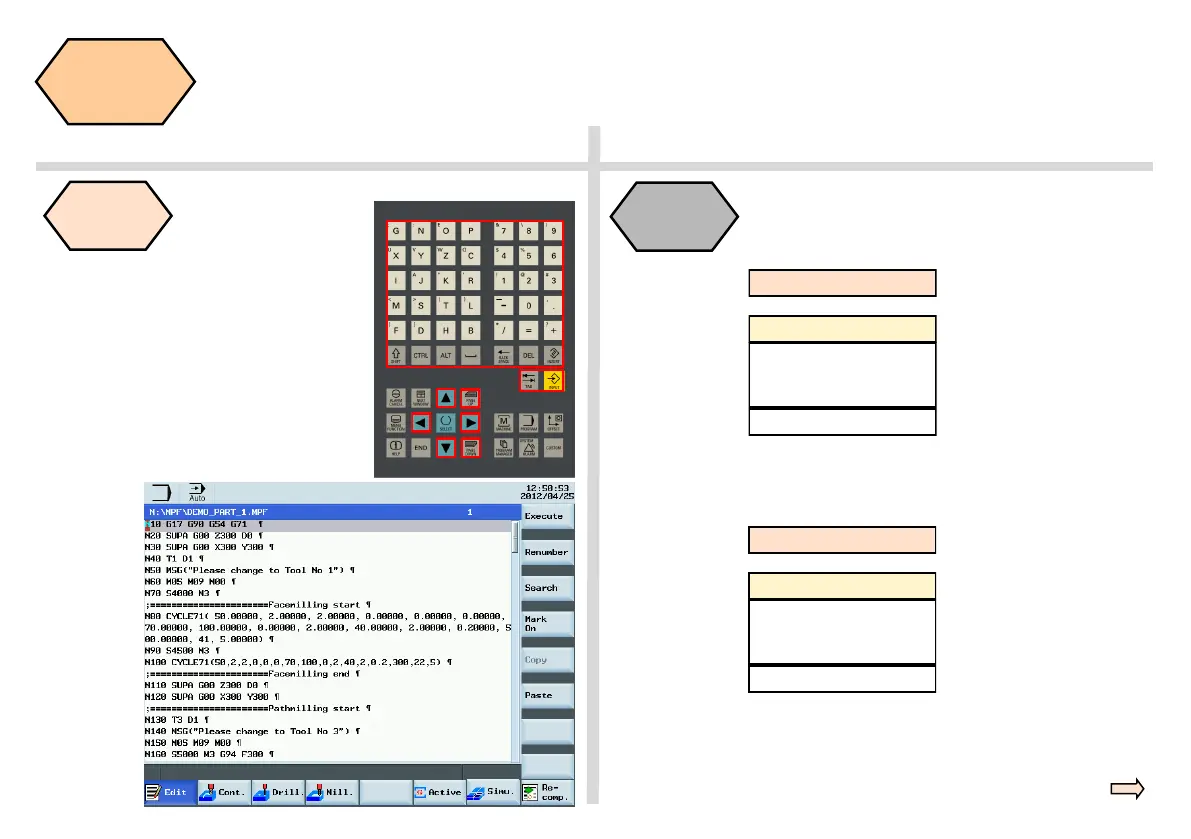

The program shown in the editor can be
created and edited with the appropriate
keys.
Inches and
mm
Header
T,F,S function
Geometry data / motion
Return to change tool
N5 G17 G90 G54 G71
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 X100 Y100 Z5
N25 G01 Z-5
N30 Z5
N35 G00 Z500 D0
G71
With G71 at the
header, the ge-
ometry data will
be in the metric
unit system, the
feedrate in the
default metric
system.
Header
T,F,S function
Geometry data / motion
Return to change tool
N5 G17 G90 G54 G70
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 X3.93 Y3.93 Z5
N25 G01 Z-0.787
N30 Z0.196
N35 G00 Z19.68 D0
G70
With G70 at the
header, the ge-
ometry data will
be in the imperial
(inches) unit
system, the
feedrate in the
default metric
system.
