Operating and Programming — Milling Page 32 808D
Create Part
Program
Part 1
s
Basic Theory
Definition of
target
position
N5 G17 G90 G54 G71
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 X100 Y100 Z5
N25 G01 Z-20
N30 Z5
N35 G00 Z500 D0
G90
Absolute positioning;
with G90 at the header,
the geometry data which
follows will be interpret-
ed relative to the active
zero point in the pro-
gram, usually with G54
or G500 or G500 + G54.
N5 G17 G90 G54 G70
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 X3.93 Y3.93 Z0.196
N25 G01 G91 Z-0.787
N30 Z0.196
N35 G00 G90 Z19.68 D0
G91
Relative positioning;
with G91 you can add
an incremental value
(G91-defined data is the
relative positioning
using the present posi-
tion as the start point).
Finally you should
change the program to
absolute positioning with
G90.

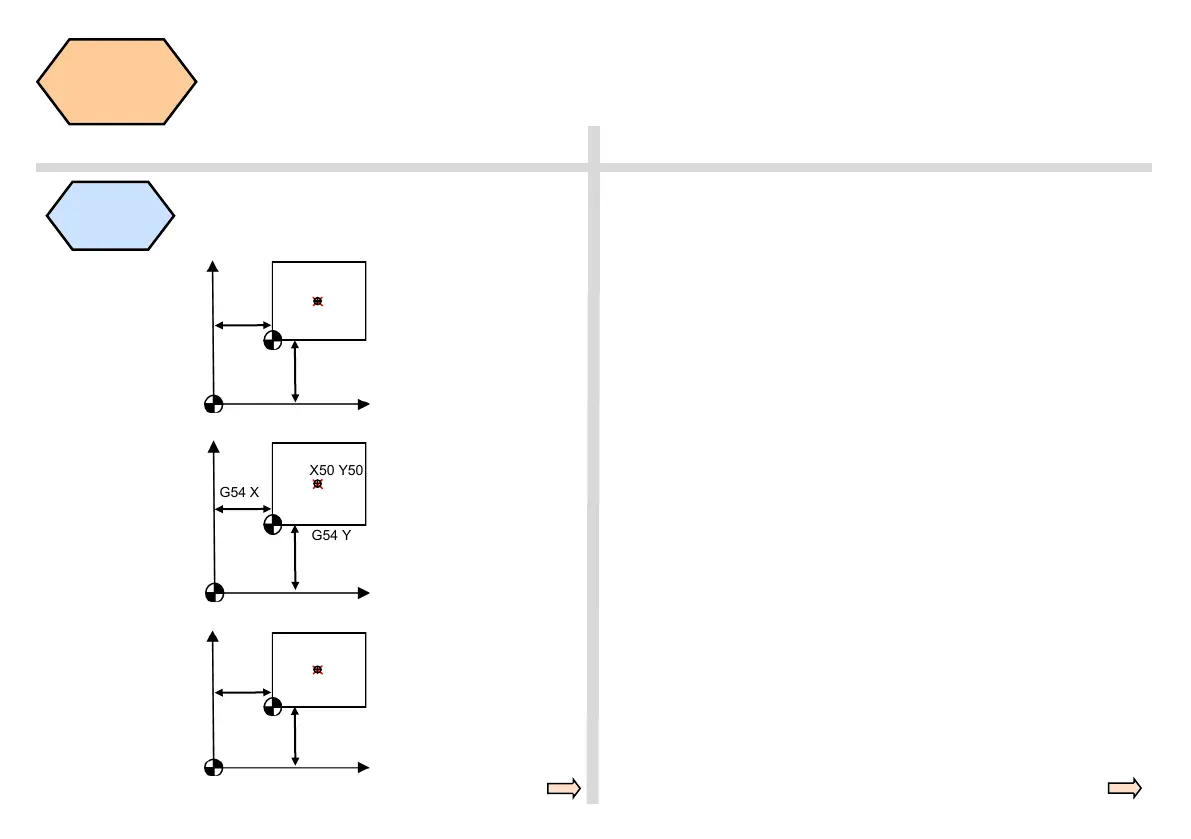

G54 G55 G56 G57
G58 G59
With G500 = 0, the
offset for the work-
piece can be stored
in the G54 workpiece
offset.
G500
All absolute path
data will be relative
to this position. The
position is written in
the G500 (basic)
zero offset.
G500 + G54
With G500 unequal
to 0 and be activat-
ed, the value in
G500 will be added
to the value in G54.
N5 G17 G90 G500 G71
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 X50 Y50 Z5
N25 G01 Z-20
N30 Z5
N35 G00 Z500 D0
G500 Y
G500 X
X50 Y50
N5 G17 G90 G54 G71
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 X0 Y0 Z5
N25 G01 Z-20
N30 Z5
N35 G00 Z500 D0
G500 Y
G500 X
G54 X0
G54 Y0
N5 G17 G90 G500 G71
N10 T1 D1 M6
N15 S5000 M3 G94 F300
N20 G00 G54 X20 Y20 Z5
N25 G01 Z-20
N30 Z5
N35 G00 G53 Z500 D0
Or
Or
G54 Y
G54 X
X50 Y50
