Simplicity 1600 Series User Manual

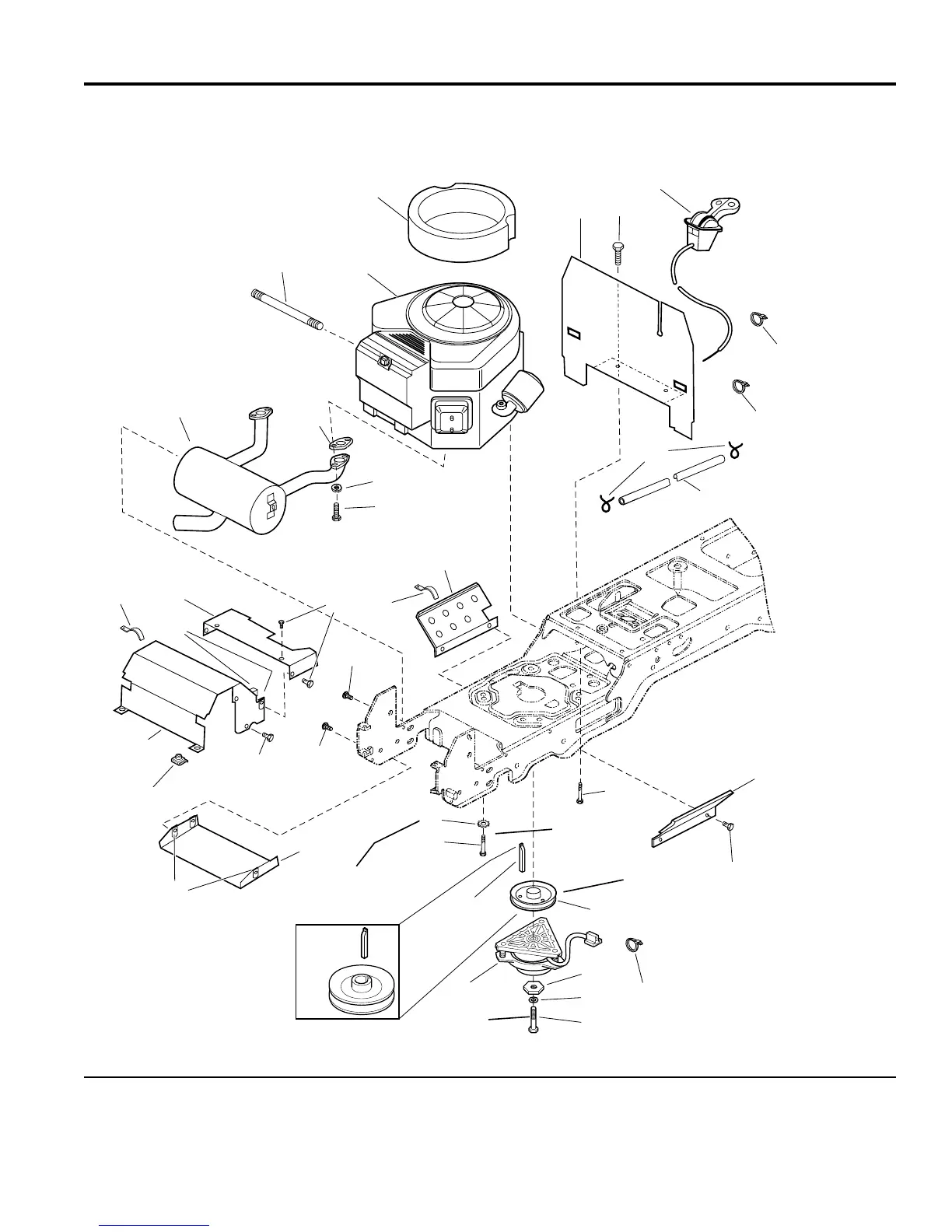

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61-68 Nm)
Torque to
24-36 ft. lbs.
(31-48 Nm)
Note:
Orientation
of All Keys
Tie cables to Left
Hand side of shield.
Position pulley
chamfer side up.
Install between Frame &
Ground cable on RH
rear engine capscrew.
15
12
17
10
16
14
11
13
18
24
23
19
25
21
20
1
5
9
2
4
6
3
7
8
22
11
23
27
30
29
31
10
28
22
26
32
26
7
19
986252
The above parts group applies to the following Mfg. Nos.:
2005
8
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694630 - Broadmoor
1694683 - Broadmoor
1694807 - 2618
TP 400-4205-01-BM-SMA
