ROLLER BAR LEVELING
(if Equipped)
1. First level the mower deck using the procedure found
in MOWER DECK LEVELING.
2. With the mower installed, place the rider on a
smooth, level surface such as a concrete floor. Turn
the front wheels so they are straight.
3. Place the mower cutting height pin in the 4th hole
from the bottom (C, Figure 29).
4. Measure the distance between the outside ends of
the roller bar and the ground. If there is more than
1/8" (3mm) difference between the measurements on
each side, proceed to step 5.
5. Locate the roller bar leveling eccentric and Iocknuts
(A, Figure 31). Loosen the Iocknut and turn the
eccentric to raise or lower a side. When the correct
level is achieved, hold the eccentric with a wrench
and tighten the Iocknut. Repeat step 4 if necessary.

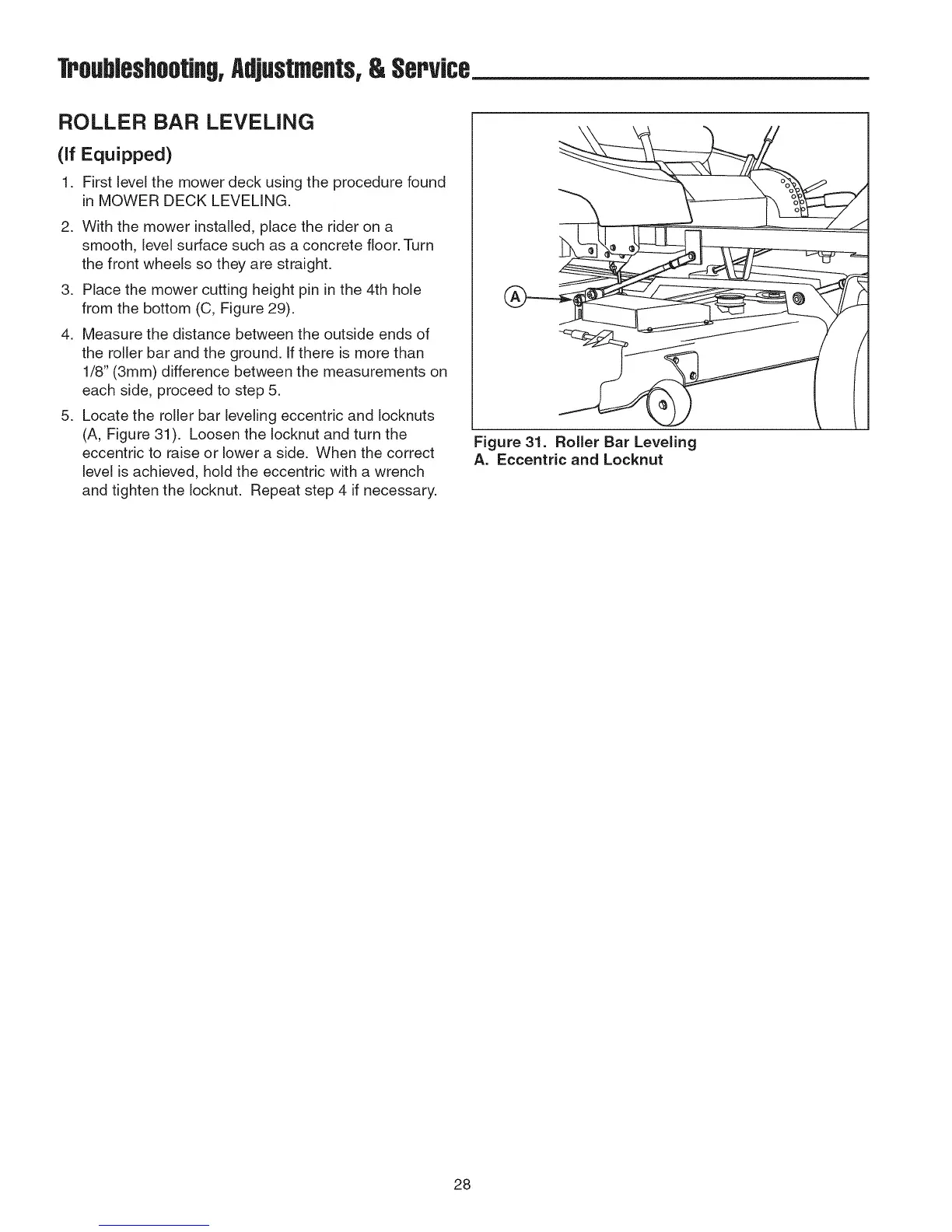

Figure 31. Roller Bar Leveling
A. Eccentric and Locknut
