Installation
Instructions
2000 RPM Rear PTO
Mfg. No.
1692891
For Legacy / 2000 / 2900 Series Garden Tractors

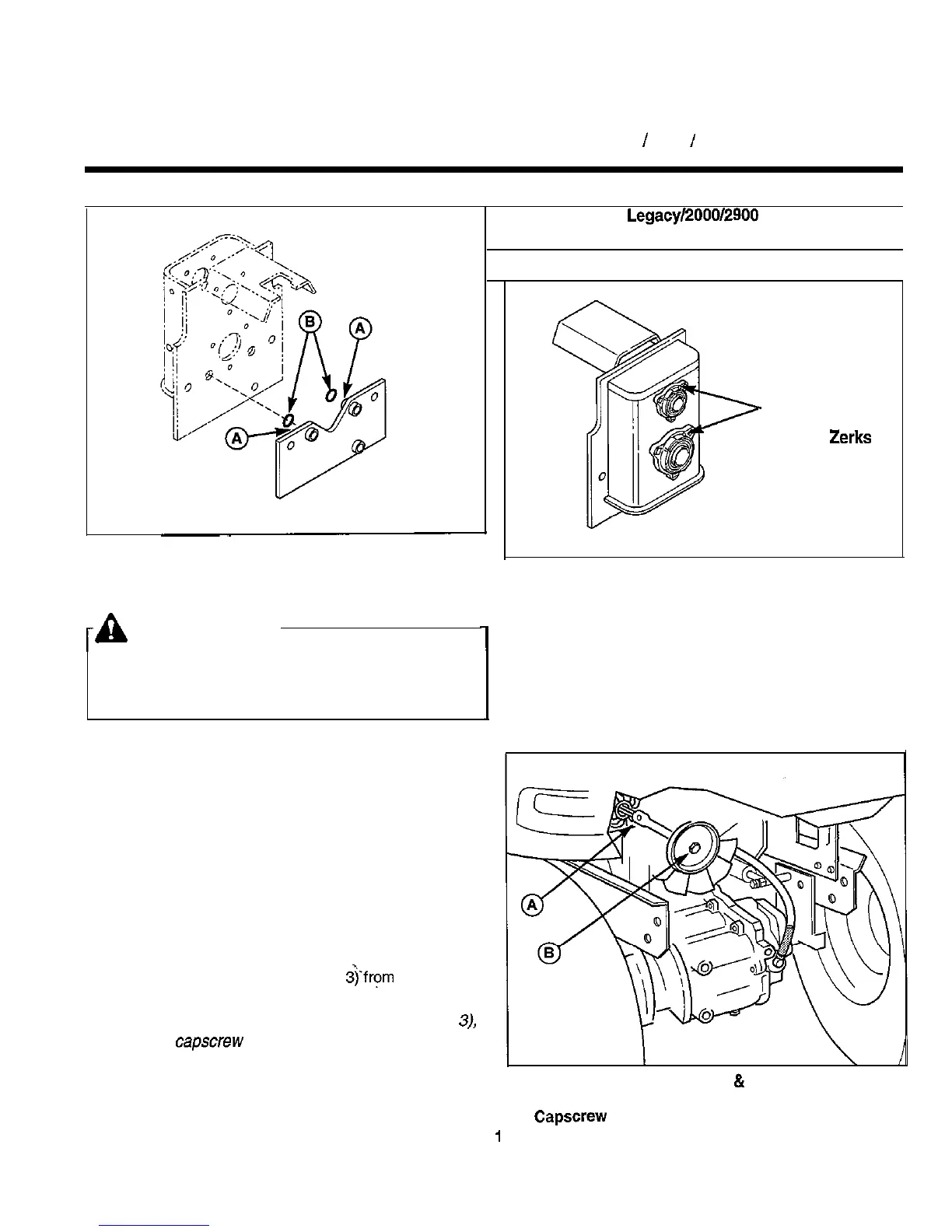

Figure 1. Install O-Rings
A. Mounting Plate Alignment Pins
B. O-Rings
,A
WARNING
Before beginning installation, engage the parking
brake, shut the PTO off, turn the ignition off, and
remove the key.
ASSEMBLY
1. Install the two o-rings (B, Figure 1) on the mounting
plate alignment pins (A)
2. Grease the front and back bearing grease zerks
(see Figure 2).
This kit equips
Legacy/2000/2900
Series tractors
with a 2000 RPM rear PTO.
I
Figure 2. Grease Bearings
Grease Front
and Back
Bearing
Grease Zerks
INSTALLATION
install PTO Box
1. Remove the rear bumper and mounting hardware.
2. Remove the set screw (A, Figure
*from
the hydro
pump shaft and fan assembly.
NOTE: For easier access to the set screw (A, Figure 3),
remove the
capscrew
(B, Figure 3) retaining the fan, and
remove the fan.
3. Remove the fan and shaft assembly from the output
Figure 3. Remove Hydro Fan
&
Shaft Assembly
shaft.
A. Setscrew
B.
Capscrew
1
