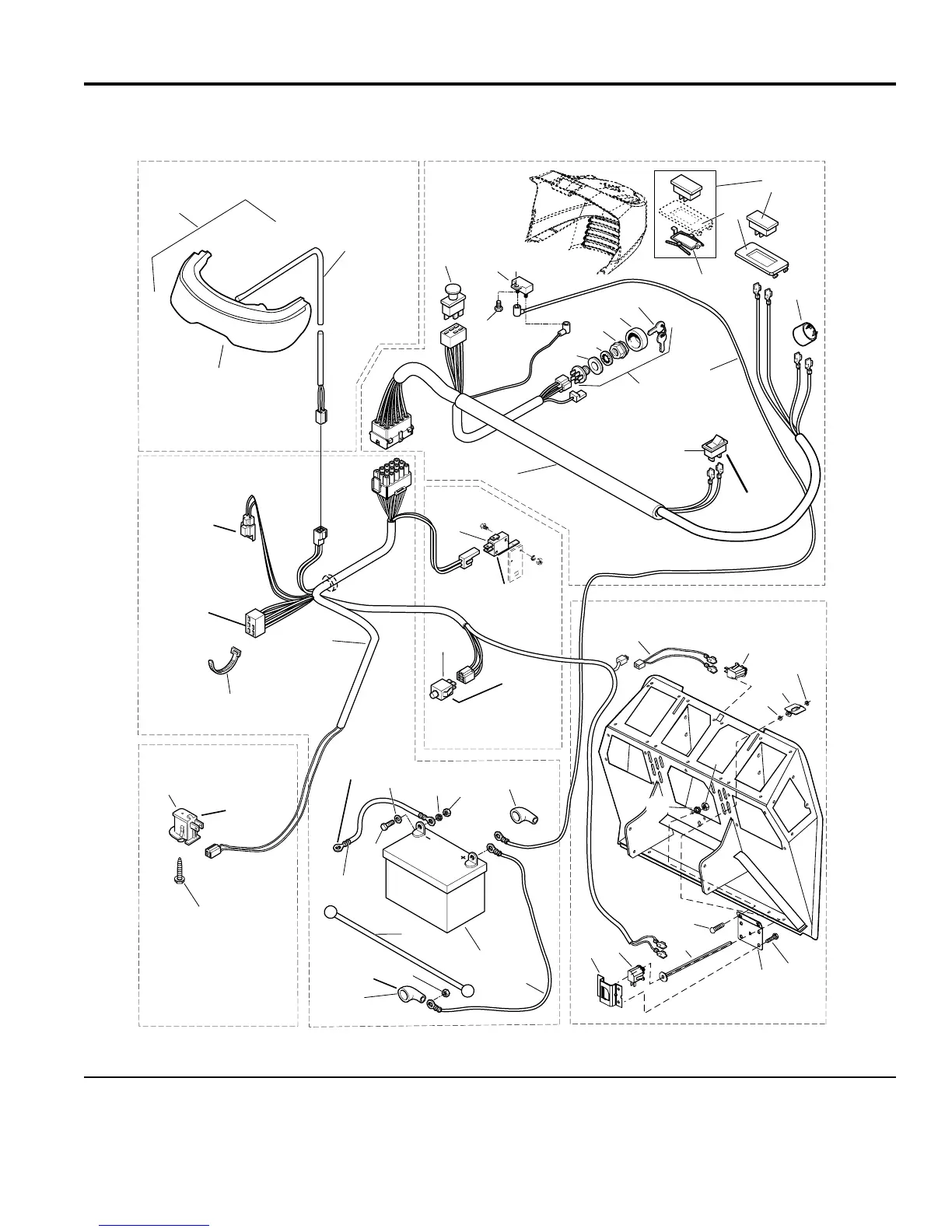

Simplicity Baron 2400 Series User Manual

Electrical Group - 16HP Honda
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Cruise
Switch
See Controls Group
for Mounting Hardware
To Engine
Starter
Headlight
Switch
DASH MOUNTEDHOOD MOUNTED
UNDER HOOD
UNDER COLLECTOR
UNDER
FRAME
Pedal
Switch
To Electric
Clutch
To Engine
UNDER SEAT DECK
Seat
Switch
(NC)
To Engine
Ground
Under RH Foot Rest
See Hood, Grill & Dash
Group
10
17
6
9
16
7
11
8
36
20
22
28
24
19
21
27
23
26
35
37
33
41
34
36
40
32
31
43
38
39
1
4
44
2
5
3
20
30
42
19
25
18
15
37
29
12
1012
14
13
986217
The above parts group applies to the following Mfg. Nos.:
2003
34
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694315 - Baron
TP 400-3764-02-BR-SM
