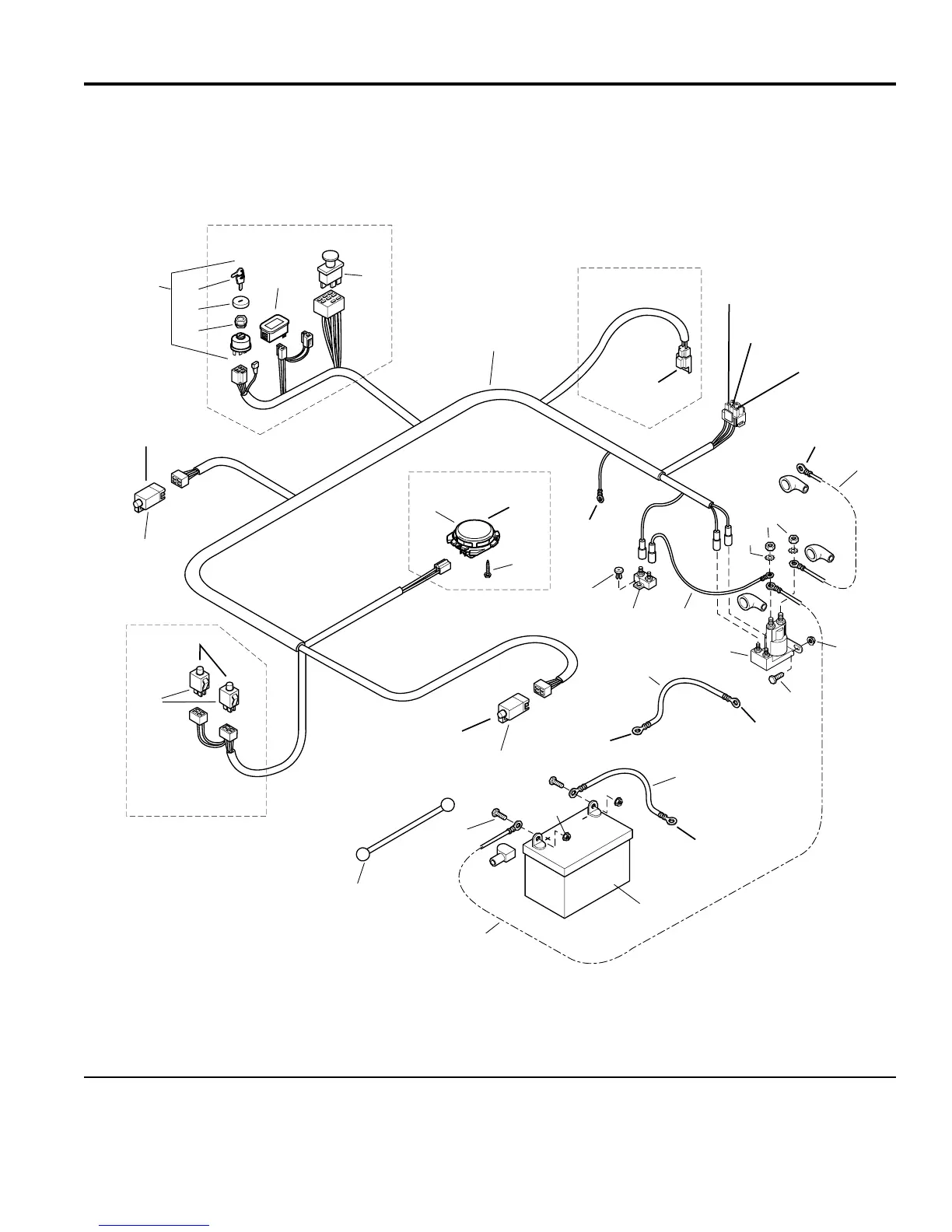

Simplicity Champion User Manual

Electrical Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
To Engine
Starter
Seat
Switch
(NC)
To Electric
Clutch
To Charge
Circuit
To Fuel
Shut-Off
To Engine
Magneto
To Engine
Ground
LH Control
Lever Switch
(See Motion Control Group
for Mounting Hardware)
RH Control
Lever Switch
(See Motion Control Group
for Mounting Hardware)
Brake Switches
UNDER SEAT DECK
UNDER CONTROL PANEL
UNDER KICKPLATE
UNDER ENGINE
DECK
To Chassis
Ground Bolt
To Chassis
Ground Bolt
To Chassis
Ground Bolt
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
18
22
17
23
25
24
24
FI0021
The above parts group applies to the following Mfg. Nos.:
2003
30
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694454 - Cham
p
ion
1694455 - Champion
1694458 - Cham
p
ion
1694460 - Cham
p
ion
TP 400-3887-01-CH-S
