Simplicity Javelin TP 400-4284-01-HZ-S User Manual

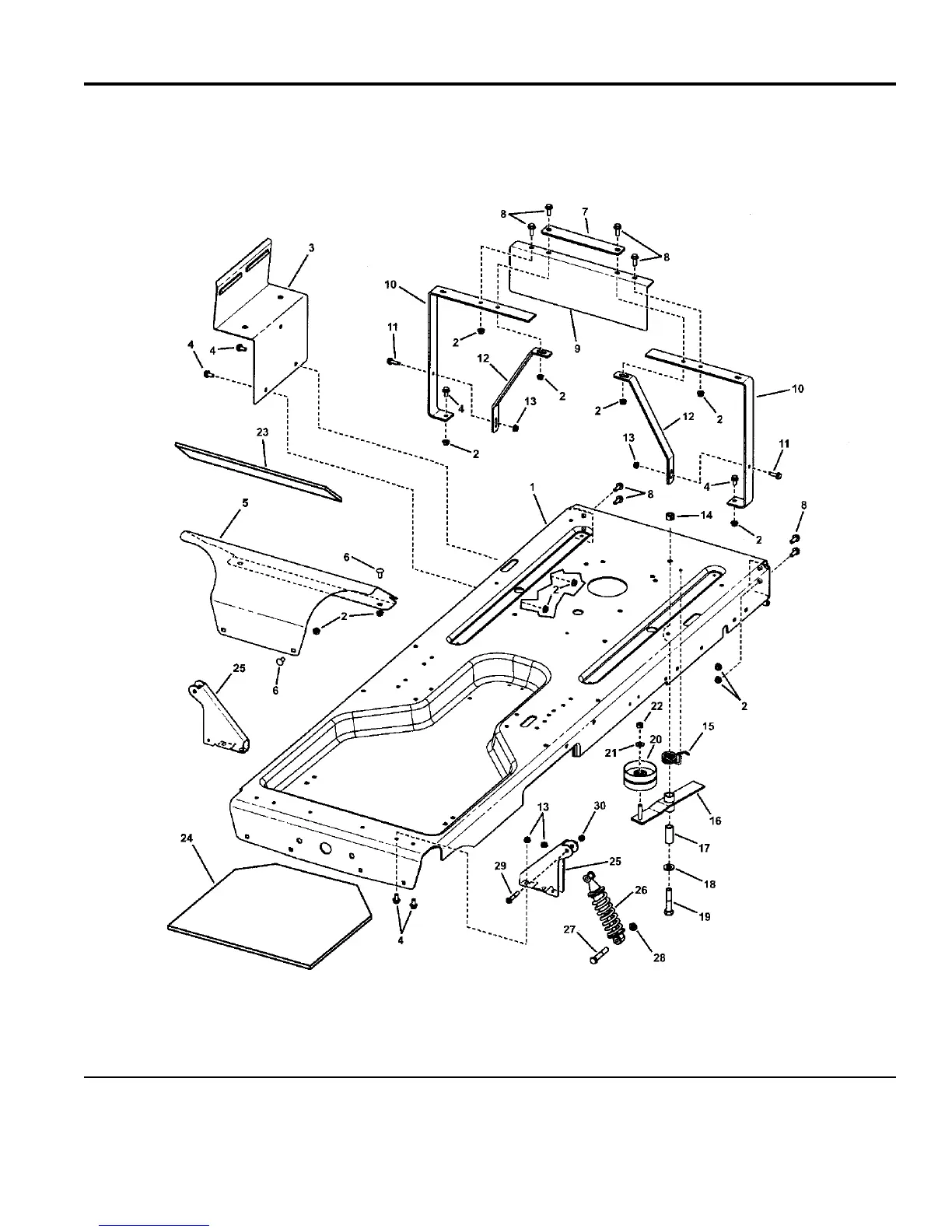

Frame Group - Sub-Assembly
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
javframe
The above parts group applies to the following Mfg. Nos.:
4
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690474 - Javelin
2690475 - Javelin
2690476 - Javelin
7800071 - Javelin
TP 400-4284-01-HZ-S

Simplicity Javelin TP 400-4284-01-HZ-S Specifications

General

Brand	Simplicity
Model	Javelin TP 400-4284-01-HZ-S
Category	Lawn Mower
Language	English
