Singer 14 U44B/244B - Seam Guide Lines

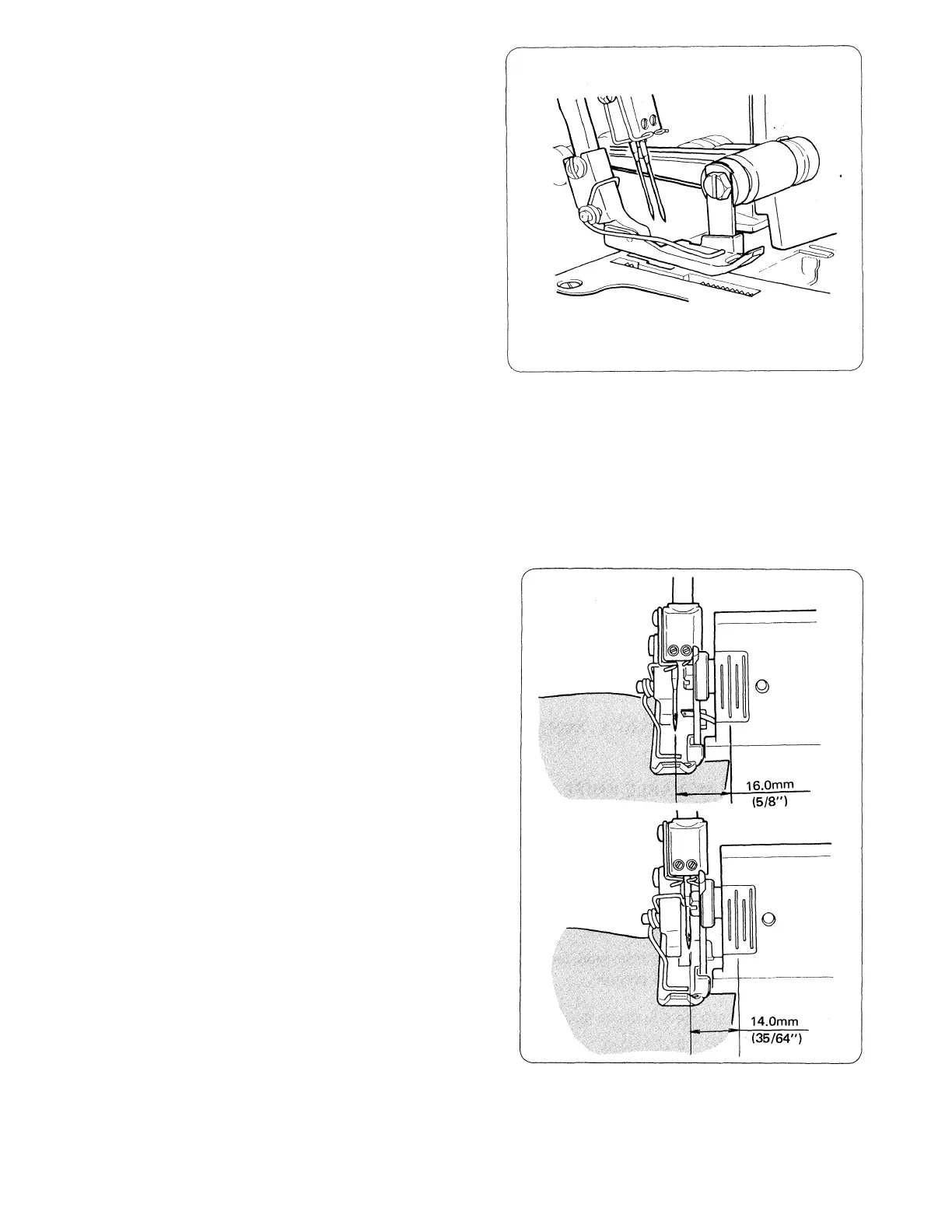

* TO PLACE MOVABLE KNIFE IN
WORKING POSITION
* Open looper cover and push the movable knife
holder to the right as far as it will go.
* Turn the knob up and toward you until the knife
clicks into the operating position.
Caution: Always close looper cover before operating
machine.
18. SEAM GUIDE LINES
* When the l^ft needle is inserted, the thick line on
the left of the looper cover is 16.0mm (5/8 inch).
* When sewing with the right needle, the thick line
on the left of the looper cover is 14.0mm (35/64
inch).
Note: All lines are 2.0mm (5/64 inch) apart.
24
